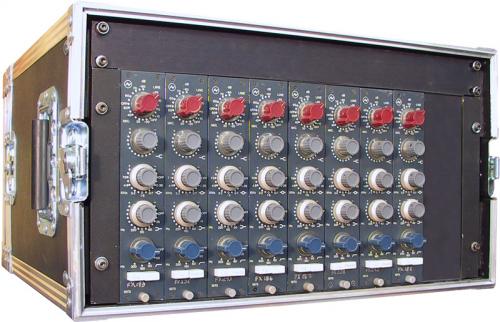

8 channels of Neve 1073

The 1073 preamp is possibly the world's most desirable and famous preamp. Originally fitted to the custom console for Wessex A88, the module was used extensively during the 1970's on standard Neve recording consoles such as 8014. This hand built Class module offers 3 bands of EQ with one fixed high frequency band and two switchable bands with cut and boost

Neve Channel Amplifiers are designed to accept signals from microphone and line sources. Low noise and distortion and generous overload performance are important features of these amplifiers. These modules are the same as the original designs and contain all of the original components. These very popular sounding mic pre's are considered by many to capture the very essence of the legendary Neve sound.

Features

¤ Classic transformer mic amp.
¤ 3 EQ bands.
¤ Hand crafted to original 1970 design.
¤ HP filter.
¤ Neve designed hand wound transformers.
¤ Both inputs are transformer balanced and earth free.
¤ Microphone Input: Gain 80dB to 20dB in 5dB steps.
¤ Line Input: Input impedance 10,000Ω bridging, gain 20dB to -10dB in 5dB steps.
¤ Output: Maximum output is > 26dBu into 600Ω.
¤ Output is transformer balanced and earth free.
¤ Distortion: Not more than 0.07% from 50Hz to 10kHz at 20dBu output.
¤ (80kHz bandwidth) into 600Ω.

Freq Response: /-0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
