Neutrik OSC8M
UPC/EAN #7613187004490
MPN #OSC8M

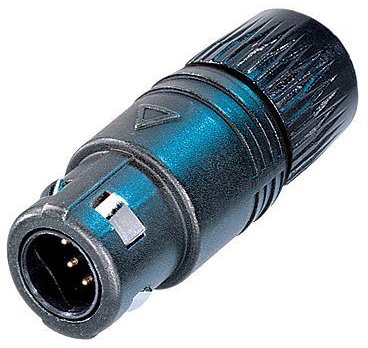

The Neutrik OSC8M is a 8 pole male cable connector, chuck type strain relief, solder contacts, 180 coding, black housing
The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.
Features
Contact configuration can be selected from 1 to 8 contacts.Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts.Precise and robust all metal housing.Push-pull self-locking system.
Specifications
Connection Type: neutriCON
Gender: male
Electrical
Contact resistance: 5 m
Dielectric strength: 1,5 kVdc
Insulation resistance: > 0.5 G (after damp heat test IEC 68-2-30)
Rated current per contact: 7,5 A
Rated voltage: < 50 V
Mechanical
Cable O.D.: 3 - 7 mm
Cable retention: > 50 N
Insertion force: < 25 N
Lifetime: > 1000 mating cycles
Wiresize: 1 mm²
Wiresize: 18 AWG
Wiring: Solder contacts
Locking device: Push-Pull
Material
Contact plating: 0.3 µm Au hard alloy over 2 µm Ni
Contacts: Brass (CuZn35Pb2)
Insert: PBTP 15 % GR
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)
Environmental
Flammability: UL 94 HB
Protection class: IP 5X
Solderability: Complies with IEC 68-2-20
Temperature range: -30 C to +80 C
