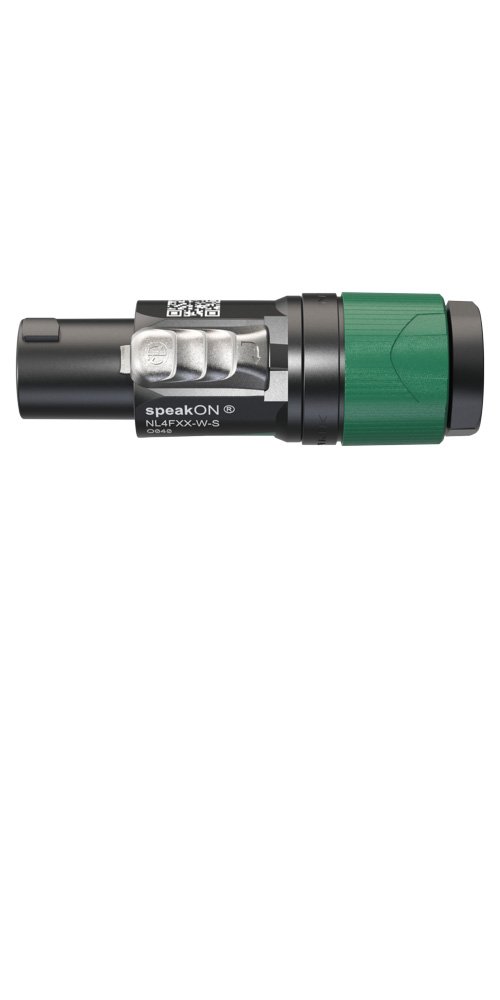

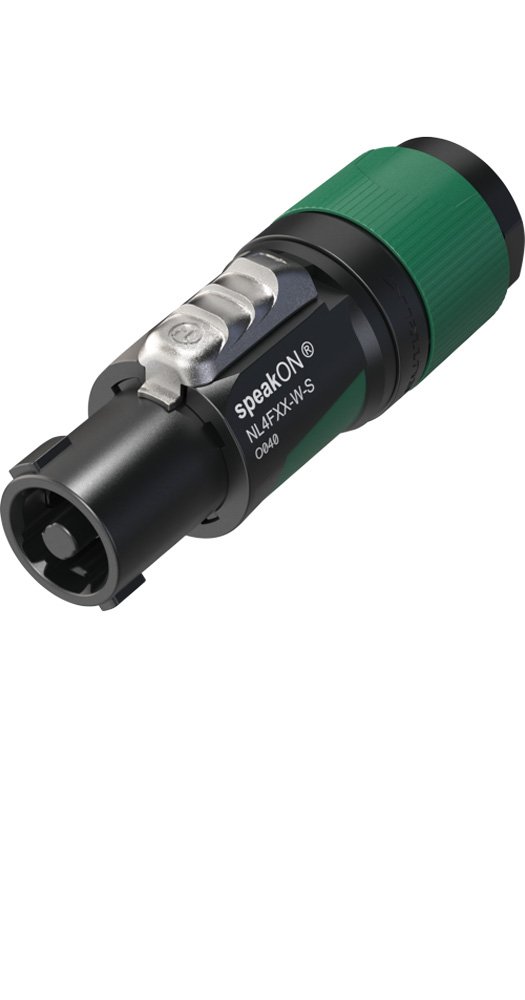

Neutrik NL4FXX-W-S

MPN #NL4FXX-W-S

$8.89

Be the first to write a review

Free shipping in Canada for orders over $200

4 pole speakON cable connector with screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Features

Up to 37 A rms current rating

Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mmIEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1

Superior NEUTRIK quality standard, extremely robust and reliable

Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing

Easy and reliable twist lock system

Ergonomic design with slip-proof two-component molded housing

Improved kink protection by two-component bushing

Specifications

Connector series: speakON 4 pole
Contact resistance: ? 2 m?
Dielectric strength: 2.8 kVac
Insulation resistance: > 10 G? (initially)
Number of electrical contacts: 4
Rating Europe: IEC 61984: 37 A 250 V AC
Rating USA: UL1977: 35 A 250 V AC
Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
