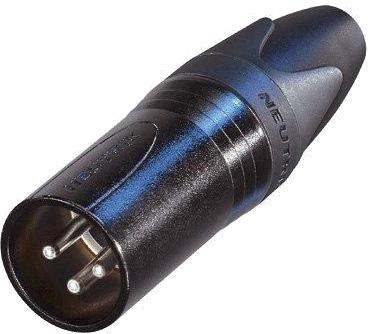

Neutrik NC3MXX-BAG

MPN #NC3MXX-BAG

$7.70

Be the first to write a review

Free shipping in Canada for orders over $200

Three-pole XLR male, black metal shell, silver contacts, latch lock, solder terminals, zinc diecast housing, strain relief boot, durable design, IP40 rated

The NC3MXX-BAG is a 3-pole male XLR connector featuring a black zinc diecast housing and silver-plated contacts. As the successor to the industry-standard X series, it offers greater reliability, easier assembly, and improved contact integrity while ensuring excellent cable strain relief.

Its improved chuck-type strain relief provides higher pull-out force and secure cable retention for diameters between 3.5"8.0 mm. A polyurethane boot protects against bending stresses, while the rugged zinc diecast shell with a black KTL finish ensures long-lasting durability. With over 1000 mating cycles, low contact resistance (<= 3 m ohm), and compliance with IEC 61076-2-103 standards, it's an ideal choice for professional audio applications.

Features

Reliable Male XLR Connector: Built for professional audio with solid contact performance and secure cable connection.

Black Metal Housing: Rugged zinc diecast shell with black KTL coating delivers a sleek look and long-lasting durability.

Silver-Plated Contacts: Features silver contact plating for excellent conductivity and signal integrity in critical audio setups.

Secure Latch Lock: Improved locking mechanism without a side window enhances mechanical strength and reliability.

Efficient Strain Relief: Chuck-type strain relief and polyurethane boot help protect against cable pull and bending stress.

Easy to Assemble: Internal shell threads and ergonomic design simplify the assembly process.

Compatible with Various Cables: Supports cable outer diameters from 3.5 mm to 8.0 mm and wire sizes up to 14 AWG.

Color Coding Ready: Works with optional colored rings and boots for fast channel or system identification.

Specifications

General Specifications:

Product name: NC3MXX-BAG

Connector type: 3-pole XLR cable connector

Gender: Male

Housing: Black KTL-coated zinc diecast

Contact plating: 2 micrometers silver

Contact material: Brass (CuZn39Pb3)

Shell coating: Black KTL

Locking device: Latch lock

Wiring type: Solder contacts

Lifetime: Greater than 1,000 mating cycles

Compliance: IEC 61076-2-103

Electrical Specifications:

Capacitance between contacts: Less than or equal to 4 picofarads

Contact resistance: Less than or equal to 3 milliohms

Dielectric strength: 1,500 volts DC

Insulation resistance: Greater than 10 gigaohms (initial)

Rated current per contact: 16 amperes

Rated voltage: Less than 50 volts

Mechanical Specifications:

Cable outer diameter compatibility: 3.5 millimeters to 8.0 millimeters

Insertion force: Less than or equal to 20 newtons

Withdrawal force: Less than or equal to 20 newtons

Maximum wire size: 2.5 square millimeters

Maximum wire size: 14 American Wire Gauge

Strain relief: Chuck type with polyacetal construction

Material Specifications:

Boot material: Polyurethane

Insert material: Polyamide (PA66)

Locking element material: Zinc diecast (ZnAl4Cu1)

Shell material: Zinc diecast (ZnAl4Cu1)

Shell coating: Black KTL

Strain relief material: Polyacetal (POM)

Environmental Specifications:

Flammability rating: UL 94 V-0

Protection class: IP 40

Operating temperature range: minus 30 degrees Celsius to plus 80 degrees Celsius

Solderability standard: Complies with IEC 68-2-20
