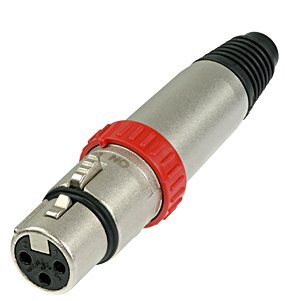

Neutrik NC3FX-S

MPN #NC3FX-S

$25.00

Be the first to write a review

Free shipping in Canada for orders over $200

The NC3FX-S is a 3 pole female cable connector, Nickel housing.

FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.

Features

Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3

For use on a microphone without switch

Rugged zinc diecast shell, long lasting and durable

Rugged metal boot

Chuck type strain relief system for secure clamping of cables

Boot with rubber gland gives high protection against bending stresses

Specifications

Title: NC3FXS
Connection Type: XLR
Gender: female

Electrical
Capacitance between contacts: 4 pF
Contact resistance: 3 m
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 G (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V

Mechanical
Cable O.D.: 3.5 - 7.0 mm
Insertion force: 20 N
Withdrawal force: 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock

Material
Boot: Polyurethan
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: St3K32 (latch) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)

Environmental
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range :-30 C to +80 C
