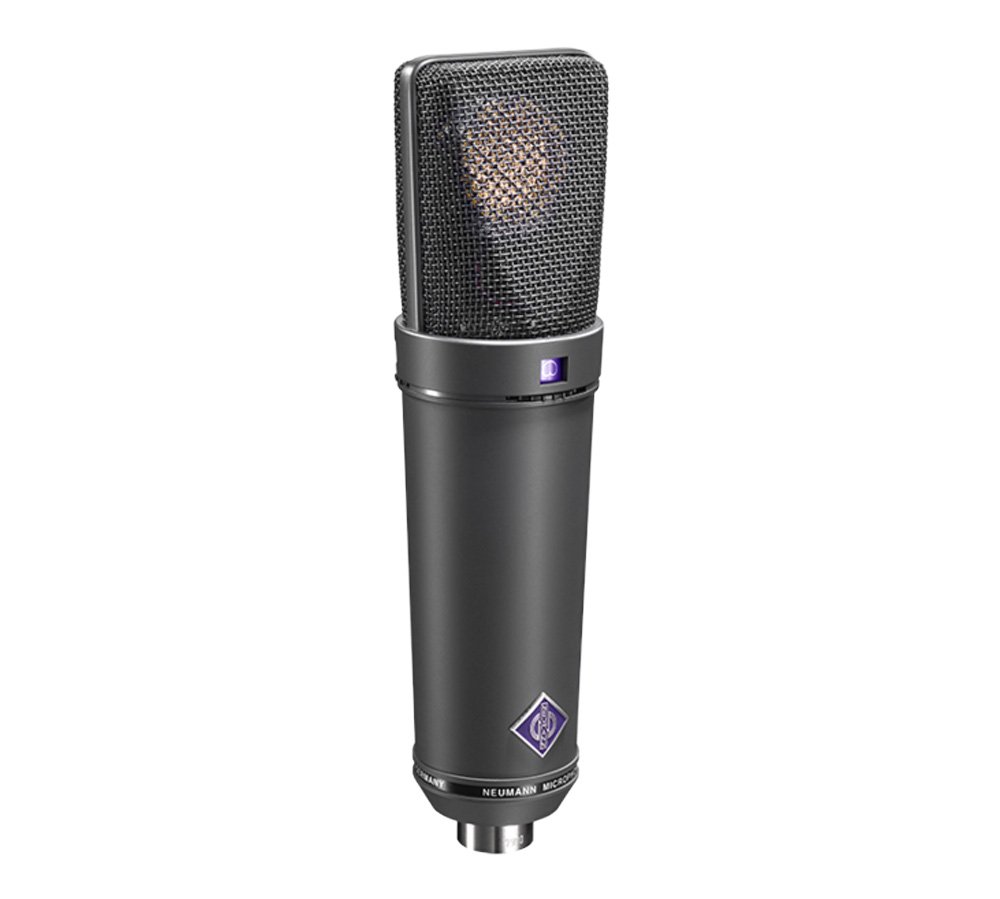

Neumann U 89 I MT
MPN #006450
$4275.00
Save 20.3%, MSRP $5364.00

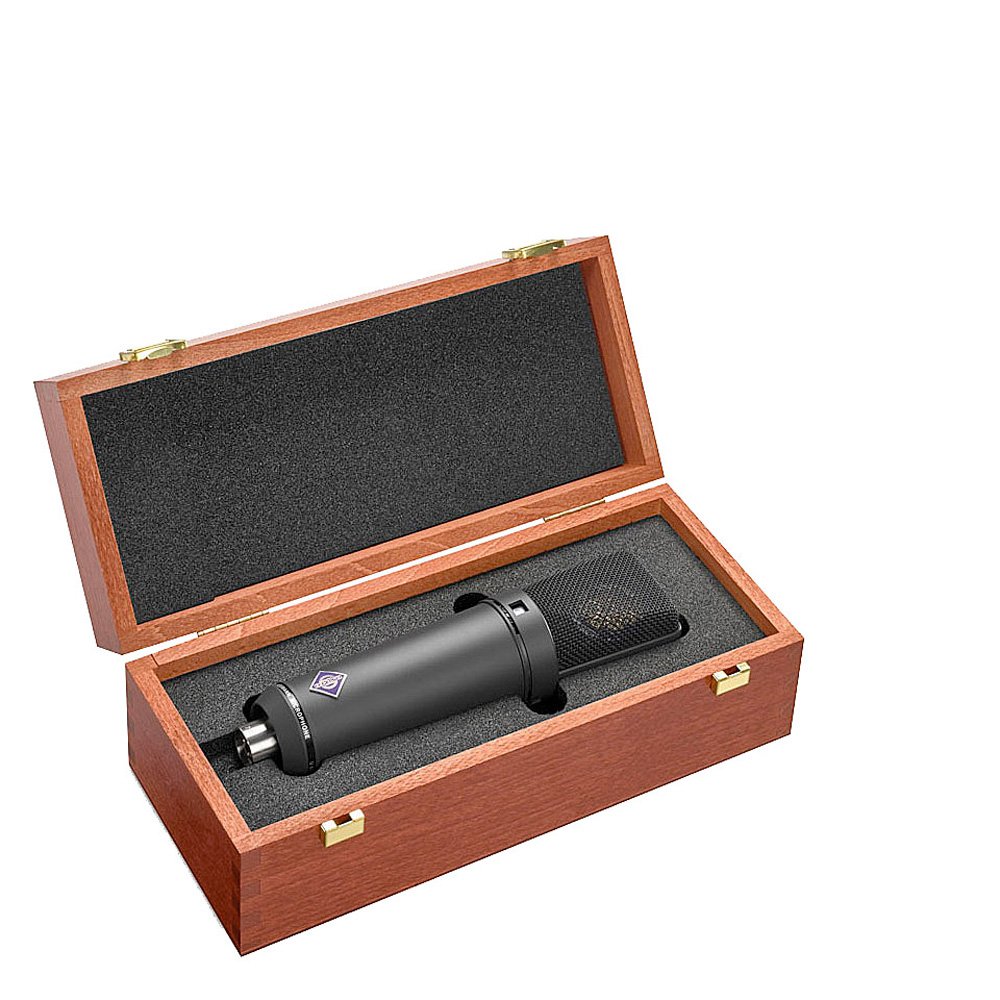

Multi-pattern mic with K 89 capsule, five patterns, pad, filter, in woodbox

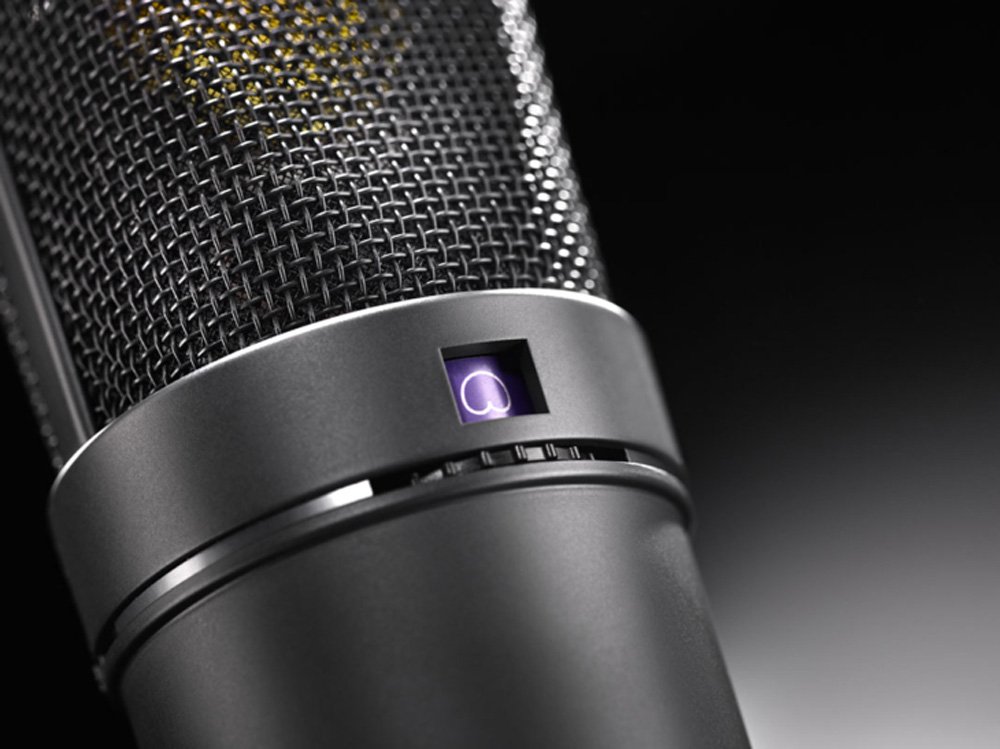

The U 89 is a studio microphone for universal applications. The headgrille protects a dual-diaphragm capsule. A rotary switch below the headgrille selects from five different polar patterns. Therefore the microphone can be adapted easily to large sound sources, and those that are spread wide apart, or to sound sources to be recorded at a greater distance.
The amplifier accepts sound pressure levels up to 134 dB without distortion. This figure can be increased to 140 dB. An additional rotary switch activates a filter that changes the low frequency response either below 80 Hz or 160 Hz frequency.
Applications
The U 89 i is similar in appearance to the U 87. It is of smaller size, and lighter weight. It features five instead of three directional characteristics and a higher maximum sound pressure level which make this microphone easier adaptable to different applications.
Polar patterns
In addition to the usual directional polar patterns: omnidirectional, cardioid, and figure-8, we have added a hypercardioid and wide-angle cardioid characteristic. When compared to the standard cardioid pattern, the hypercardioid characteristic suppresses sound from the side more efficiently. The wide-angle polar pattern is especially useful to record large sound sources.
Acoustic features
The microphone is addressed from the front, marked with the Neumann logo. The large diaphragm capsule has a very smooth frequency response for all polar patterns over a wide acceptance angle. The frequency response curves are flat up to 10 kHz within a pickup angle of ± 100°.
As a result the U 89 i has a very even diffuse-field response for all polar patterns. This is important in a reverberant environment when more reflections arrive at the microphone capsule. The acoustic information is not affected in its tonal quality when recorded by the microphone.
This characteristic is achieved without resorting to corrective resonance effects.
The capsule it is elastically mounted to avoid any structure borne noise that could interfere with its operation.
Filter and attenuation
The amplifier handles sound pressure levels up to 134 dB without distortion. With a self noise level of 17 dB (A-weighted) the total dynamic range is 117 dB. Maximum sound pressure level is 140 dB when the - 6 dB rotary switch is in the ON position.

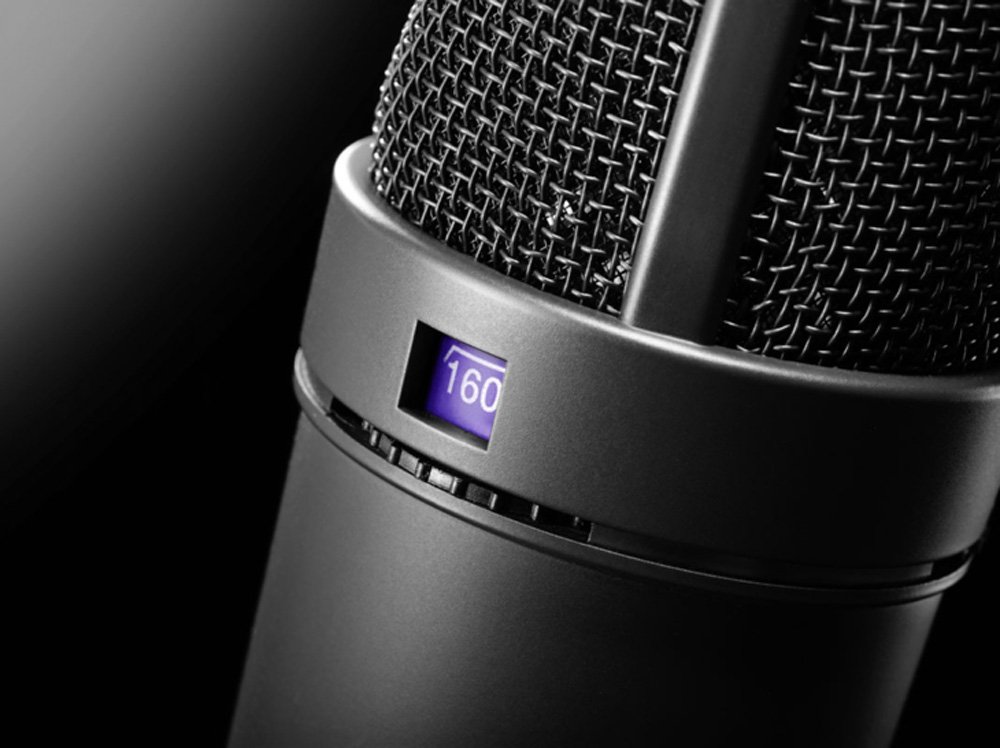

A low frequency roll-off at 80 Hz or 160 Hz can be activated with another rotary switch below the headgrille. This filter suppresses low frequency interference, yet maintains an even frequency response for close-up sound sources, for example, when proximity effect could adversely affect the program material.
A steep high-pass filter in the LIN position prevents the output transformer of the microphone from being overloaded due to undesired subsonic frequencies.
Operational safety
All exposed surfaces of the microphone capsule, including the diaphragms, are at ground potential. This technology makes them highly immune to electrical and atmospheric interference and contamination through microscopic dust particles.
Features
Variable large diaphragm microphonePressure-gradient transducer with double membrane capsuleFive directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8Thereby most versatile in all recording situationsTwo-stage roll-off filterSwitchable 6 dB pre-attenuationExtended frequency range in comparison to U 87 Ai
Specifications
Acoustical operating principle : Pressure gradient transducerDirectional pattern : Omnidirectional, wide angle, cardioid, hypercardioid, figure-8Frequency range : 20 Hz ... 20 kHzSensitivity at 1 kHz into 1 kohm : 8 mV/PaRated impedance : 150 ohmsRated load impedance : 1000 ohmsEquivalent SPL CCIR 468-3 : 28 dBEquivalent SPL DIN/IEC 651 : 17 dB-AS/N ratio CCIR 468-3 : 66 dBS/N ratio DIN/IEC 651 : 77 dBMaximum SPL for THD 0.5% : 134 dBMaximum SPL for THD 0.5% with preattanuation : 140 dBMaximum output voltage : 800 mVDynamic range of the microphone amplifier DIN/IEC 651 : 117 dBSupply voltage : 48 V ± 4 VCurrent consumption : 0.8 mAMatching connector : XLR 3FWeight : 400 gDiameter : 46 mmLength : 185 mm
