Neumann Monitor Alignment Kit 1
UPC/EAN #615104355941
MPN #509134
$2475.00
Save 20%, MSRP $3094.00

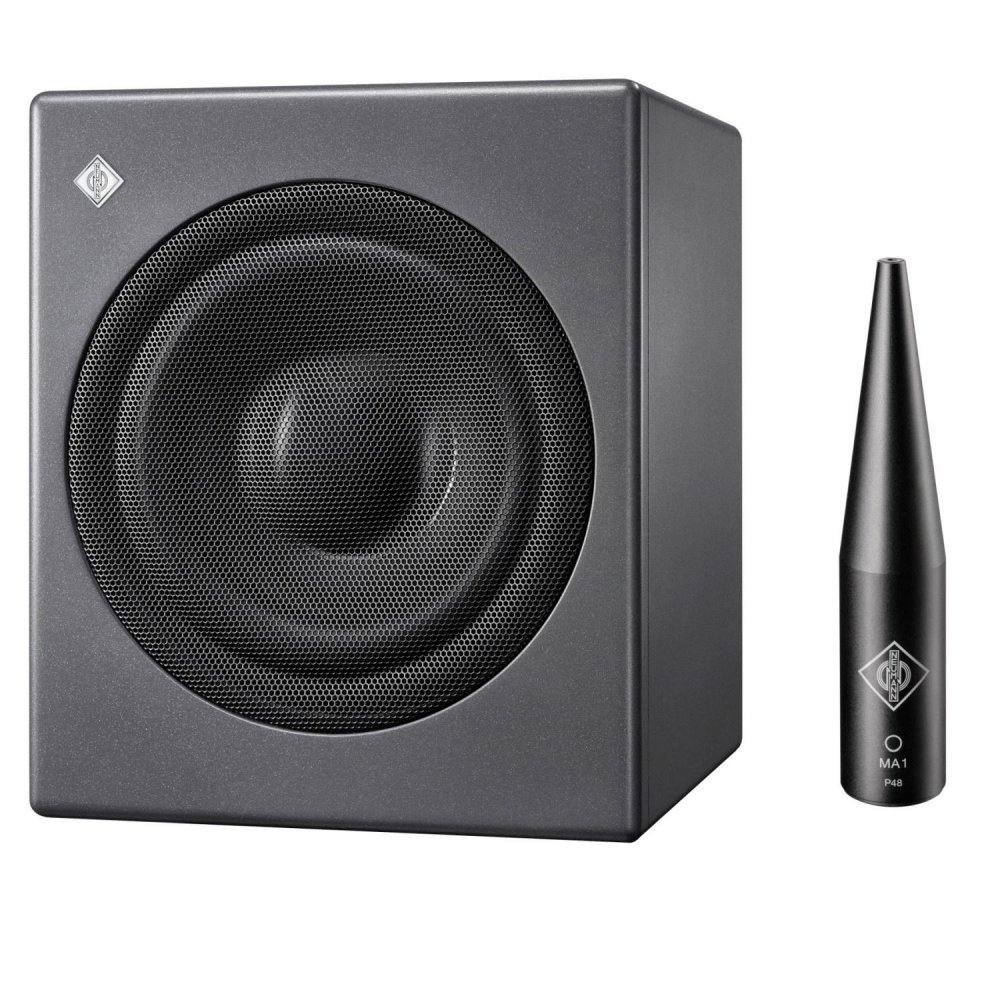

Monitor Alignment kit with one MA 1 and one KH 750 DSP
The Beginning of a New Era in Monitoring
Algorithms derived from decades of experience in aligning monitors

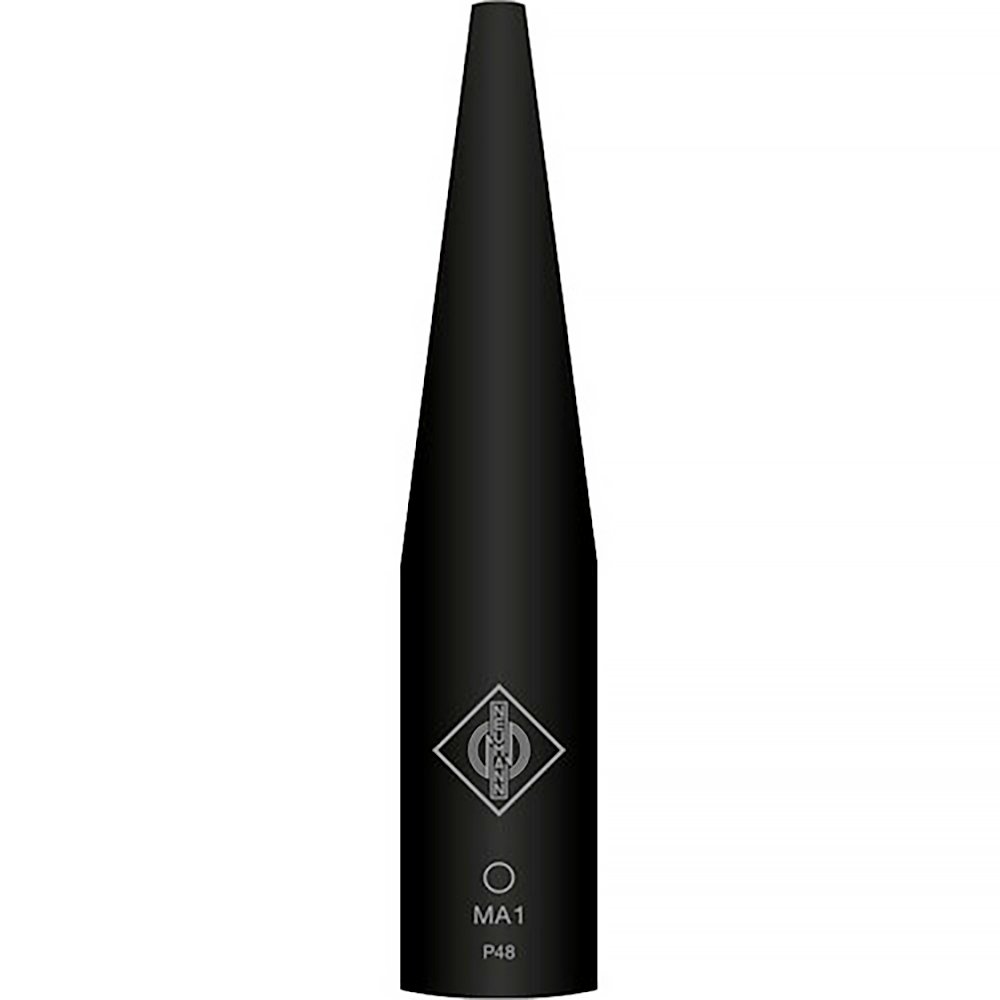

Individually calibrated measurement microphone
Room adaptive target curve
For stereo setups with network-enabled Neumann monitors and any analog Neumann monitors using KH 750 subwoofers
For multichannel setups with Multichannel Extension license
For Mac and PC
Important Information
Please note:
After the alignment process, the MA 1 software stores the correction data in the monitors or in the subwoofer. In addition, both the hardware setup and the alignment(s) created are saved in the software and can be changed later if required. Another continuous connection to the computer is only required if the loudspeaker setup is to be controlled via the MA 1 during operation. This includes level settings, bass management (if a subwoofer is connected) and setup or alignment changes.
Therefore, no Ethernet connection to the computer is required for further operation of the aligned system. Currently, the data stored in the loudspeaker(s) cannot be recalled or changed, once the software is closed. The calibration procedure must be started from the beginning and repeated.
The following currently applies: If the loudspeakers were previously adjusted using the Neumann.Control iPad app, their correction data will be overwritten by an alignment with the MA 1 software. If you open the Neumann.Control iPad app again, the last data stored in the app is sent to the loudspeakers, thus overwriting the correction data generated by the MA 1.
Alignment settings are made via the MA 1 software. Other parameters (e.g. mute, delay ...) cannot currently be controlled by the MA 1 software.
The MA 1 software does not include Guided Alignment or Manual Alignment like on the Neumann.Control iPad app.
Features

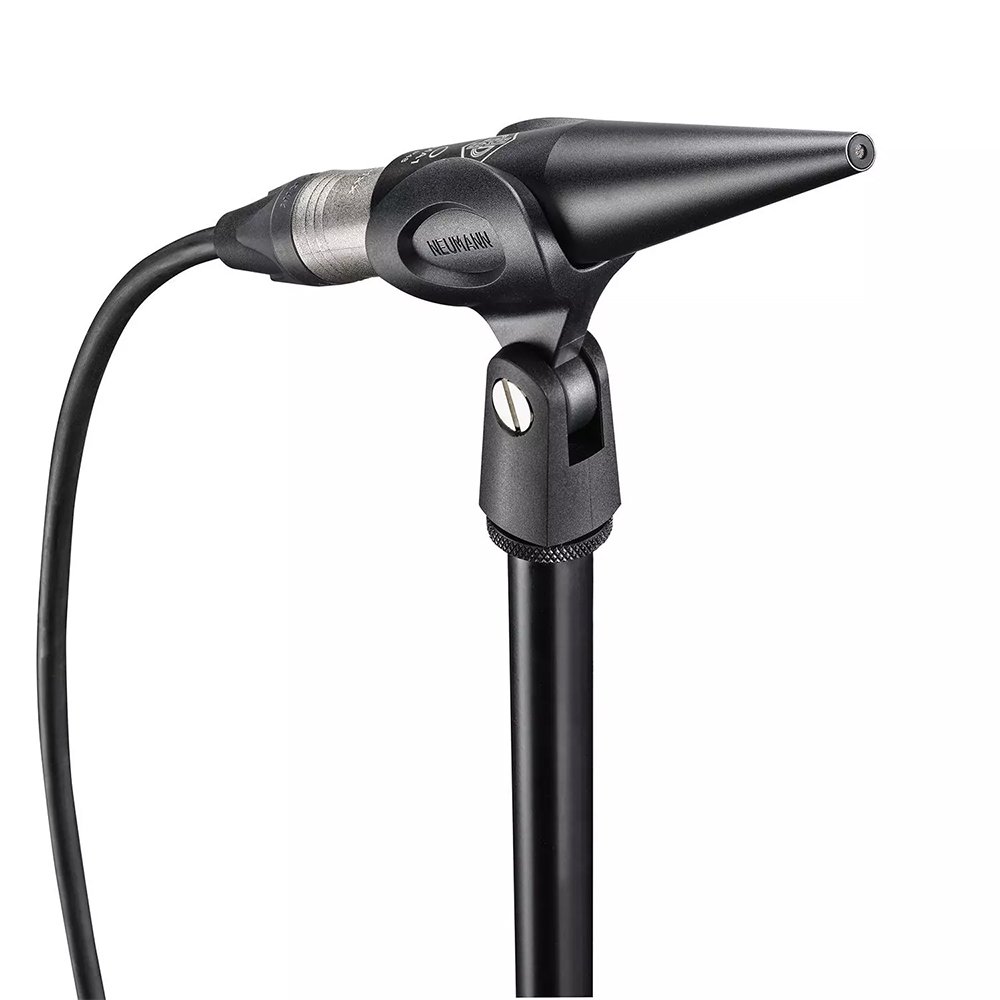

Adjusts Phase and Amplitude for RoomHelps You Get Accurate, Consistent MixesFor KH 80 DSP MonitorsFor KH 750 DSP Sub & KH-Series MonitorsOmnidirectional Calibration MicrophoneFraunhofer IIS Calibration AlgorithmsSettings Stored in DSP MonitorsIncludes SG105 Mic Clip
Specifications
Hardware requirements
Loudspeakers and subwoofers: (stereo systems)
1 pair of KH network-enabled loudspeakers or1 or 2 KH network-enabled subwoofers in combination with a pair of KH network-enabled loudspeakers or a pair of KH analog loudspeakers Note: Stereo systems may comprise Bass Management.Peripheral Equipment
Neumann MA 1 measurement microphonePC or MACScreen resolution of 1280 - 720 px or higherAudio interface with:1x balanced analog mic input with 48 V phantom power.Audio output channels equal to or greater than the number of network-enabled loudspeakers and subwoofers used in the monitoring system. Outputs may be balanced analog, S/PDIF (KH 120 II or KH 150 loudspeakers only), or AES3 (KH 750 subwoofer only).Network switch offering a number of free sockets equal to or greater than the total number of loudspeakers and subwoofers employed in the monitoring system. Each loudspeaker and subwoofer should be connected from its Primary network socket to a free socket in the network switch.Software requirements
Operating system:
PC: Windows 10/11 64 BitMac: macOS 10.15, 11, 12, 13, 14MA 1" Automatic Monitor Alignment softwareASIO driver (for Windows)
