Neumann KM 184 mt Stereo Set
UPC/EAN #615104085237
MPN #008523
$2075.00
Save 20.2%, MSRP $2599.00

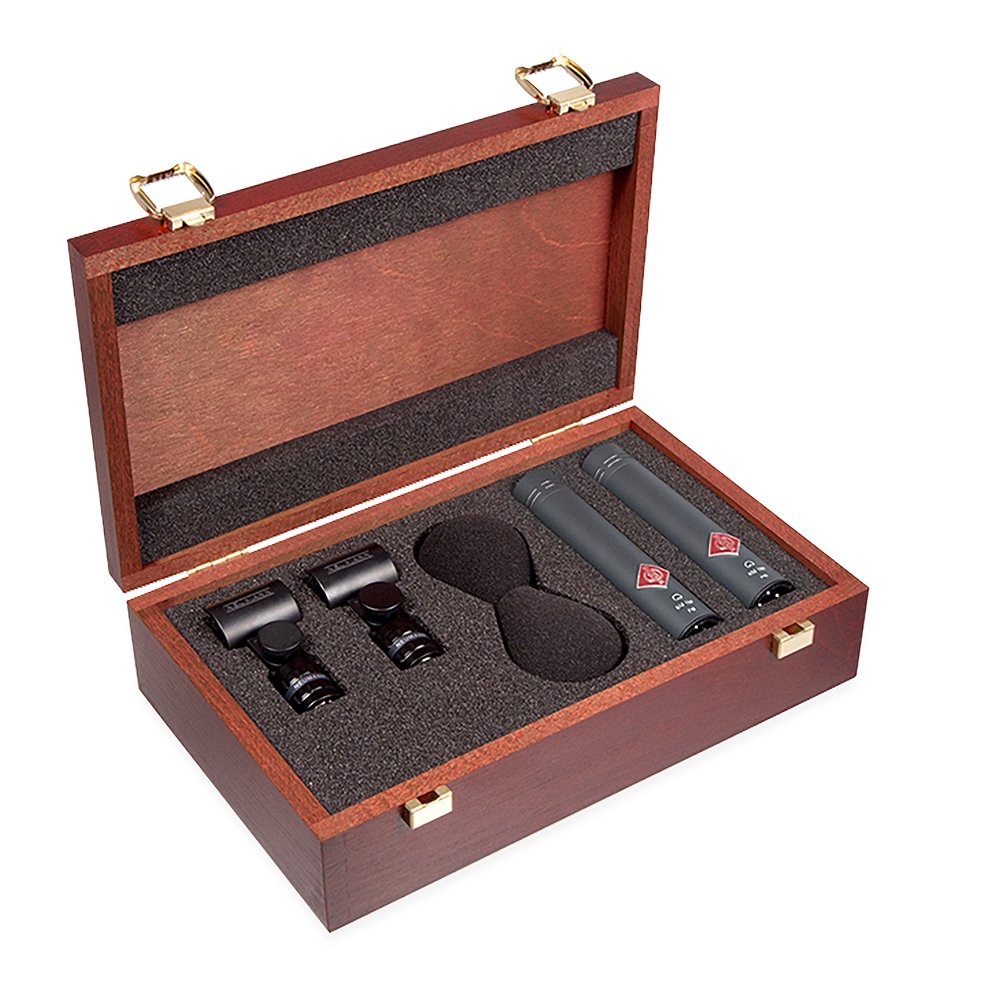

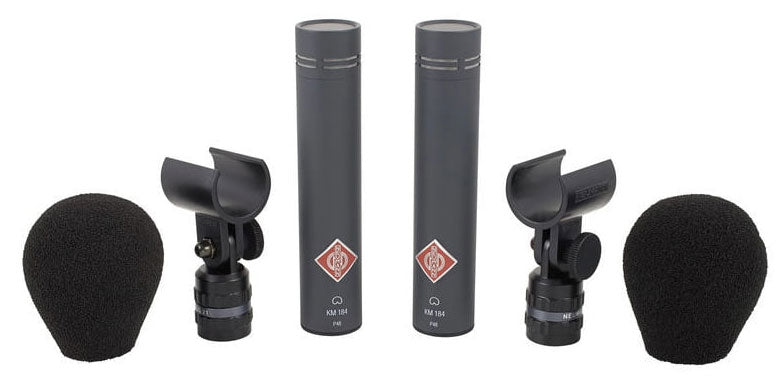

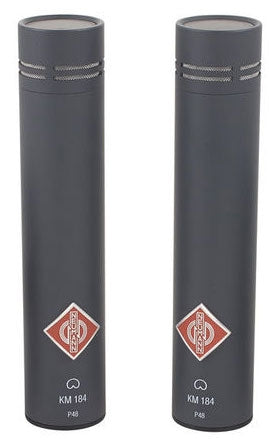

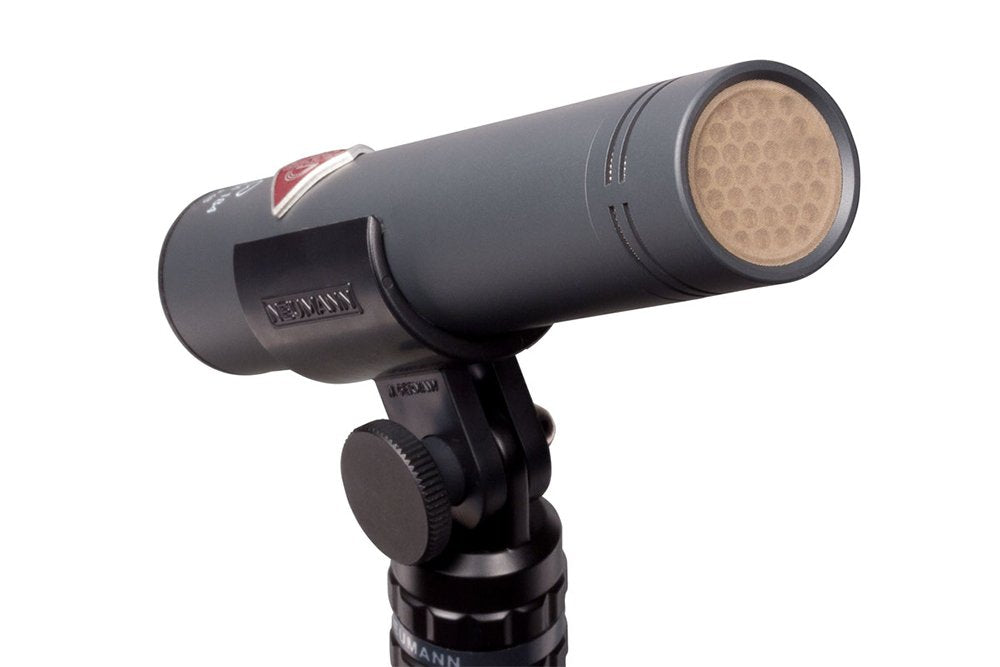

A matched pair of the famous Neumann KM 184 mt cardioid microphone offered in a wooden case with swivel clips and windscreens. Black edition of the Neumann KM 184 Stereo Set
The "Series 180" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications.
Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" is predestined for economy-minded production and home recording studios.
Applications
Their slender shapes and the transmission characteristics described below make the "Series 180" especially suitable for a very wide range of tasks in the radio and television sector.
Acoustic features
Although the KM 184 has the same capsule as the KM 84, the microphone differs slightly on the 0 frequency response: The KM 184 has a gentle rise at about 9 kHz, a characteristic that was introduced very successfully with the KM 140. The result is a tonal balance that is fresher and livelier when compared to the KM 84 with its flat frequency response in that band.
Electrical features
The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications:
Compared to the KM 84 the dynamic range of the KM 184 increased by 24 dB mainly through the reduction of self-noise level to only 22 dB (CCIR) and an increased sound pressure handlingcapability of up to 138 dB.
The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders.
The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.
Features
Three different miniature microphones for all typical studio applicationsSuccessor of the worldwide successful KM 83/84Transformerless circuitryTrouble-free operation also with unbalanced equipment (e.g., DAT recorders)Set includes windshield and two different microphone clamps
Specifications
Color: Matte BlackAcoustical operating principle : Pressure gradient transducerDirectional pattern : cardioidFrequency range : 20 Hz ... 20 kHzSensitivity at 1 kHz into 1 kohm : 15 mV/PaRated impedance : 50 ohmsRated load impedance : 1000 ohmsEquivalent SPL CCIR 468-3 : 22 dBEquivalent SPL DIN/IEC 651 : 13 dB-AS/N ratio CCIR 468-3 : 72 dBS/N ratio DIN/IEC 651 : 81 dBMaximum SPL for THD 0.5% : 138 dBMaximum output voltage : 10 dBuSupply voltage : 48 V ± 4 VCurrent consumption : 3.2 mAMatching connectors : XLR 3FWeight approx. : 80 gDiameter : 22 mmLength : 107 mm
