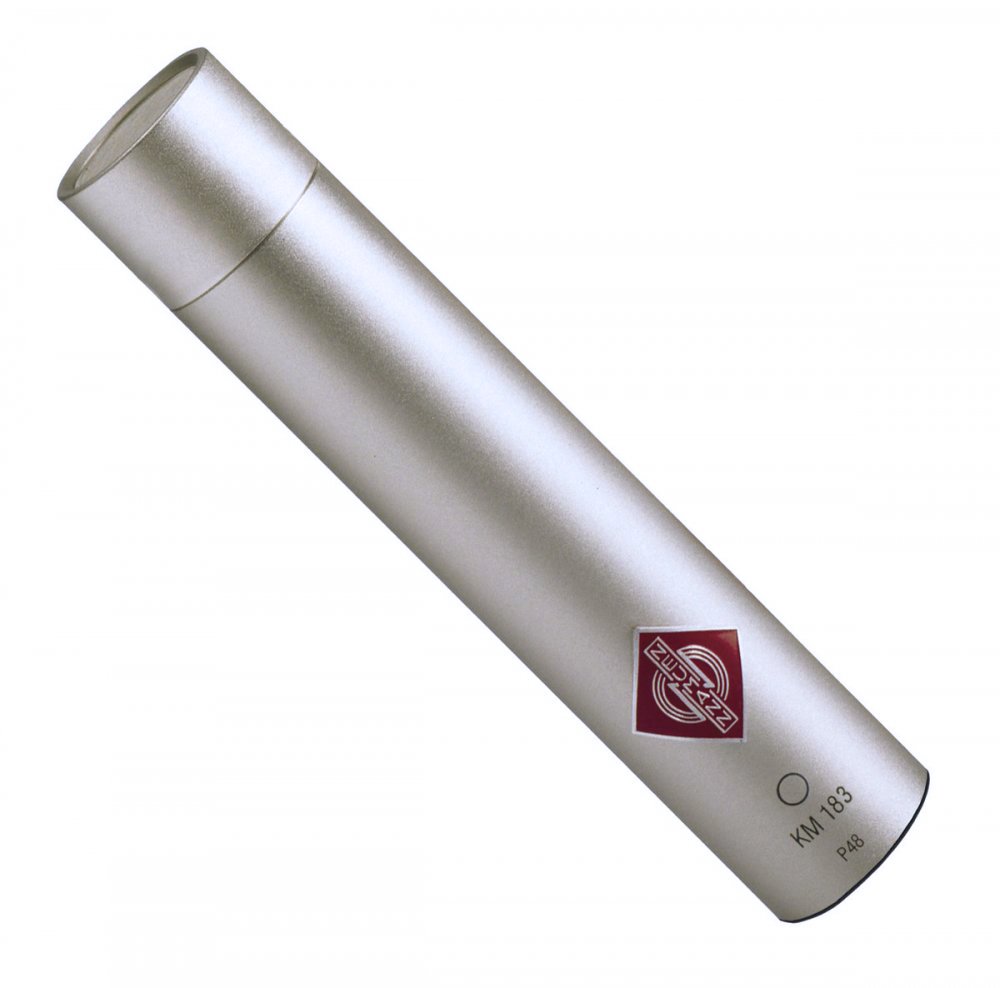

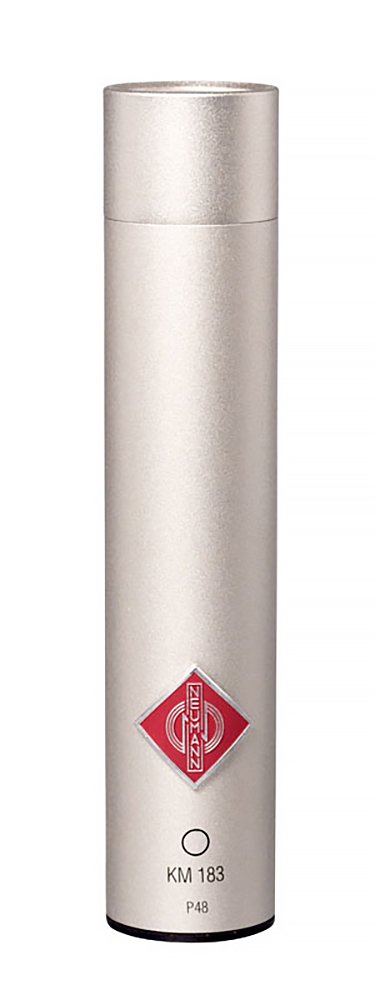

Neumann KM 183-NI

UPC/EAN #615104084377 MPN #008437

$1175.00

Save 18.9%, MSRP $1449.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

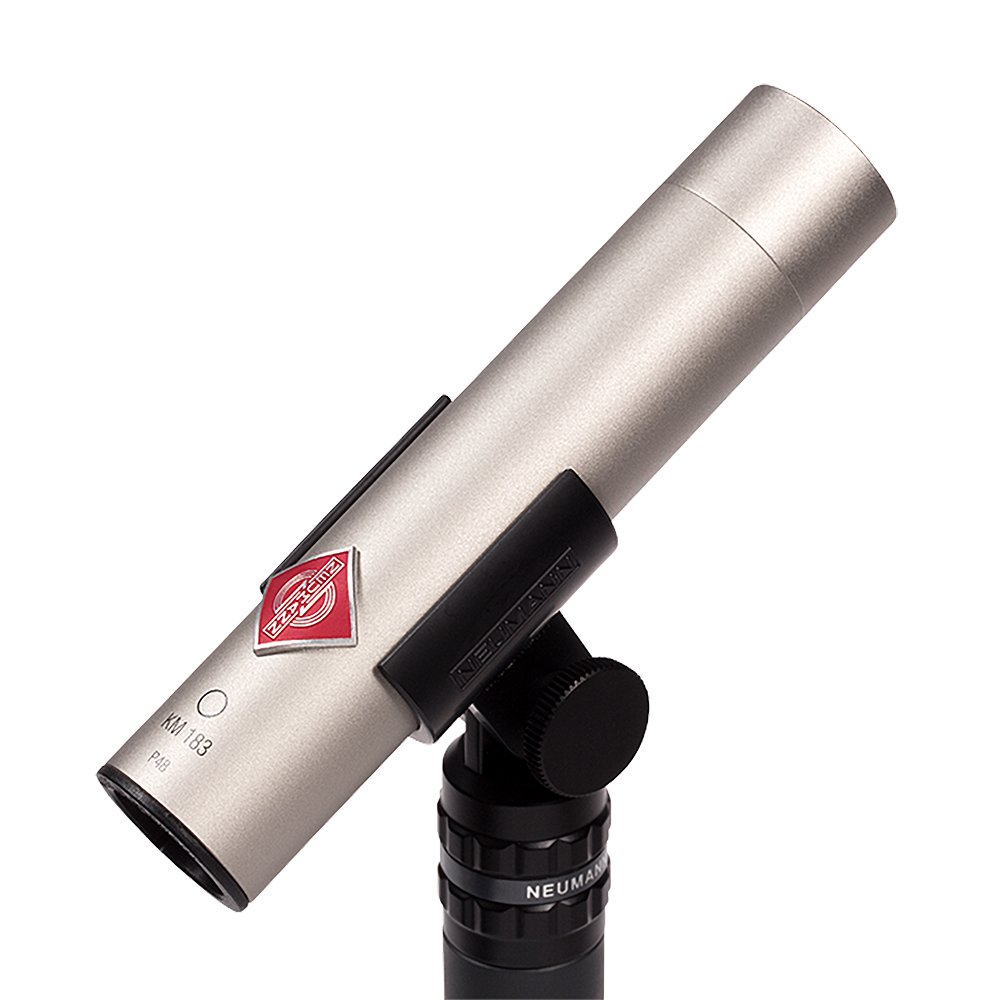

Omnidirectional mic with K 30 capsule, SG 21 BK, WNS 100. Nickel color

The "Series 180" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications.

Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" is predestined for economy-minded production and home recording studios.

Applications
Their slender shapes and the transmission characteristics described below make the "Series 180" especially suitable for a very wide range of tasks in the radio and television sector.

Acoustic features
The KM 183 is a pressure transducer with a boost of approximately 7 dB at 10 kHz in the free field. In the diffuse sound field it has a flat frequency response. The pressure gradient transducers KM 184 and KM 185 feature very smooth frequency responses not only for the 0 axis, but also for lateral (off-axis) sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.

Electrical features
The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications:

Compared to the KM 84 the dynamic range of the KM 184 increased by 24 dB mainly through the reduction of self-noise level to only 22 dB (CCIR) and an increased sound pressure handlingcapability of up to 138 dB.

The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders.

The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.

Features

Omnidirectional pickup pattern

Diffuse-field equalized pressure transducer

Very low self-noise

High SPL capability

Specifications

Acoustical operating principle : Pressure transducer

Directional pattern : omnidirectional

Frequency range : 20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm : 12 mV/Pa

Rated impedance : 50 ohms

Rated load impedance : 1000 ohms

Equivalent SPL CCIR 468-3 : 24 dB

Equivalent SPL DIN/IEC 651 : 13 dB-A

S/N ratio CCIR 468-3 : 70 dB

S/N ratio DIN/IEC 651 : 81 dB

Maximum SPL for THD 0.5% : 140 dB

Maximum output voltage : 10 dBu

Supply voltage : 48 V ± 4 V

Current consumption : 3.2 mA

Matching connectors : XLR 3F

Weight approx. : 80 g

Diameter : 22 mm

Length : 107 mm
