Neumann KK 185 NX
UPC/EAN #615104085718
MPN #008571
$969.00
Save 19.2%, MSRP $1199.00

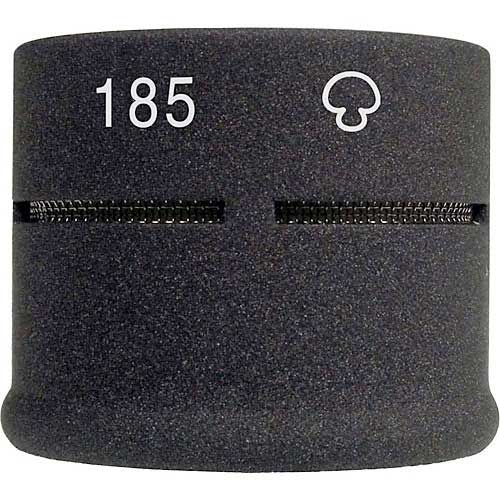

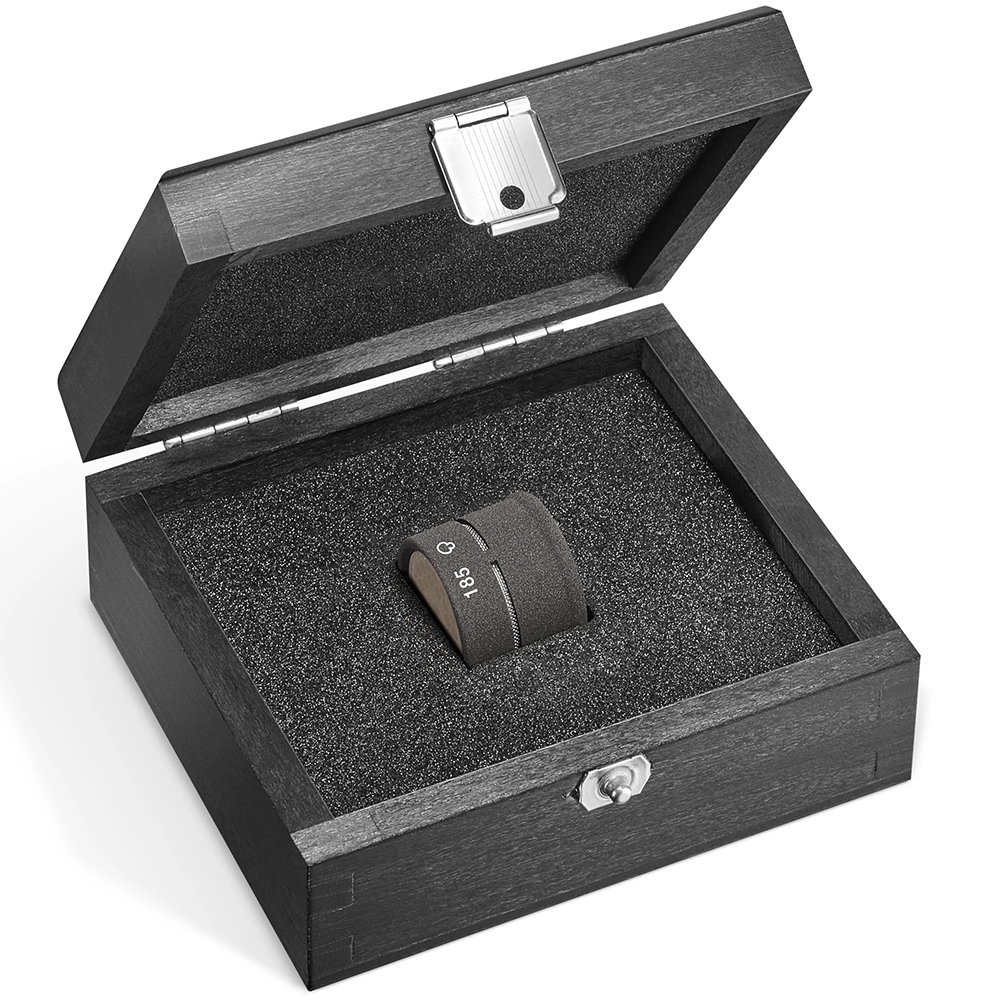

Hypercardioid capsule head, capsule woodbox, nickel. Compatible with KM A (analog) or KM D (digital) output stages. Black finish
The KK 185 is a pressure gradient transducer with a hypercardioid characteristic. Attenuation of sound incidence from the side or rear is approximately 10 dB. Minimum sensitivity occurs at an angle of about 120.
Features
Nextel BlackSupercardioid Polar PatternUser installableNon-reflective finish
Specifications
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Hypercardioid
Frequency Range: 20 Hz...20 kHz
Sensitivity at 1 kHz, 0 dB gain, and 94 db SPL: -42 dB FS
Equivalent noise level, CCIR¹: 25 dB
Equivalent noise level, A-weighted²: 16 dB-A
Maximum SPL at 0 dBFS (re. 94 dB SPL): 136 dB SPL
Maximum SPL with 18 dB preatt. (RCS) (re. 94 dB SPL): 154 dB SPL
Signal-to-noise ratio, CCIR (re. 94 dB SPL)³: 69 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 79 dB
Matching connector: XLR 3 F
Weight (output stage): 70 g
Weight (capsule only): 19 g
Diameter: 22 mm
Length (capsule only): 18 mm
Length (microphone): 108 mm
A/D conversion: Neumann process (patented), 28-bit internal word length
Digital signal processing: Fixed-point, variable internal word length 28 bits to 60 bits
Sampling rates: 44.1/48/88.2/96/176.4/192 kHz
Output data format: 24 bits as per AES/EBU (AES 3)
Latency: 44.1/48 kHz: 41 samples
Latency: 88.2/96 kHz: 49 samples
Latency: 176.4/192 kHz: 99 samples
Synchronization: Free-running (non-synchronous operation), frequency stability: ± 25 ppm
Synchronization: Synchronous operation, pulling range: min. ± 100 ppm
Supply voltage range: +7 V to +10.5 V
Current consumption: max. 150 mA (DDP)
¹ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
² according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
³ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
