Neumann KK 184 NX
UPC/EAN #615104085695
MPN #008569
$839.00
Save 16%, MSRP $999.00

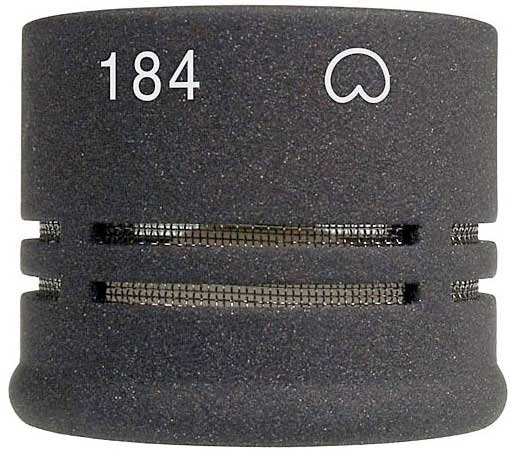

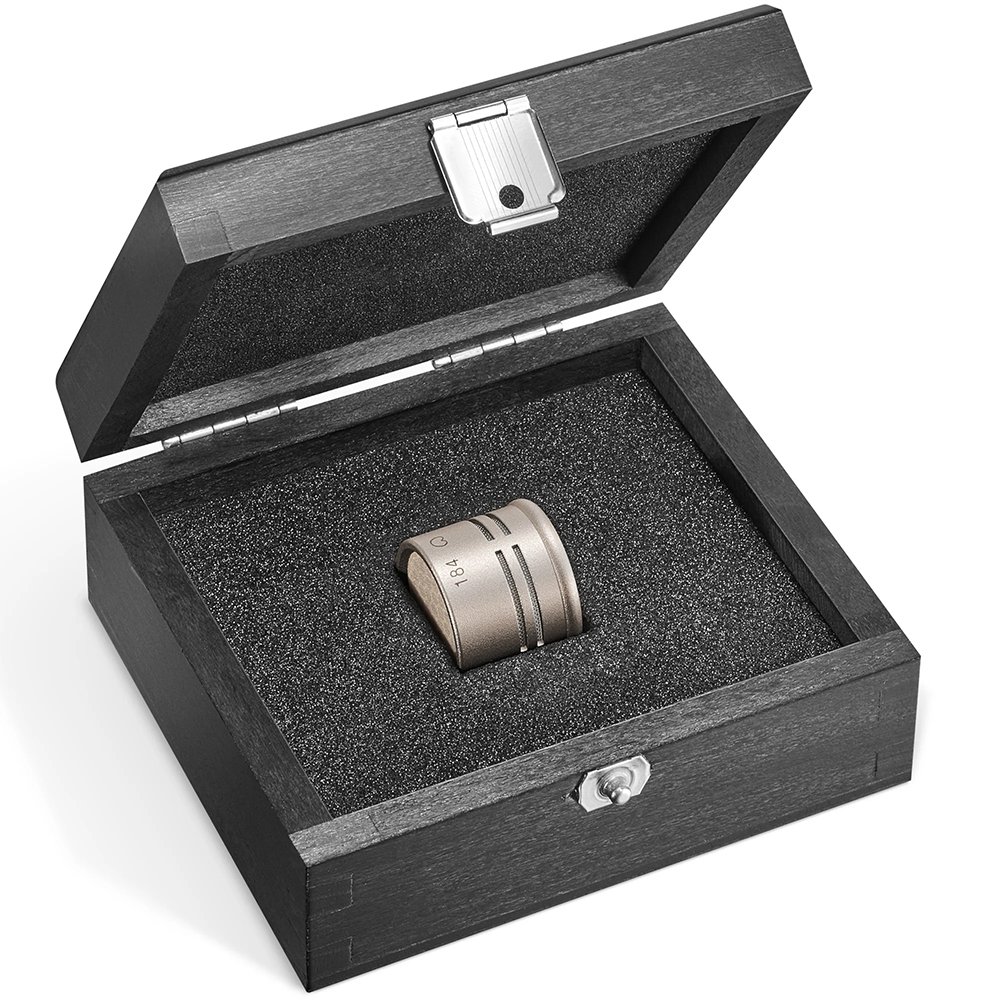

Cardioid capsule head, nickel, capsule woodbox. Compatible with KM A (analog) or KM D (digital) output stages. Black finish
The KK 184 is a pressure gradient transducer with cardioid characteristic. The frequency curves are very even and parallel to 0 sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.
Features
Nextel BlackCardioid Polar PatternUser installableNon-reflective finish
Specifications
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Cardioid
Frequency Range: 20 Hz...20 kHz
Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
Rated Impedance: 50 ohms
Rated load impedance: 1000 ohms
Equivalent noise level, CCIR¹: 22 dB
Equivalent noise level, A-weighted²: 13 dB-A
Maximum SPL for THD 0.5%³: 138 dB
Maximum SPL for THD 0.5% with preattenuation: 148 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL): 70 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 81 dB
Supply voltage (P48, IEC 61938): 48 V
Current consumption (P48, IEC 61938): max. 3.5 mA
Matching connector: XLR 3 F
Weight (output stage): 70 g
Weight (capsule only): 15 g
Diameter: 22 mm
Length (capsule only): 18 mm
Length (microphone): 108 mm
¹ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
² according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
³ measured as equivalent el. input signal
measured as equivalent el. input signal
according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
