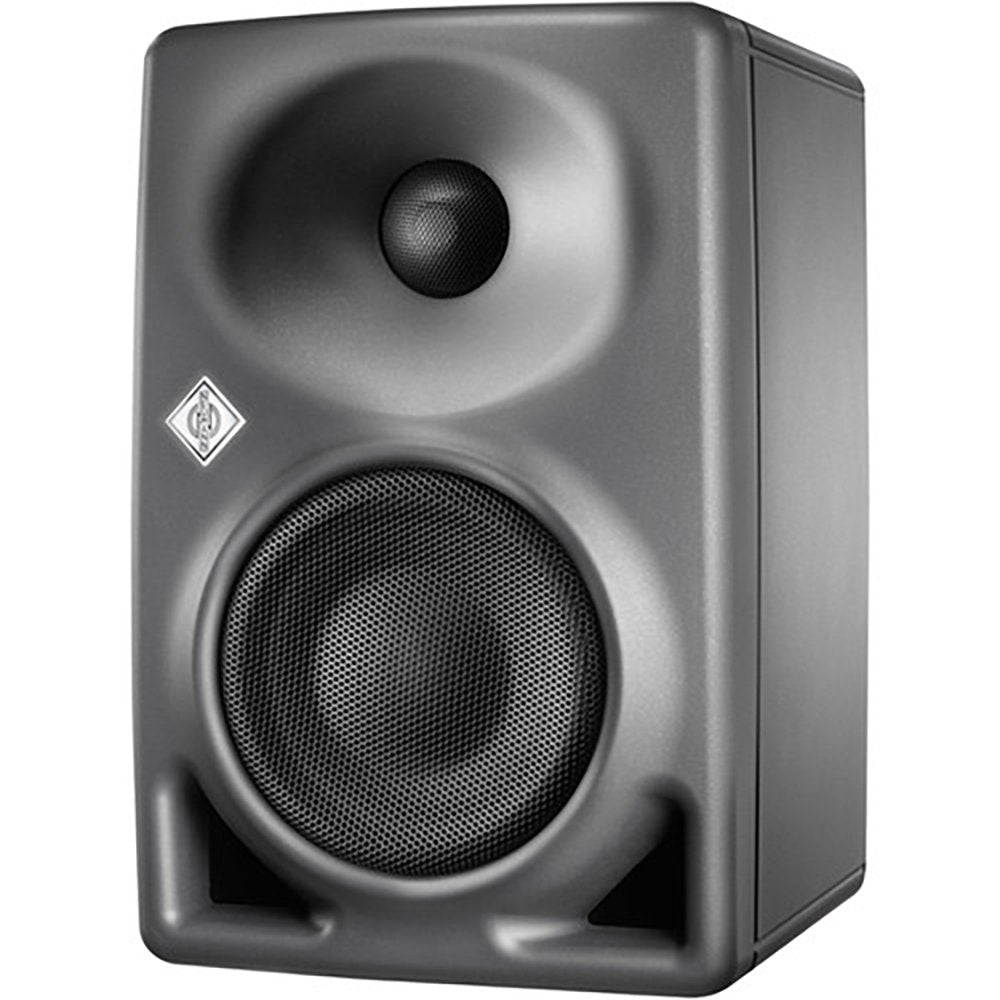

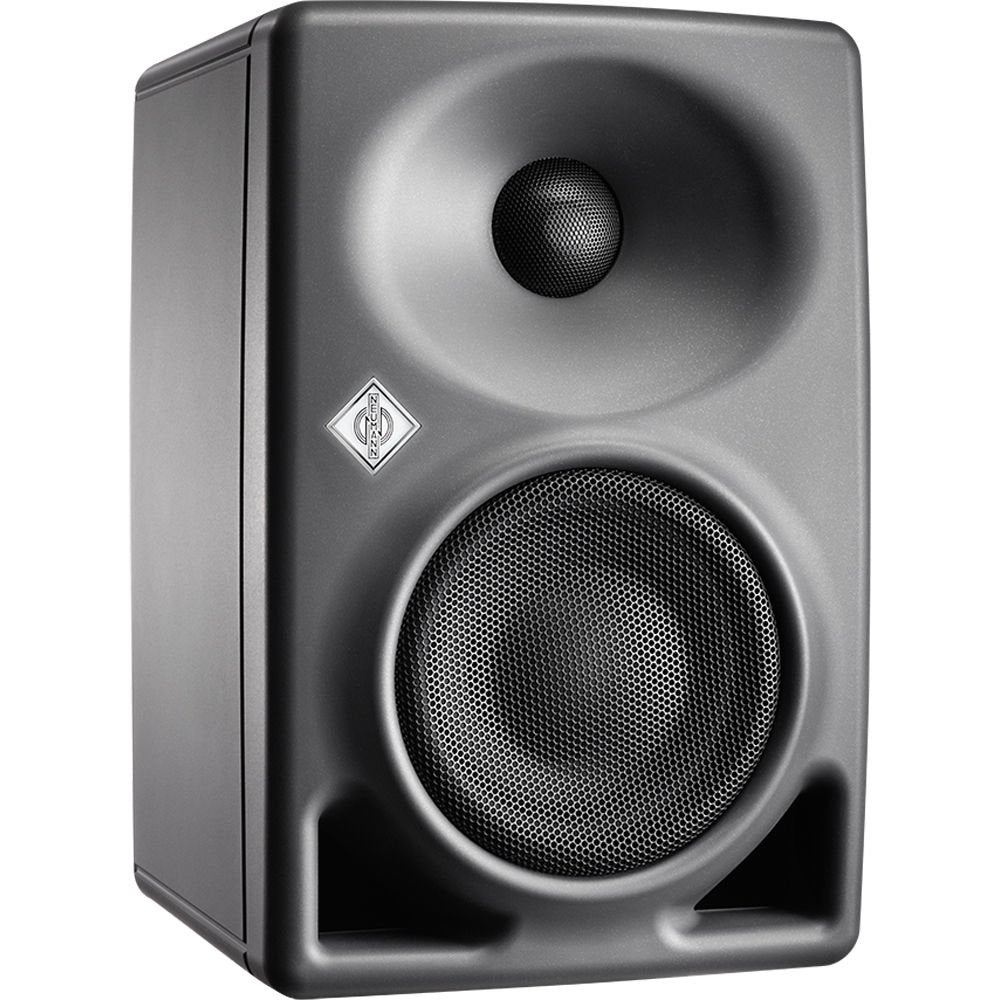

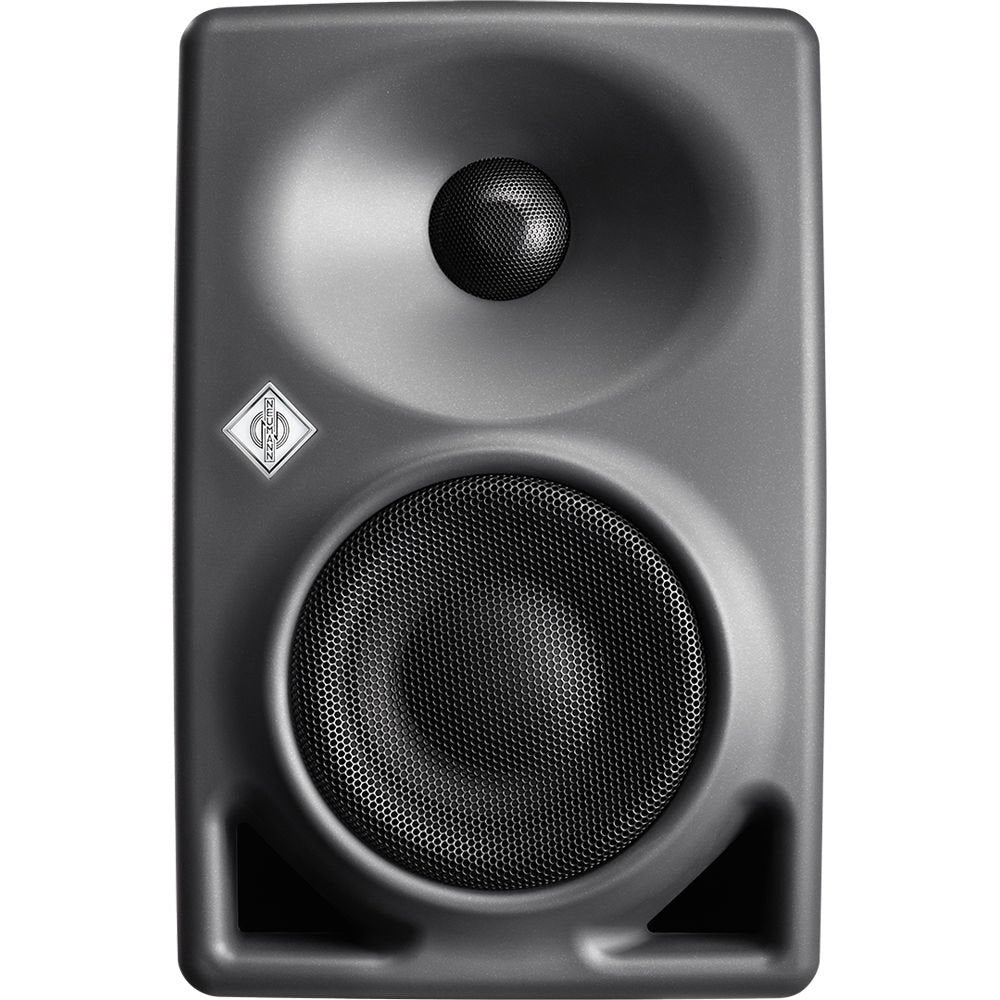

The Neumann KH 80 DSP is a 2-way active studio monitor well suited for near-field monitoring and multichannel setups in music studios, broadcast centers & home studios.
The KH 80 DSP features a DSP engine with network control, a Mathematically Modeled Dispersion Waveguide (MMD), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.
The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.
Top-shelf Neumann speaker technology in an affordable nearfield monitorTried-and-true 4" x 1" nearfield speaker configuration is ideal for mixing suites and small studiosNetwork-accessible DSP-regulated bi-amplification lets you configure your system from a central controllerManage multiple monitors from Mac, Windows, iOS, or Android platformsMathematically Modeled Dispersion Waveguide (MMD) provides superior dispersionPremium analog technology ensures top-quality imaging and audio handling
-6 dB free field frequency response: 53 Hz ... 22 kHz, ± 6 dB
-3 dB free field frequency response: 57 Hz ... 21 kHz, ± 3 dB
Pass band free field frequency response: 59 Hz ... 20 kHz, ± 2 dB
(with input gain set to 100 dB for 0 dBu): < 20 dB(A) at 10 cm
Sine wave output with a THD < 0.5 % at 1 m: 90 dB SPL (>200 Hz)
Max. SPL in full space / calc. in half space at 3% THD at 1m: 102.8 / 108.8 dB SPL (averaged between 100 Hz and 6 kHz)
Bass capability: Max. SPL in half space at 3% THD at 1m: 92.1 dB SPL (averaged between 50 Hz and 100 Hz)
Bass amplifier output power (THD+N, 0.1%, 10%) : 90 W, 120 W
Treble amplifier output power (THD+N, 0.1%, 10%): 50 W, 70 W
Controller design: Digital, active
Crossover Frequency: 1.8 kHz
Crossover Slope: 48 dB/oct, 8th order with phase correction
Equalization - Low Mid: 0, -1.5, -3, -4.5 dB
Equalization - via Neumann.Control software: 8 x full parametric IIR + low / high shelf global balance
FIR phase correction: Linear phase (170 Hz ... 16kHz, +/- 45°), Analog emulation
Latency A-D-A - linear phase, analog emulation mode: 2 ms, 0.5 ms
Protection circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter. Woofer excursion limiter.
Infrasonic filter - frequency; slope: 61 Hz; 12 dB/oct.

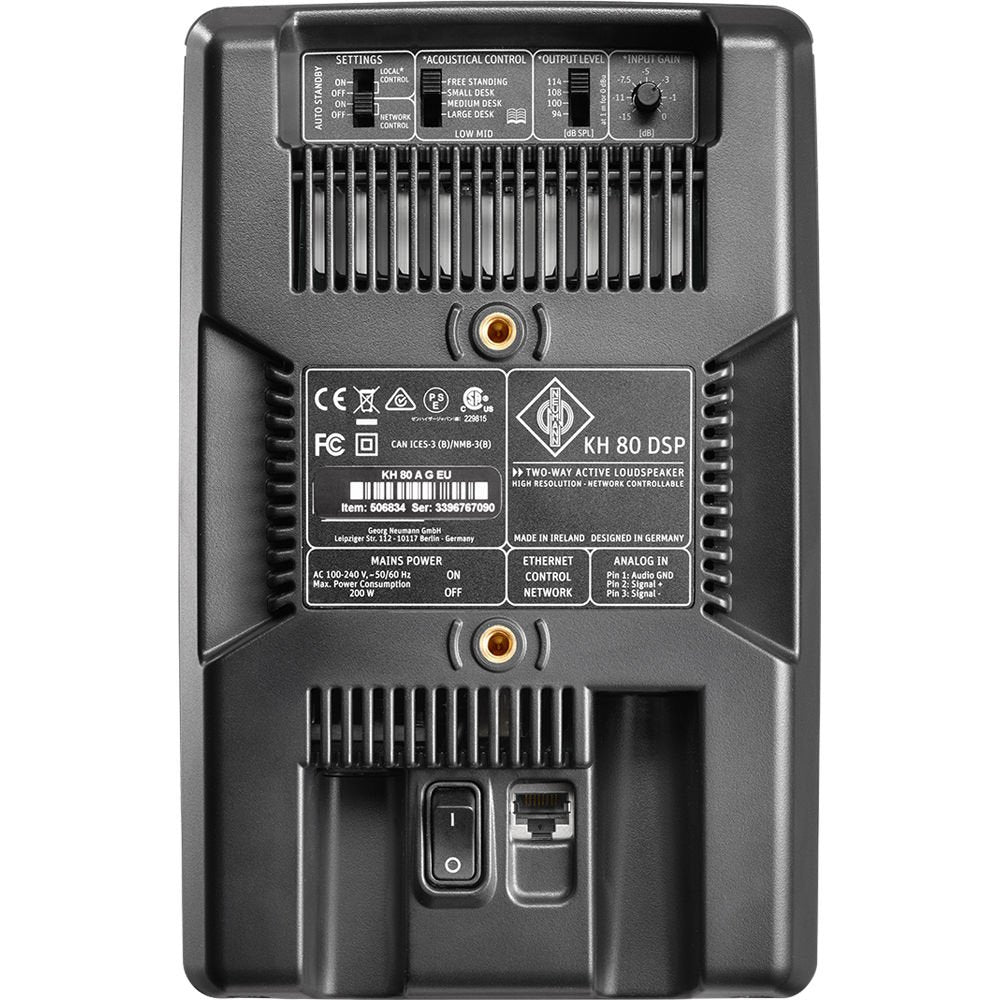

Input: XLR / 6.3 mm (¼") Jack, analog electronically balanced
Impedance: 14k Ohms
Input gain control (sensitivity): 0 dB to -15 dB
Output level control: 94, 100, 108, 114 dB SPL
CMRR: >56 dB @ 15kHz
Max. input level: +24 dBu for 94 dB SPL setting
Digital converter: resolution, design: 24-bit DAC,
Digital internal sampling rate: 48 kHz
Dynamic range D-A; woofer, tweeter: 114 dB, 117 dB
User adjustable delay range: 0 ... 70 ms
Audio-video/lip sync max. frames 1.75 (40 ms frames) or 2.1 (33 ms frames)
Time-of-flight max. distance: 24 m (79 ft)
Resolution - time/distance: 0.1 ms / 3.44 cm (1 3/8")
Mains Power Supply, voltage; frequency: 100-240V; 50/60 Hz
Power consumption (230 V / 100 V):
Standby: <330 / <50 mW
Idle: 9 / 8 W
Full output: 180 W
Standby: Disabled, 90 mins (default), or user defined in software
GTIN (UPC/EAN) : 615104271012
Manufacturer Part Number : KH 80 DSP A G US
