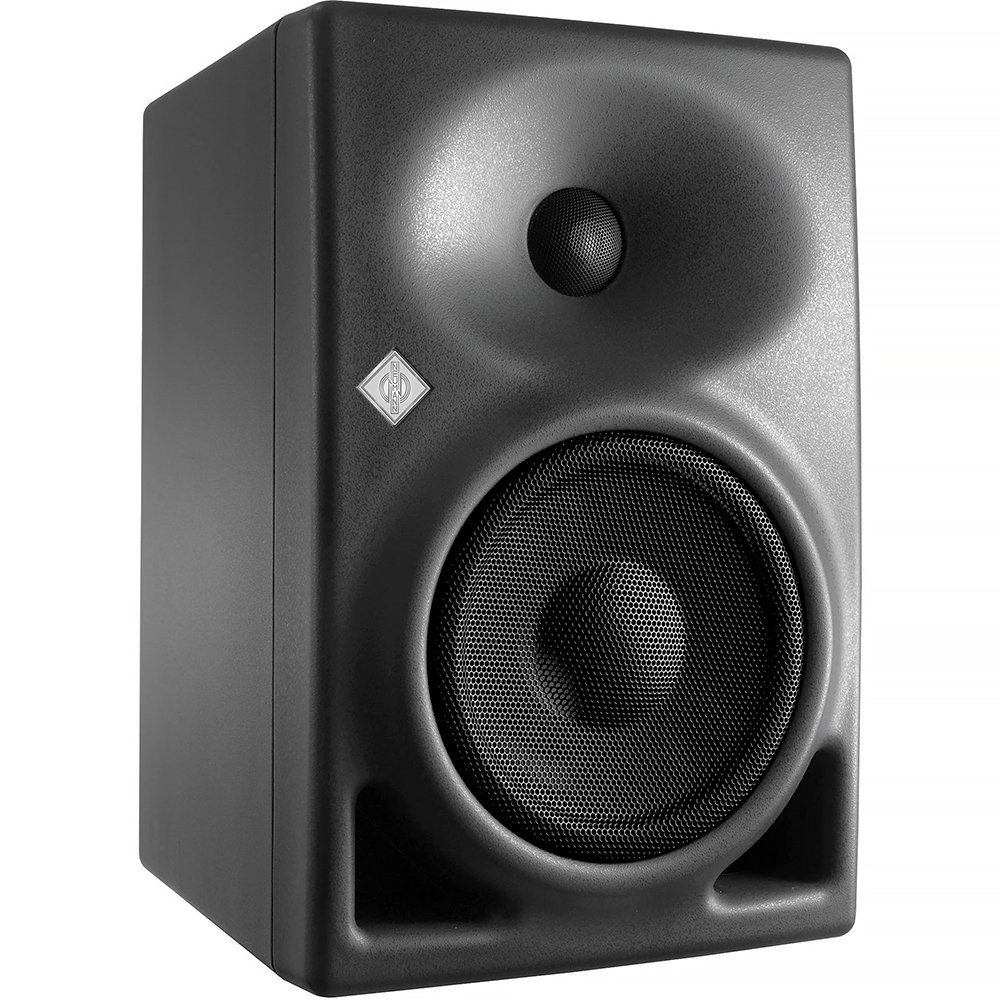

The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.

Powerful titanium fabric dome

Elliptical Mathematically Modelled Dispersion? (MMD?) waveguide

Composite sandwich cone

Long throw bass driver

Two-color + dimmable Neumann logo

Robust metal grille

Large front panel ports

Compact aluminum cabinet (magnetically shielded)

Wide horizontal dispersion

Narrow vertical dispersion

One-piece front panel with no discontinuities

Powerful analog amplifiers with large headroom

Production consistency

4-position bass, low-mid and treble acoustical controls

Wide range input gain and output level controls

New mounting hardware options

Display dimmer

Ground lift

Universal switched-mode power supply (100 ... 240 V)

Separate woofer and tweeter electronic peak limiters and thermal-protection circuitry

Acoustics:

Free field frequency response: 52 Hz ... 21 kHz, ± 3 dB

Pass band free field frequency response: 54 Hz ... 20 kHz, ± 2 dB

Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) at 10 cm

Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m: > 100 Hz

Max. SPL in full space / calc. in half space at 3% THD at 1m: 105.1 / 111.1 dB SPL (averaged between 100 Hz and 6 kHz)

Bass capability: Max. SPL in half space at 3% THD at 1m: 104.8 dB SPL (averaged between 50 Hz and 100 Hz)

Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 107 dB(C) SPL

Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair): 97 dB(C) SPL (full range), 104 dB(C) SPL (with subwoofer)

Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair): 88 / 93 dB(C) SPL (full range), 89 / 94 dB(C) SPL (with subwoofer)

Electronics:

Woofer amplifier, cont.(peak) output power*: 50 W (80 W)

Tweeter amplifier, cont.(peak) output power*: 50 W (80 W)

Controller design: Analog, active

Crossover Frequency: 2.0 kHz

Crossover Slope (dB/oct.): 24, 4th order

Equalization - Bass: 0, 2.5, 5, 7.5 dB

Equalization - Mid: 0, 1.5, 3, 4.5 dB

Equalization - High: +1, 0, 1, 2 dB

Protection circuitry: Limiter: low, high

Infrasonic filter frequency; slope: 30 Hz; 6 dB/oct.

Analog Input:

Impedance, electrically balanced: 10k Ohms in position 94/108 dB SPL at 1 m, 20k Ohms in position 100/114 dB SPL at 1 m

Input gain control (sensitivity): 0 dB to 15 dB

Output level control: 94, 100, 108, 114 dB SPL

CMRR: >56 dB @ 15 kHz

Maximum input level: 24 dBu

Other:

Displays and indicators - power on: Neumann logo "White"

Displays and indicators - limit/clip: Neumann logo "Red"

Displays and indicators - digital error: Neumann logo "Red" flash

Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz

Power consumption - Idle: 40 W

Power consumption - Full output AC: 200 W

Mechanics:

Cabinet surface finish, color: custom: Painted aluminium, metallic anthracite (RAL 7021)

Operating conditions: +10 C to +40 C (+50 F to +104 F), <90% RH, non-condensing

Transport/storage conditions: 25 C to +70 C (13 F to 158 F), <90% RH, non-condensing

Drivers: Magnetically shielded

Woofer: 130 mm (5.25")

Tweeter: 25 mm (1")

Mounting points: 2 x M8 on rear panel

Height x width x depth, mm (inches): 277 x 182 x 220 mm (10 7/8" x 7 1/8" x 8 5/8")

Internal net volume / external volume: 6.5 liters / 9.7 liters

Weight: 6.5 kg (14.3 lbs)

Includes: 1x KH 120 A, 1x Power cables (Euro and USA) or 1x UK mains cable, 1x Operating manual
