myMix IEX-16LA
UPC/EAN #013964584938
MPN #IEX-16L-A
16-channel input expander for myMix systems, dual DB-25 connectors, digital gain control, network integration, scalable to 500 channels, rack-mountable.

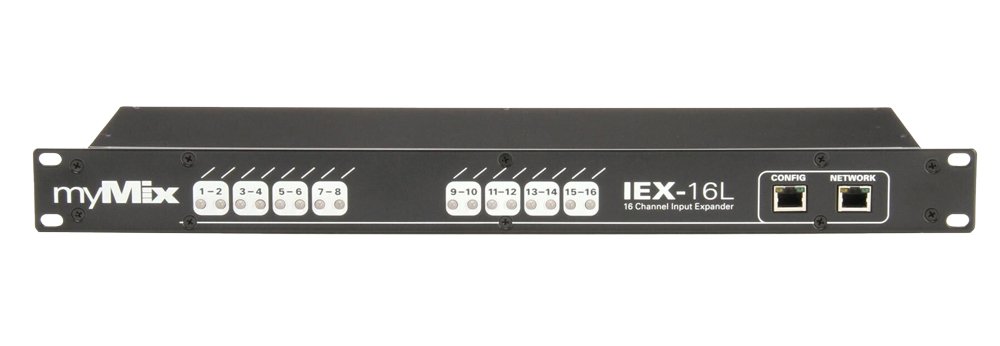

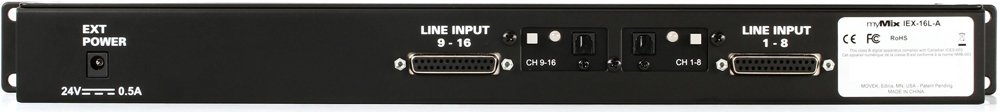

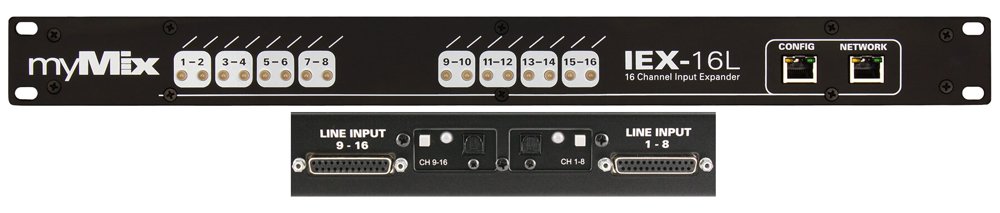

The myMix IEX-16L-A is a 16-channel input expander designed to integrate seamlessly with the myMix personal monitoring system, enhancing its flexibility and scalability. This 1U rack-mountable unit provides 16 balanced line-level inputs via two rear-panel DB25 connectors, facilitating easy integration with mixing consoles, external microphone preamps, or digital interfaces. Each input channel offers individual digital gain adjustment at 0 dB, +6 dB, or +12 dB, allowing precise control over input levels to suit various audio sources.
In addition to analog inputs, the IEX-16L-A features two 8-channel optical ADAT inputs, which can be activated individually. This configuration enables versatile input combinations, such as 16 line-level sources, 8 line-level sources plus 8 ADAT inputs, or 16 ADAT inputs, providing adaptability to different audio setups. The expander connects to the myMix network via standard Ethernet, and multiple IEX-16L-A units can be combined to accommodate larger systems, with the total number of audio channels determined by the network switch's capacity.
Features
Expand Your myMix System: Adds 16 additional audio channels to your myMix network, enhancing input capacity for complex setups.Versatile Input Options: Features two DB25 connectors for 16 balanced line-level analog inputs and dual ADAT optical inputs supporting up to 16 digital channels.Flexible Configuration: Allows channel pairing in dual mono or stereo modes, with input naming and gain settings stored within the unit for consistent performance.Seamless Integration: Connects to existing myMix systems via standard Ethernet, with configuration accessible from any myMix device on the network.Scalable Design: Supports multiple IEX-16L-A units in a single system, accommodating up to 500 audio channels when used with a managed switch.
Specifications
Audio inputs: 16 balanced line-level inputs via two rear-panel DB25 connectors (8 channels per connector), compatible with mixing consoles, microphone preamps, or active splitter/preampsConfiguration: Input channels configurable as mono or stereo pairs, channel naming and configuration stored within the IEX-16L unit, accessible from any myMix device or myMix CONTROL softwareGain control: Three levels of digital gain adjustment per channel (0 dB, +6 dB, +12 dB)Networking: Connects to myMix network via Fast Ethernet (100 Mbps) using Cat 5 cabling, supports integration with multiple IEX-16L units, requires managed switch for networks with more than 16 audio channelsPhysical specifications: 1U rack-mountable chassis, dimensions 1.75" (H) x 19" (W) x 5.71" (D), weight approximately 5 lbs (2.27 kg)
