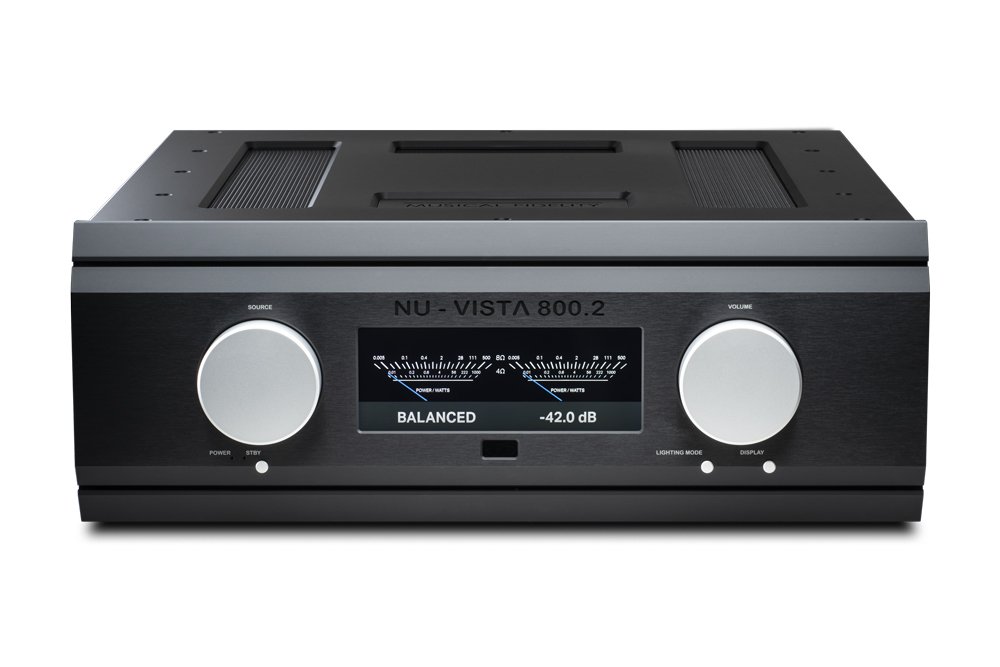

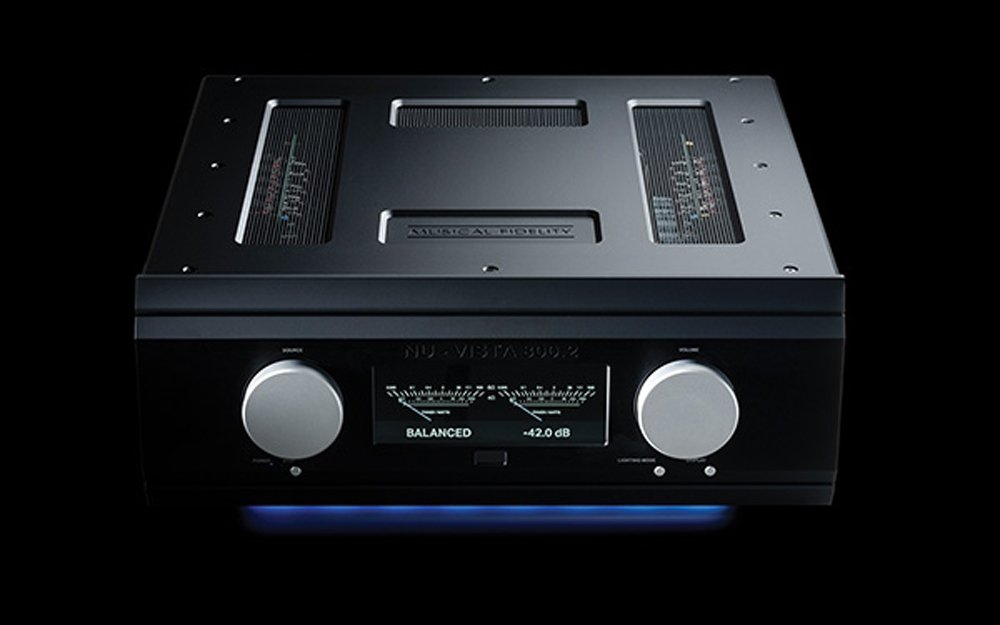

Musical Fidelity Nu-Vista 800.2 Black
MPN #NU-VISTA800.2-Black
330W per channel, 5 versatile inputs. Low noise, THD+N < 0.005%, flat frequency response, Dual mono power amps, Nuvistor tubes, low noise aluminum case for protection
The Nu-Vista 800.2 is a power-house of an amplifier with outstanding clarity and finesse. Receiving new modern looks, a new display and revised internals it is all the original 800 was and more.
The Nu-Vista 800 was an amplifier that has enjoyed much popularity and use as a high end hybrid integrated over the past few years. Unfortunately, as with all things encompassing modern, as well as more traditional technology, parts were discontinued. The original "retro look" display was suddenly no longer produced at very short notice.
We were therefore left with a choice - discontinue a popular amplifier or workaround and replace the original with updated version but as unchanged as possible from the original formula.
Features
A work of audio art using our incredible Nu-Vista circuitryNEW Redesigned front panel with new displayNEW Rewound transformer for less noiseNEW Revised power supply circuitsNEW Remote on/standbyFive versatile inputs - Balanced XLR, CD, Tuner, 2 x AuxiliaryBoth fixed line and variable pre outputsHome Theatre bypass300WPC+Total stability margin, will drive any loudspeaker with easeCutting edge technical performance with the magic of Nu-VistorsDual mono power amps with separate preampSuperb design, Heroic build qualityNever before in the history of hi-fi have Nuvistor tubes been coupled with state-ofthe-art SMD technology and sophisticated modern design techniques. The Nu-Vista 800.2's technical performance is astonishingMore than 300 watts per channel with unconditional stability margins and incredible load driving abilityIncredibly low distortion over a colossal bandwidthExtremely low noiseExtremely flat frequency response
? Extremely flat frequency response
Specifications
Output
? Power: 330 Watts per channel into 8 Ohms;
500W into 4 ohms; 1000W peaks into 2 ohms
? Voltage: 52 Volts RMS, 20Hz to 20 kHz; onset of
clipping; 147 Volts peak to peak
? Current: 120 Amps peak to peak
? Damping factor: 200
? Output devices: 5 pairs per channel
Line input
? THD+N: < 0.005 % typical, 20Hz to 20 kHz
? SNR: > 107dB ?A'-weighted
? Input impedance: 40 k Ohms
? Frequency response: +0, "0.1dB, 10Hz to 30 kHz

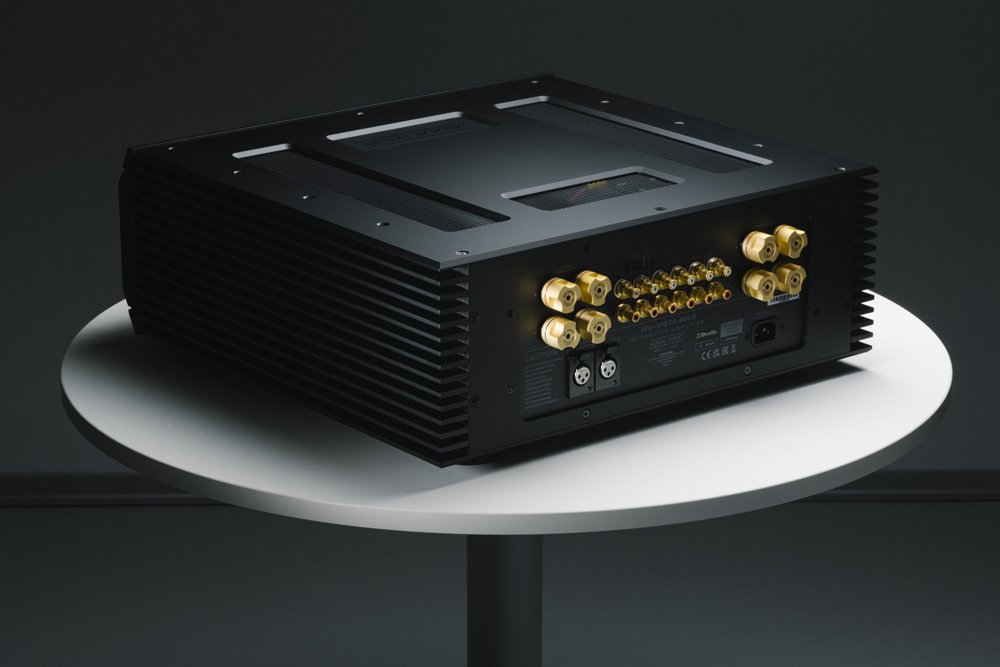

Connections
? Line level inputs: 4 pairs line level RCA connectors; 1 pair line level balanced XLR connectors
? Line level outputs: 1 pair line level RCA
connectors, constant level LINE outputs;
1 pair line level RCA connectors, PREAMP outputs for e.g. biamping
? Speaker outputs: 2 pairs 4mm banana plug/binding posts
Power requirement
? Mains voltages: 115/230VAC 50/60Hz (factory
pre-set); 100VAC 50/60Hz (alternative)
? Consumption: <0.5W in standby mode (orange LED lit); 130W on and idle (blue LED lit); 900 Watts maximum
General Information
? Dimensions (WxHxD): 483 x 187 x 510 mm
? Gewicht: 41 kg net
