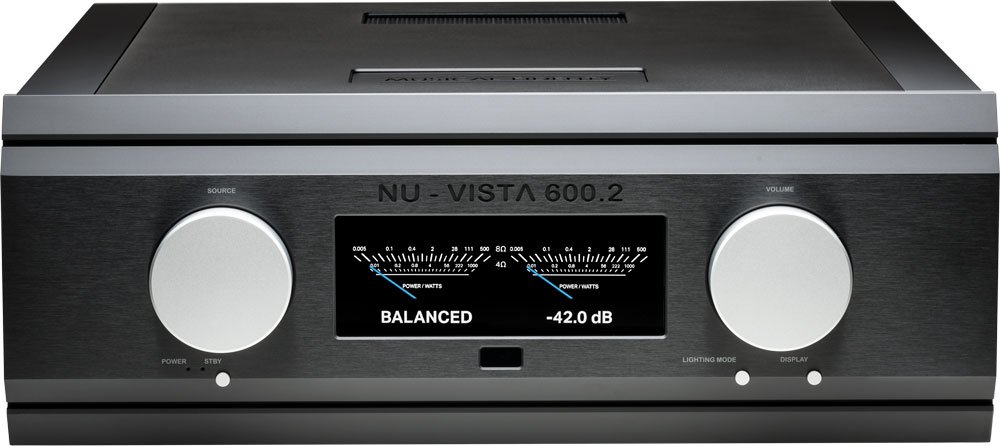

Musical Fidelity Nu-Vista 600.2 Black
MPN #NU-VISTA600.2-Black
Redesigned dual mono amplifier with 160W/8?, 300W/4? output, laser-trimmed volume control, balanced XLR inputs, separate power supplies, and nuvistor tube stage, black version
The Musical Fidelity Nu-Vista 600.2 is a high-performance integrated amplifier designed to deliver extraordinary sound with the perfect balance of warmth, power, and finesse. It is the successor to the renowned Nu-Vista 800.2 and incorporates advanced circuitry, including nuvistor tube technology, which enhances both musicality and dynamic range. Featuring dual-mono construction, large toroidal transformers, and refined power management, the Nu-Vista 600.2 offers superior noise isolation and stability. The amplifier's front panel has been upgraded with a sleek new design and a customizable display, while input and output options include both balanced and unbalanced connections for flexible system integration.
The Nu-Vista 600.2 brings luxurious craftsmanship, utilizing heavy aluminum casing for vibration and electromagnetic protection. Its advanced Class A tube stage with nuvistor technology, paired with a Titan-inspired power architecture, ensures lifelike sound reproduction, from subtle jazz notes to the thunder of a full orchestra. Whether you seek immersive imaging or impactful transients, this amplifier delivers with ease, offering an unparalleled listening experience for discerning audiophiles.
Features
Exceptional Sound Quality: Refined circuit design delivers high power, clarity, and dynamic range for lifelike music reproduction.Nuvistor Tube Technology: Incorporates rare nuvistor tubes for enhanced reliability, low noise, and warmth in sound.Analog Focus: Fully analog with no digital or streaming features, ensuring maximum audio fidelity.Dual Mono Design: Separate power supplies for left and right channels for superior channel separation and performance.Enhanced Power Handling: Redesigned power amp structure includes high-capacity components for improved energy handling and transient response.Balanced and Unbalanced Connections: Multiple XLR and RCA inputs and outputs, including balanced XLR preamp outputs for flexible connectivity.Laser-Trimmed Volume Control: Precise, distortion-free control with minimal gain error.Customizable Display: Color display with optional VU-meters and adjustable brightness.Heavy-Duty Build: Solid aluminum casing for vibration and electromagnetic interference protection.Remote Control: Comprehensive remote with full access to front-panel controls.
Specifications
General Specifications
Model: Nu-Vista 600.2

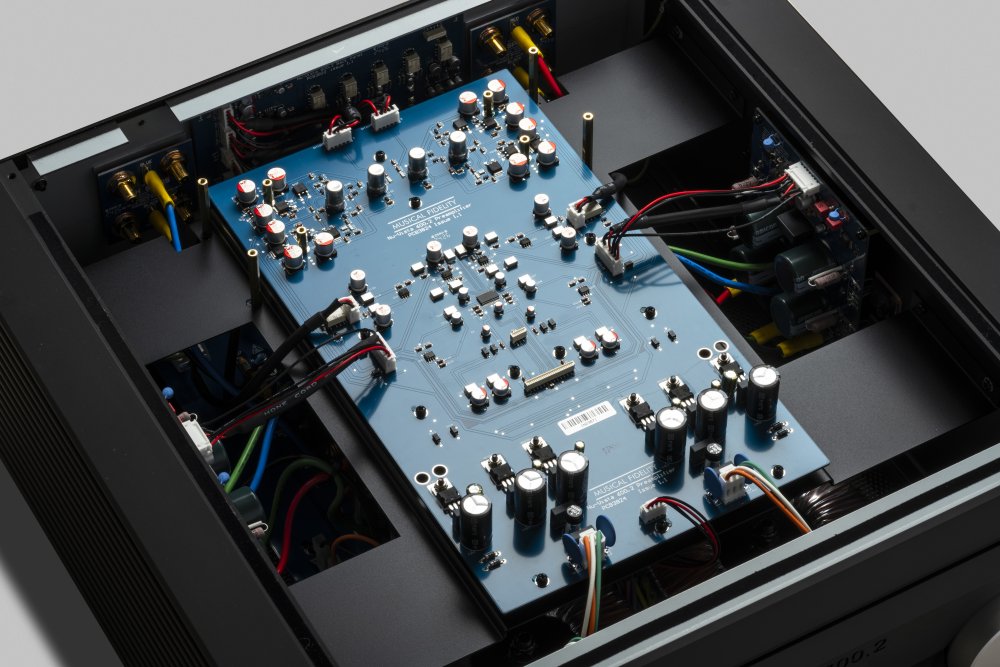

Amplifier type: Analog, discrete dual mono
Tube type: Nuvistor tubes (6S51N in a Class A buffer stage)
Power supply: Oversized toroidal transformers with multi-array power supplies
Case material: Extruded aluminum, Faraday cage design for electromagnetic shielding
Display: Color display with optional VU meters, dimmable
Output Specifications
Power output: 160W into 8 ohms, 300W into 4 ohms, 500W peaks into 2 ohms
Voltage: 36V RMS, 20Hz to 20 kHz; 147V peak-to-peak
Current: 50 Amps peak-to-peak
Damping factor: 100
Gain: Preamp - 4.3x (12.6dB), Power amp - 34x (31dB)
Output devices: 2 pairs per channel
Audio Performance
THD+N: < 0.005%, 20Hz to 20 kHz
SNR: > 107dB (A-weighted)
Frequency response: +0, "0.1dB from 10Hz to 30 kHz
Input and Output Connections
Inputs: 4 pairs line level RCA connectors, 2 pairs line level balanced XLR connectors
Outputs:
1 pair RCA (constant level LINE output)
1 pair RCA (PREAMP output)
1 pair XLR (PREAMP output)
Speaker outputs: 2 pairs 4mm banana plug/binding posts
Power Requirements
Mains voltages: 115/230VAC 50/60Hz (factory preset), 100VAC 50/60Hz (alternative)
Power consumption:
Standby mode: <0.5W (orange LED lit)
Idle mode: 75W (blue LED lit)
Maximum: 600W
Physical Characteristics
Dimensions (WxHxD): 483 x 187 x 510 mm
Weight: 36 kg (net), 44.3 kg (boxed)
