18x22 USB audio interface with DSP, mixing and effects
Best-in-class audio quality
The UltraLite-mk5 includes renowned ESS Sabre32? DAC technology, featuring the ES9026PRO DAC, to deliver measured 125 dB dynamic range and -114 dB THD+N. Renowned drivers deliver rock-solid performance and industry-leading low latency.
Optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the UltraLite-mk5 delivers an astonishing round trip latency (RTL) of 2.4 ms (milliseconds) over USB (at 96 kHz with a 32-sample host buffer).
Built for studio and stage
Housed in a compact, steel enclosure you can take anywhere, the UltraLite-mk5 is equally well-suited for studio and stage, with or without a computer. Connect all your personal studio gear for state-of-the art computer-based recording and production, or take it to your next gig to mix live, without a computer.
40 simultaneous audio channels
As an interface or mixer, the UltraLite-mk5 provides 18 inputs and 22 outputs, for a total of 40 simultaneous, independent I/O channels. You get 2 mic/line/instrument inputs, 6 line inputs, 10 line outputs, headphone out and 8-channel optical I/O. The optical ports alternatively support stereo TOSLink (optical S/PDIF).
All the I/O you need
Connect all of your audio gear, including speakers, headphones, mics, guitars, synths, keyboards, drum machines, effects processors and even MIDI devices.
The UltraLite-mk5 is USB audio class compliant, giving you plug-and-play compatibility with iPad and other Apple iOS devices. Record on-the-go, directly to your iPad, or play backing tracks during a gig, mixed with your live inputs with the UltraLite-mk5's built-in mixing. Control everything from the CueMix 5? mixing app on your iPad or iPhone.
The UltraLite-mk5 provides convenient loopback channels to your host computer or iOS device, so you can easily route computer output, along with a mix of live inputs from the UltraLite-mk5 itself, back to the computer, where you can record it back into your podcasting host software or stream it live to the internet. Streaming and podcasting has never been easier and better-sounding!
Mobile recording and mixing
After recording and mixing in the studio, take the UltraLite-mk5 on the road with your laptop for mobile recording and live mixing.
Superb sound quality & performance40 simultaneous ins/outs (18 x 22)On-board DSP, mixing and effectsUniversal connectivityLoopback and other advanced extrasCueMix? 5 console app (Mac/Win/iOS)Performer Lite workstation software
Sample rates : 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar inputs : 2 x XLR/TRS "combo" jacks - 1 M impedance on the line/instr inputs
Analog inputs : 6 x 1/4" TRS line in (balanced)
Analog outputs : 10 x 1/4" TRS line out (balanced, DC coupled)
Digital I/O : 1 bank (8 ch) of ADAT optical at 1x sample rates - 1 bank (4 ch) of SMUX optical at 2x sample rates - Switchable to stereo TOSLink (optical S/PDIF) - 1 x stereo S/PDIF on RCA (up to 96 kHz)
Computer I/O : 1 x USB-C 2.0 audio class compliant - Compatible with USB Type A (with adapter or C-to-A cable)
Total audio I/O : 18 in / 22 out (40 total) at 1x sample rates - 14 in / 18 out (32 total) at 2x sample rates -
8 in / 12 out (20 total) at 4x sample rates
MIDI I/O : 1 x MIDI IN - 1 x MIDI OUT - 16 MIDI channels to/from computer host
Headphone : 1 x 1/4" TRS stereo phone
Phantom power : 2 x individual +48V

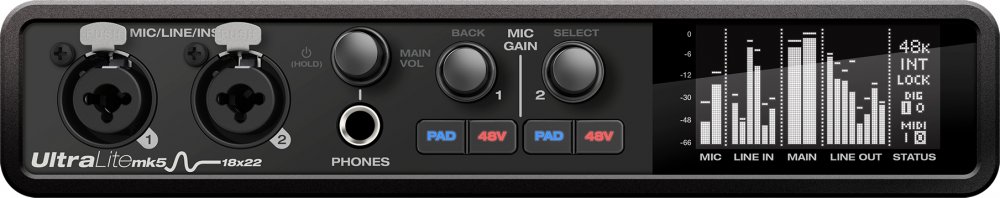

Front panel : 2 x XLR/TRS combo inputs - 1 x 1/4" TRS headphone output - 1 x potentiometer . phone/monitor vol - 2 x potentiometer . mic/instr input gain - 4 x switches . (2) 48V and (2) pad - 1x high-resolution white OLED display for metering/status
Power : External 12-18V DC power supply - 1.0A max . tip pos or neg
Dimensions and weight :
(width x depth x height, enclosure only)
8.6 x 6.9 x 1.75 inches
22 x 17.5 x 4.5 cm
2.875 lbs / 1.31 kg
