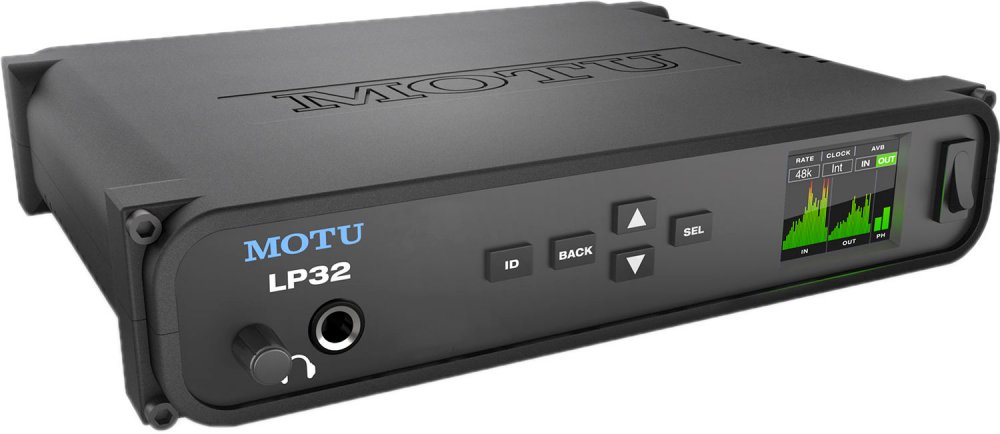

MOTU LP32
UPC/EAN #839128006089
MPN #9370
ADAT USB2/AVB Ethernet audio interface with DSP & mixing
32 channels of ADAT "lightpipe" I/O
The LP32 provides four independent banks of 8-channel ADAT optical I/O, 64 channels of USB I/O, 32 channels of AVB-TSN network I/O and a headphone output, for a total of 258 simultaneous I/O channels.
High-performance computer connectivity
New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the LP32 delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).
A flexible digital converter, router, splitter and repeater
Send any input to any output, or split to multiple output channels. Convert any format to any other (Optical, AVB-TSN and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.
DSP mixing and effects processing
The LP32's 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including classic reverb, EQ modeled after British analog console EQs and compression modeled after the legendary LA-2A compressor. If you know your way around a large-format mixing console, you'll feel right at home. With 32-bit floating point processing, the LP32's DSP engine delivers virtually unlimited headroom and the utmost in sound quality.
Stand-alone operation with wireless control
Connect an Apple Airport? or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
Web app control
The software that you use to control the LP32 doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the LP32's on-board DSP, mixing, and device settings from the web app software running in your favorite web browser on the computer, or even a tablet or smartphone on the same Wi-Fi network as your computer.
Comprehensive metering
The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O. Access hardware settings from a simple and convenient menu.
Word Clock
Standard word clock input and output allows you to resolve the LP32 to other digital audio gear or house sync.
Convenient headphone monitoring
Use the assignable front-panel headphone output with volume control to monitor any stereo channel pair.
Mix and match with other MOTU gear
An included mounting bracket kit joins the LP32 side-by-side with any other MOTU half-rack unit to create a single rack-space configuration consisting of customized analog, digital and/or MIDI I/O configuration tailored just for you.
Audio analysis tools
Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "water- fall" display, full-featured oscillioscope, X-Y plot and phase analyzer.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
Specifications
Digital I/O

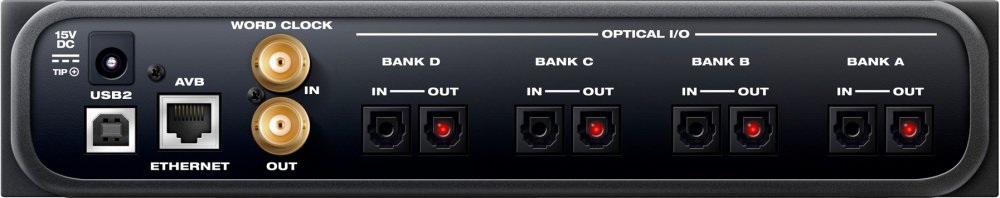

4 banks of 8-ch ADAT optical at 1x sample rates4 banks of 4-ch SMUX optical at 2x sample ratesIndividually switchable to stereo TOSLink (optical S/PDIF)
Total I/O
32 in / 32 out (64 total) at 1x sample rates16 in / 16 out (32 total) at 2x sample ratesn/a at 4x sample rates
Computer I/O
1 x USB 2.0 audio class compliantUSB 3.0 and iOS compatible
Computer I/O channels
64 in/out at 1x (44.1 to 48 kHz)32 in/out at 2x (88.2 to 96 kHz)24 in/out at 4x (176.4 to 192 kHz)
Headphone
1 x 1/4" TRS stereo phone (assignable)
Front panel
1 x 1/4" TRS headphone output4x switches for menu navigation160 x 128 RGB LCD for level meters / menu
Power
External 12-18V DC power supply1.0A max . tip pos or neg
Dimensions and weight (width x depth x height, enclosure only)
8.6 x 7 x 1.75 inches22 x 17.75 x 4.5 cm2.0 lbs / 0.9 kg
Mac System Requirements
1 GHz Intel-based Mac or faster2 GB RAM; 4 GB or more recommendedMac OS X version 10.8 or laterAvailable USB 2.0 or 3.0 portA large hard drive (at least 500 GB for recording)
Windows System Requirements
1 GHz Pentium-based PC compatible or faster2 GB RAM; 4 GB or more recommendedWindows 7, 8 or 10Available USB 2.0 or 3.0 portA large hard drive (at least 500 GB for recording)
Web App Support
Any web client platform: Mac, Windows, Linux, iOS, AndroidAny web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
Included Software
MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)MOTU Discovery App for iOS (available from Apple App Store)MOTU Pro Audio Control web app (served from the hardware itself)MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)AudioDesk 4.0 for Mac & PC (separate download)
Operating Systems
For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or laterFor web app control: Mac, Windows, Linux, iOS, Android
Compatible Mac Software
The LP32 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:
MOTU Digital PerformerAvid Pro Tools (version 9 or later)Apple Logic ProApple Logic ExpressApple Garage BandApple SoundTrack ProAbleton LivePresonus Studio OnePropellerhead Record & ReasonSteinberg CubaseCockos ReaperNative Instruments KontaktWaves stand-alone apps (and plug-ins, via compatible host)
Compatible Windows Software
The LP32 ships with standard ASIO and Wave drivers for Windows 7, 8 and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
MOTU Digital PerformerAvid Pro Tools (version 9 or later)Ableton LiveCakewalk SonarCockos ReaperImage Line FL StudioNative Instruments KontaktPresonus Studio OnePropellerhead Record & ReasonSony Vegas ProSony Sound ForgeSony AcidSteinberg CubaseWaves stand-alone apps (and plug-ins, via compatible host)
