MPN #MA-1000DS

$3899.00

Save 19.9%, MSRP $4869.00
Financing available
Free shipping in Canada. Conditions

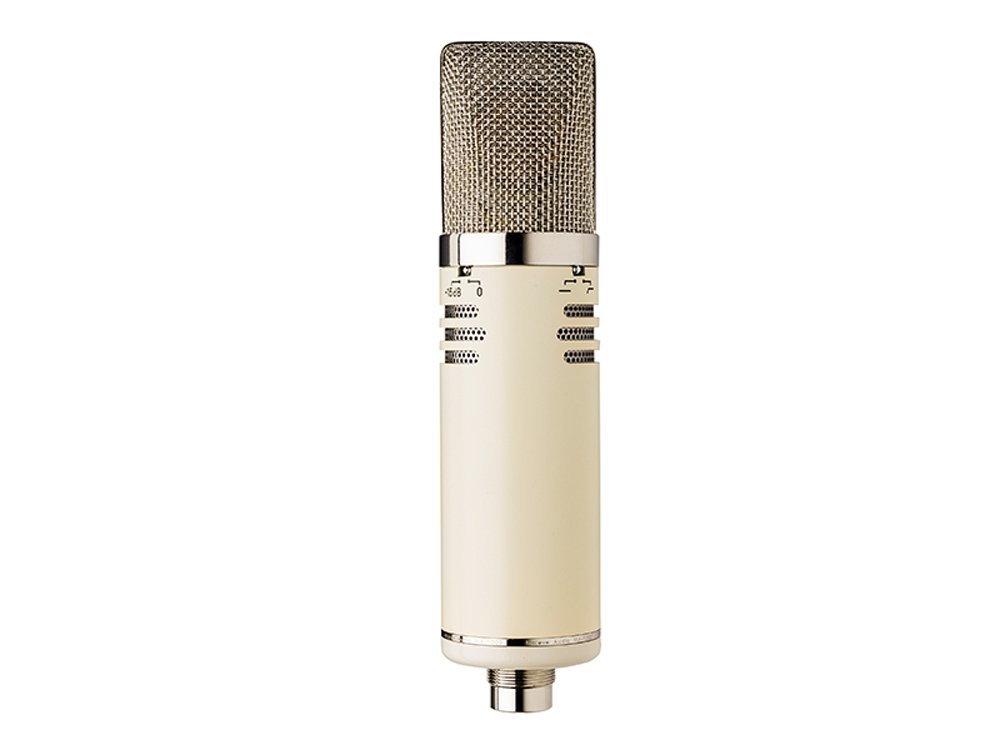

Signature Series multi-pattern large diaphragm tube condenser, Desert Sand



Drawing inspiration from some of yesterday's most revered microphones, TECHNICAL GRAMMY® Award-Winning microphone designer David Royer has created a thoroughly modern tube microphone that features an original new old-stock 5840 tube, 251-style capsule, and custom designed transformer built by Coast Magnetics. The result A sweet, airy top end, "you-are-there" realism in the mids and an accurate yet authoritative bottom end.

The Signature Series has been exhaustively field tested against microphones often costing $20K or more - universally evoking the same "Wow" response usually reserved for only the most prized vintage mics. Push up the fader and say "Ahhh!" With performance, reliability, and quality like this, we are sure you'll agree that Mojave's new Signature Series microphone is a New American Classic.
  • Original new old-stock 5840 tube
  • 251-style capsule
  • Custom designed transformer by Coast Magnetics
  • Remotely controlled, continuously variable polar
  • pattern selector, located on power supply
  • Switchable 15dB pad
  • Switchable Bass Roll-off
  • Internal switchable power supply voltage
  • American Classic Design

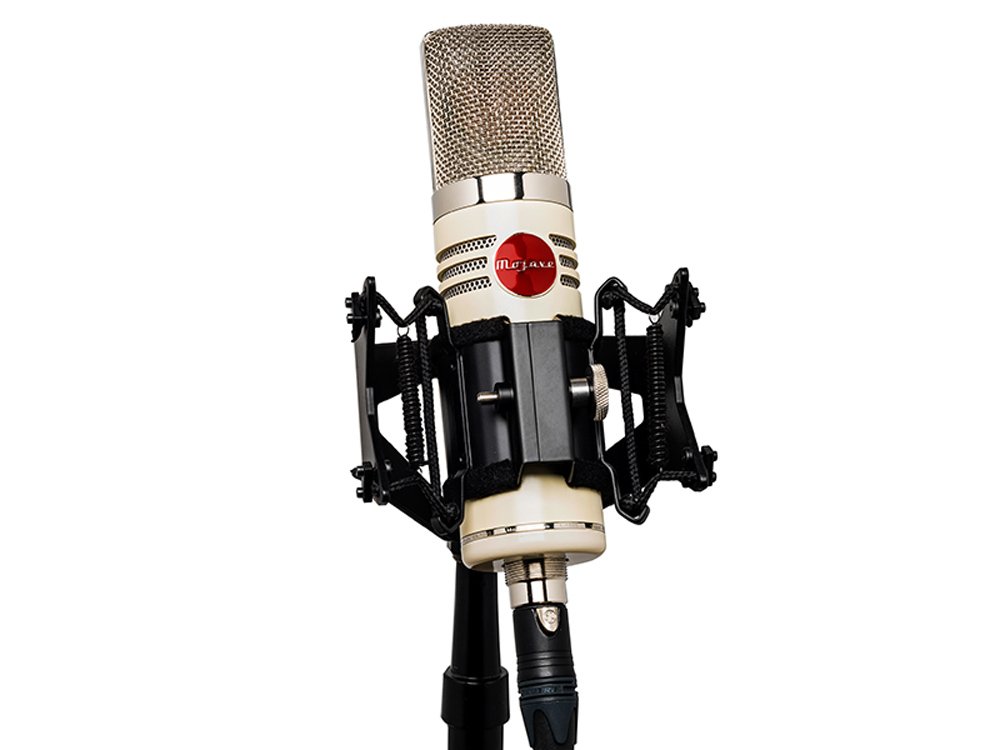

  • Comes with Sling-Shock┬« licenced from Royer Labs
  • Premium Cable made with Mogami Cable
  • and Neutrik connectors
  • TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor - double diaphragm.
    DIAPHRAGM: 1-inch diameter, gold sputtered
    DIAPHRAGM THICKNESS: 3-microns
    POLAR PATTERN: Continuously variable from omnidirectional to figure-eight.
    FREQUENCY RESPONSE: 20 Hz to 20KHz 3 dB
    SENSITIVITY: Omni -37.5 dB, Cardioid -36.0 dB, Figure-8 -34.0 dB re. 1V/pa
    MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
    DISTORTION: < 1% @ 117 dB SPL , < 3% @ 125 dB SPL with pad off
    < 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on
    SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)
    PAD: 15 dB
    BASS CUT: 6 dB per octave below 100 hertz.
    IMPEDANCE: 200
    POWER REQUIREMENT: 6 VDC @ 150 mA. 125 VDC @ .7 mA
    (from dedicated power supply)
    DIMENSIONS AND WEIGHT:

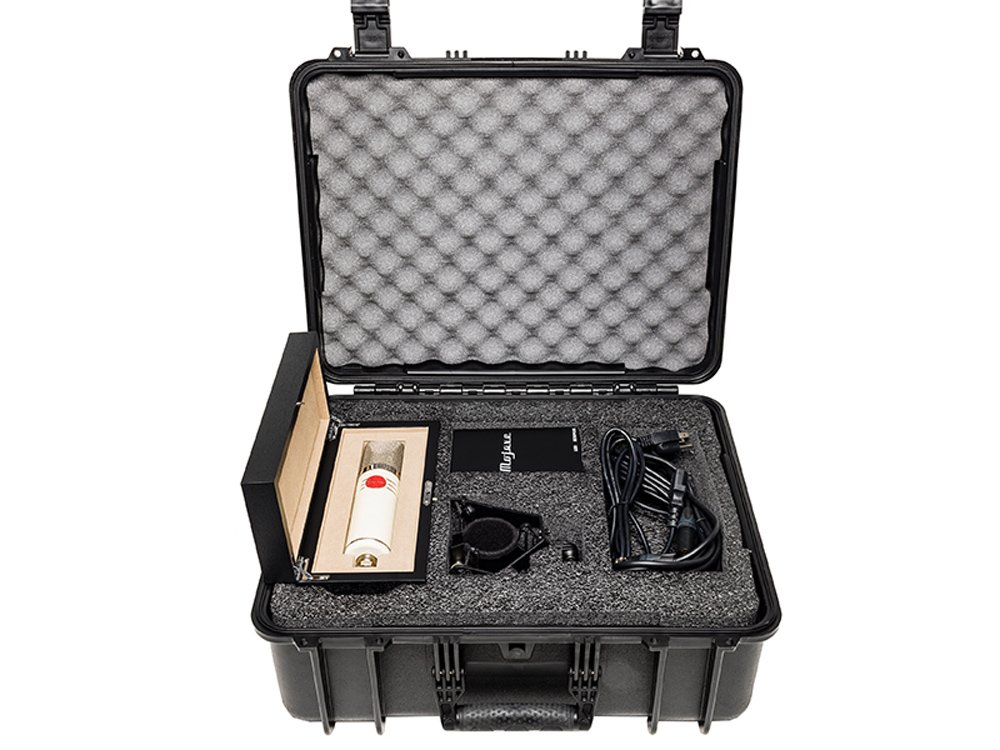

    Carrying case with microphone, power supply, shock mount and cables: 13 lbs. (5.9Kg)
    Microphone: 7 5/8" X 2" (194mm x 51mm), 1 lb. (0.45Kg)

    Recommended Applications:
    Vocals and Voice-overs
    Broadcast
    Acoustic Instruments
    Piano
    Drum Overheads, Drum Rooms
    Orchestral Recording
    Choral Recording
