MILLENNIA  |  SKU: 415

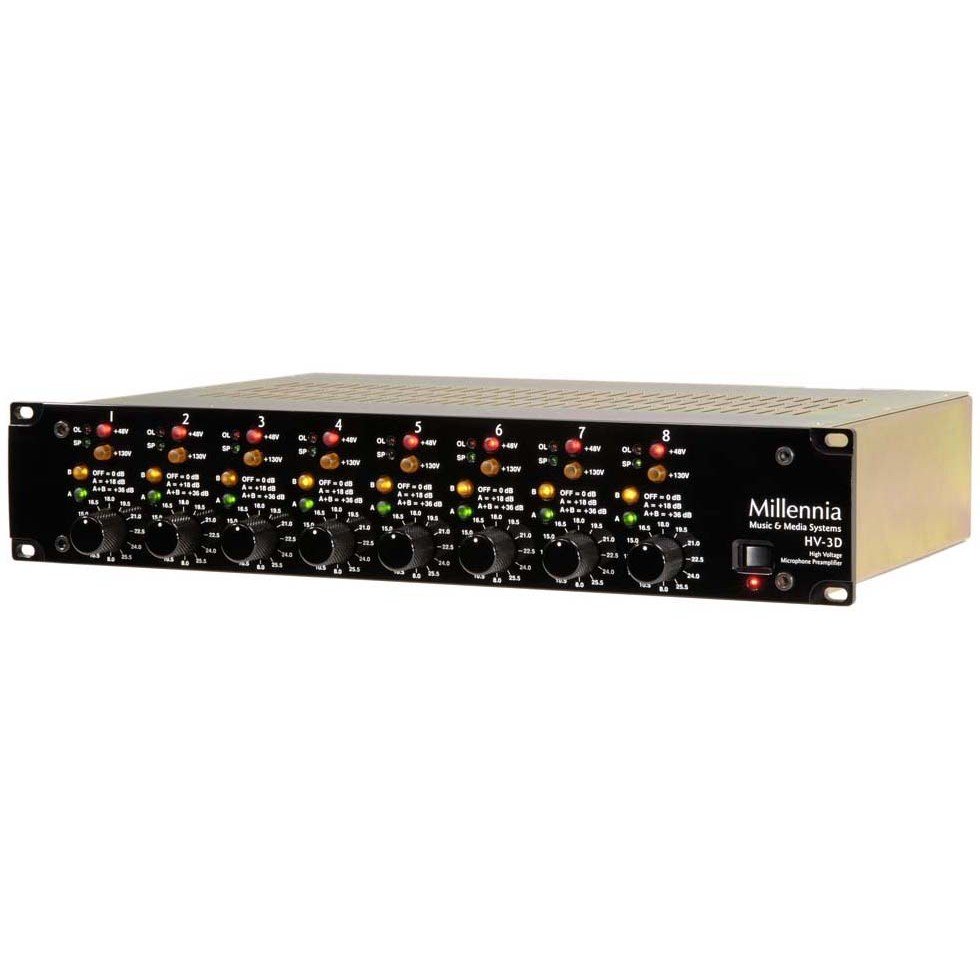

HV-3D-8

Multi-Channels Mic-Preamp

Eight channel version of HV-3C mic preamp. With unmatched performance, it is Millenia's flagship preamp topology.

$6,365.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Millennia HV-3D (tm) is a height channel, fully matched microphone preamplifier of uncompromising sonic character, technical specification, and mechanical workmanship. The HV-3D offers multiple channels of HV-3C preamplifiers at significantly less per-channel cost.

With circuitry identical to Millennia's acclaimed HV-3C series high voltage microphone preamplifier, the HV-3D offers high resolution gain switching (36 steps @ 1.5 dB per step), optional B&K (DPA) 130V mic input option on every channel, DC-coupled input option on every channel for optimizing ribbon and other dynamic mics, a passive summing option, and future options, including remote gain control (late 2005).

Unlike preamps using vacuum tubes, IC function modules, and audio transformers (all of which lend their own audio coloration), Millennia's HV-3 micamp architecture is precisely optimized towards capturing the subtlest detail of music and ambience. With +23 dBu native input headroom, the HV-3D requires no input pads or switch points as found on common "textbook" preamp designs - thus avoiding yet another source of sonic degradation. Moreover, with its +32 dBu output headroom, ultra-high dynamic stability and linearity is assured.

HV-3D signal path from input through output is entirely balanced with a minimum amplifier topology. Uncompromising circuit design with meticulous selection and matching of critical components assures consistently transparent audio performance at all dynamic excursions and frequency extensions. Moreover, standard audio cables over 1000 feet in length have been driven from HV-3 mic preamps with no immediately detectable signal degradation.

Options:

  • DPA (B&K) +130 V mic inputs
  • DC inputs for ideal performance with dynamic and ribbon microphones
  • HDOE Output expansion option for three outs per channel
  • AD-D96 analog to digital converter card
  • MADI-D MADI output card
  • Dante-D Dante network output card
    •

    Features

    Unsurpassed ambience retrieval

    Transformerless design with matched hi-speed discrete transistor octet has 23 dB input headroom: no attenuator "pads" needed

    Uncolored timbral accuracy at all dynamic levels

    Entirely balanced audio path with precision components maintains signal integrity: THD under 5 ppm (.0005%)

    Effortless, vividly realistic, musical performance

    Laser-trimmed FET-based output stage has 32 dB headroom: drives 1000 foot (300 m) cable runs with ease

    Standard 36-step gain controls (1.5 dB per step) are stereo matched to .08 dB

    Ultra-clean toroid power supply

    Gold audio connectors and switches

    Mogami Neglex OFC audio wiring

    Silver Teflon power wiring

    Welded 16 gauge steel rack chassis

    Specifications

    Minimum Gain


    8.5 dB

    Maximum Gain (1.5 dB per step, 36 steps)


    65 dB (up to 75 dB on request)

    Frequency Response (+0 / -3 dB)


    sub 3 Hz to beyond 300 kHz

    Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common)


    -133 dB EIN

    Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out)


    < .001%, Typ. < .0005% (< 5 ppm)

    Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out


    < .0009%

    Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out)


    < 2 degrees deviation

    Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.)


    > 65 dB, Typ > 85 dB

    Slew Rate (35 dB Gain, +27 dBu Out)


    > 25 Volts per microsecond

    Maximum Input Level (20 Hz - 40 kHz)


    +23 dBu (no attenuator pads required)

    Maximum Output Level (20 Hz - 40 kHz)


    +32 dBu

    Phantom Input Impedance (1 kHz)


    6,750 ohms

    Output Impedance


    24.3 Ohms (x2)

    DPA (B&K) Mic Powering


    +130 V dc max, (non-phantom)

    Phantom Powering


    +48 V dc, +/- 2 V dc

    Power Consumption


    45 watts maximum

    Power Requirements


    Selectable: 100-120, 200-240 V ac, 50/60 Hz

    Dimensions/Shipping Weight


    19" W x 3.5" H x 12.5" D, 25 lbs.
