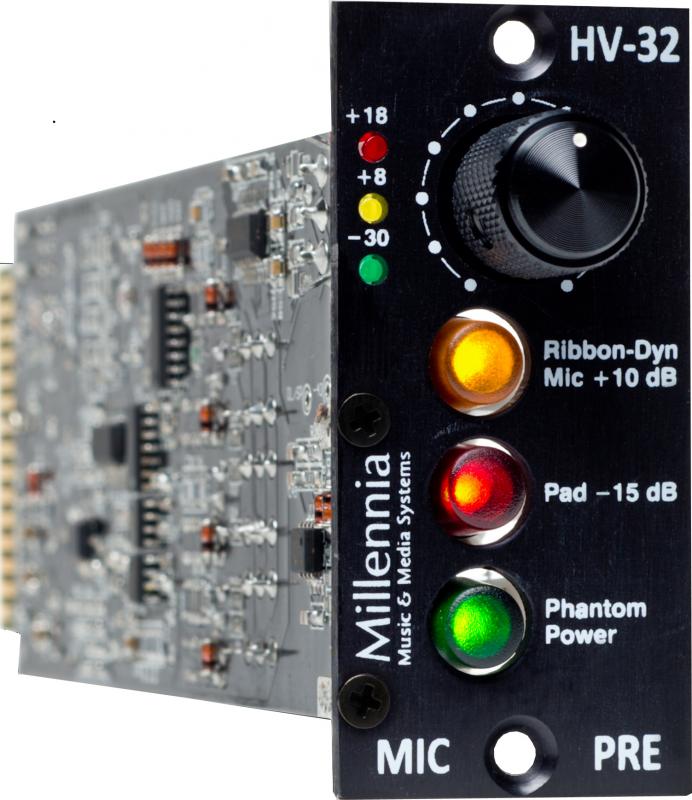

Millennia HV-32

MPN #HV-32

Save 5.1%, MSRP $838.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Continuously variable gain control

Front panel instrument input

DC coupled ribbon mic with 10dB gain boost setting

80 Hz rolloff filter

48V phantom power

15 dB Pad

Polarity flip

API 200 series compatible format

Specifications

Minimum Gain : 8.5 dB

Maximum Gain (continuously variable) : 60 dB (70 dB in Ribbon Mode)

Frequency Response : +0 / -3 dB sub 3 Hz to beyond 300 kHz

Noise 60 dB Gain, 10 Hz - 30 kHz, Inputs common : -130 dB EIN

Total Harmonic Distortion + Noise : 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out < .001%, Typ. < .0005% (< 5 ppm)

Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out : < .0009%

Phase Response 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out : < 2 degrees deviation

Common Mode Rejection Ratio 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M. : > 65 dB, Typ > 85 dB

Slew Rate 35 dB Gain, +27 dBu Out : > 25 Volts per microsecond

Maximum Input Level 20 Hz - 40 kHz : +20 dBu (no attenuator pads required)

Maximum Output Level 20 Hz - 40 kHz : +28 dBu

Phantom Input Impedance 1 kHz : 6,750 ohms

Output Impedance : 24.3 Ohms (x2)

Phantom Powering : +48 V dc, +/- 2 V dc

Dimensions/Shipping Weight : 1-1/8" W x 2-5/8" H x 5-7/8" D, .25 lbs.
