Midas KT-DN32-MADI
MPN #KT-DN32-MADI
32-channel MADI expansion module for M32/X32 consoles with optical and coaxial I/O, redundant operation, clock sync, and flexible channel selection.
The Klark Teknik DN32-MADI is an expansion module designed to integrate seamlessly with Midas M32 and Behringer X32 digital mixing consoles, providing up to 32 channels of bidirectional audio over the AES10-compliant MADI protocol. This facilitates uncompressed, low-latency digital audio transmission across standard IP networks, enhancing flexibility in both live and studio environments.

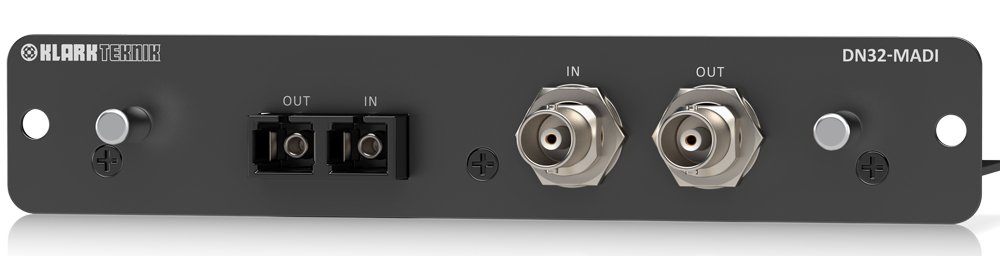

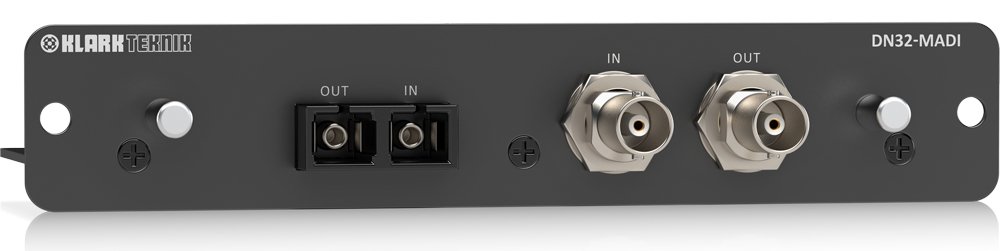

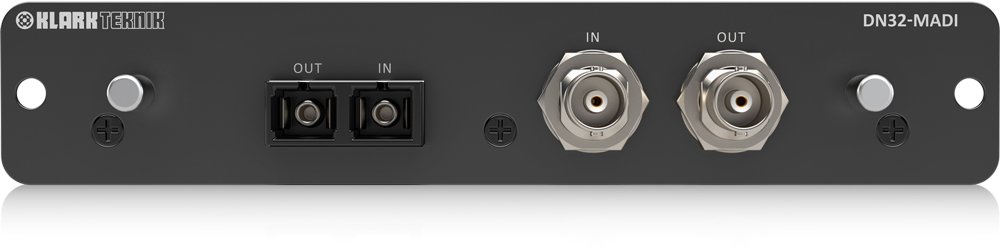

Equipped with both optical and coaxial MADI ports, the DN32-MADI ensures robust connectivity and supports network redundancy. The optical interface operates over multimode optical fiber cables, allowing for transmission distances of up to 500 meters, while the coaxial interface utilizes standard 75-ohm BNC connectors, supporting distances up to 100 meters. In the event of a primary connection failure, the secondary port automatically maintains the audio stream, ensuring uninterrupted performance.
The module operates using the MADI protocol for accurate clock synchronization across all connected devices. Users can designate the console or the MADI network as the master clock source, providing versatility in various audio setups.
Features
32-Channel MADI Connectivity: Provides 32 channels of bi-directional MADI (AES10) I/O for Midas and Behringer digital mixing consoles.Versatile MADI Formats: Supports both coaxial (BNC) and optical (SC) MADI connections for flexible integration with MADI-compatible devices.High-Quality Audio: Ensures pristine 24-bit digital audio transmission for professional-grade sound.Seamless Console Integration: Designed for Midas M32 and Behringer X32 mixers to expand digital audio capabilities.Sample Rate Compatibility: Supports multiple sample rates, including 48kHz and 96kHz, for broad application compatibility.Plug-and-Play Installation: Quick and simple to install without extensive configuration.Reliable Design: Built for demanding live, studio, and broadcast environments.
Specifications
Compatibility: Midas M32 and Behringer X32 digital mixersAudio Channels: Up to 32 bidirectional channels at 48 kHz sample rateConnectivity:Optical: SC-Duplex connector for multimode optical fiber, supporting distances up to 500 metersCoaxial: 75-ohm BNC connectors for coaxial copper cable, supporting distances up to 100 metersRedundancy: Dual-redundant operation with automatic failover from optical to coaxial connectionsClock Synchronization: Operates as either MADI clock master or slave; supports selection of 32 input and output channels (1-32 or 33-64) from 64 MADI channelsProtocols Supported: AES10-1991 (up to 56 x 56 channels) and AES10-2003 (up to 64 x 64 channels)Use Cases: Ideal for live sound, broadcasting, recording studios, and permanent installations
