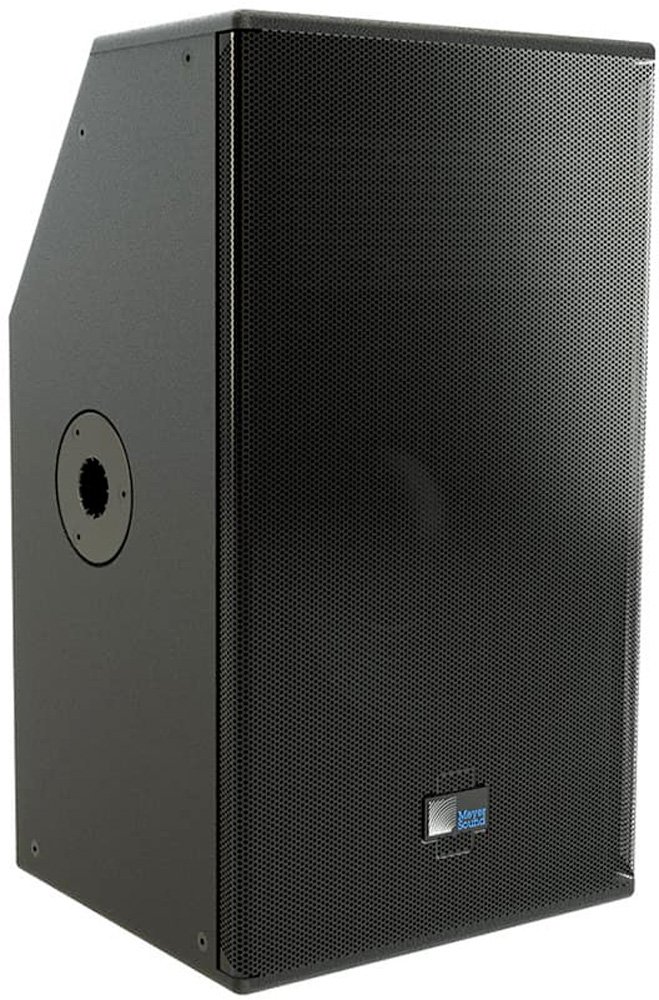

Meyer Sound USW-112P
MPN #09.298.001.03
Compact, robust bass enhancement. Versatile with Meyer Sound speakers. Clean, powerful low-end with built-in Class D amp. Flexible mounting options for any space.
Robust Bass for Any Space
DISCREET SYSTEM ENHANCEMENT
The USW-112P self-powered subwoofer delivers powerful low-frequency performance in a compact, versatile package. It's designed as an ideal companion for ULTRA'X20 loudspeaker and complements a range of Meyer Sound loudspeakers including the UPM, UP'4slim, Ashby'5C, and Ashby'8C. Its low-profile cabinet measures just 23.5 inches high by 13.5 inches wide by 12 inches deep, making it an ideal choice when space is limited.
LEAN-AND-CLEAN LOW END
Count on the USW-112P to deliver clean, low-distortion output at any output level: Its proprietary 12" low-distortion, long-excursion driver enhances low-frequency performance in the 35 to 140Hz range, and its cabinet incorporates a low-air-velocity port tuned for high efficiency, linear response, and low distortion.
POTENT PROCESSING
The USW-112P's built-in Class D amplifier delivers a linear peak SPL of 123 dB, measured using M'Noise. Sophisticated signal processing includes electronic crossover, correction filters for phase and frequency response, and driver-protection circuitry. The crossover accepts full-range signals, enabling daisy-chain signal distribution and eliminating the need for external crossovers in smaller systems.
AGILITY PLUS STABILITY
The 47-pound USW-112P fits anywhere, from churches and clubs to restaurants and small theatres. Orient it in horizontal or vertical position; its two integrated M8 mounting points can be used with an optional U-bracket to enable wall, ceiling, or truss mounting. Other options include a 35mm stand-mount receptacle with M20 threads for added stability.
Features
POWER THAT GOES THE DISTANCE
For applications where AC distribution is a limiting factor, the USW-112XP variant incorporates IntelligentDC technology, which receives balanced audio and DC power from a single composite cable"allowing for longer, lighter, conduit-free cable runs.
MONITORING MADE EASY
USW-112 loudspeakers feature advanced telemetry data when equipped with the Milan option. Users opting for analogue connectivity can still specify Meyer Sound's RMS platform, which lets you monitor essential performance parameters right from your Mac or Windows PC running Compass control software.
STYLES FOR ALL SEASONS
The USW-112P's premium birch plywood cabinet is available in custom finishes; a weather-protection option features sealed connectors, eliminating the need for rain hoods.
EXTREMELY WELL-CONNECTED
The USW-112 may be configured with any of four connector panel options. Two AC-powered versions feature looping Powercon connectors with either 3-pin or 5-pin XLR audio I/O and optional RMS remote monitoring; an IntelligentDC variant receives audio and DC power over single cable via its 5-pin Phoenix connector. A Milan version features looping Neutrik TOP True1 connections for power and a single TOP Ethercon for audio over IP and telemetry data.
