With exceptional sonic properties, new functionalities and usual rock solid Maselec quality, the MTC-1X is
an ideal alternative to the MTC2 mastering console.

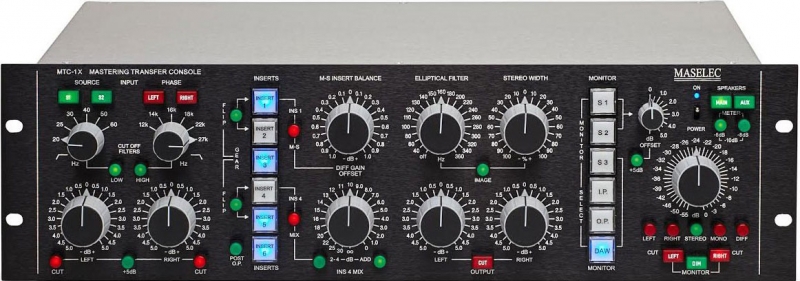

The MTC-1X measures 3 U height with a depth 'behind panel' of 260mm and 8kg weight. The front control surface has 42 pushbutton controls with LED lights and 11 high quality rotary switches. Gold XLRs are used for all audio connections, assisting the use of highest quality cables. Connecting and rearranging external equipment is very easy.

The MTC1 is structured into four different sections:

1. The Input section:

Input source selection

Phase invert for left and right

Separate Left and Right gain controls

5dB additional gain selectable for low level sources

Lowcut and Highcut filters

Independent Cut controls for left and right

2.The Insert section has six insert points and offers
additional powerful functions:

MS with gain control for the 'difference' signal

Inserts 1 & 2 equipment swap (FLIP)

Insert 4 or Inserts 24 crossfade or additive mix with the use of a rotary switch. This function could be used for 'parallel' compression or adding reverb

Inserts 4 & 5 equipment swap (FLIP)

Insert 6 can be moved to Post Output. This is the preferred position for a brickwall limiter.

3. The Output section:

Separate Left and Right gain controls

Elliptical filter with 20 frequencies

Stereo Width control

Output Cut control

The stereo image circuits are identical to the famous controls of the MTC2.

4. The Monitor section:

Four external Monitor Sources

Monitor of the Input and Output sections

Two speaker feeds

Monitor of the Stereo, Left, Right, Mono or Difference signal

Individual Cut controls for Left and Right speakers

Progressive Dim function

Meter output, which follows the monitor source

-6dB, 8dB and -10dB Meter Offsets
