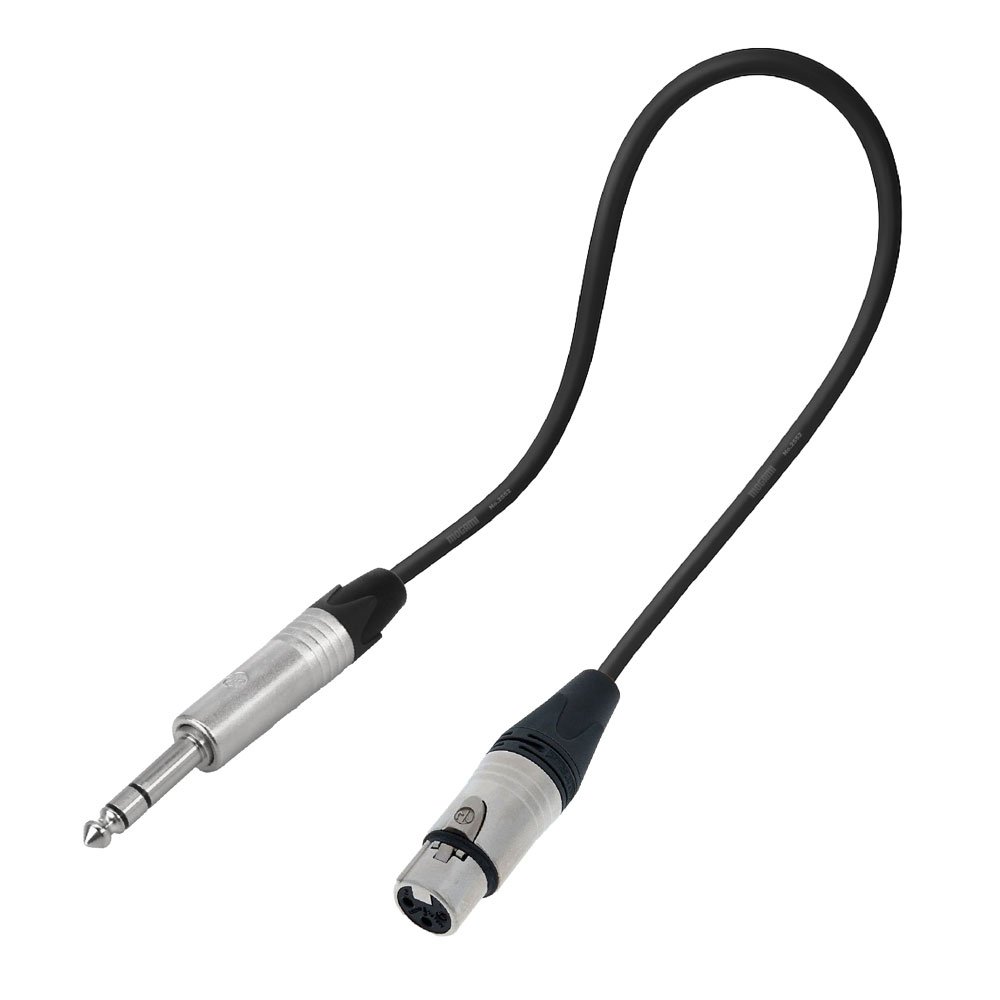

Mammoth Cables MM2552 TRS-XLRF 01'
MPN #MM2552TRSXLRF01
Made with Mogami General Purpose W2552 Mic Cable and Neutrik TRS to Female XLR Connectors. Length: 1 foot
Mogami W2552 Mic Cable
A specially developed, high-performance yet economical low-impedance balanced microphone cable, the Mogami W2552 is designed for flexibility, durability, and ease of use. Its compact size and rubber-like PVC jacket offer excellent resistance to rough handling and abrasion, making it ideal for both studio and field applications. The high-grade insulation material minimizes heat shrinkage during soldering, allowing for a clean and durable assembly when terminating to XLR connectors. Available in both overall and individually shielded configurations, this cable provides reliable performance across a wide range of professional environments.
With its extremely limp and flexible design, the W2552 suits all types of audio/visual and industrial audio applications. The use of XLPE insulation and a rugged outer jacket ensures this cable stands up to frequent use while remaining economical. Whether for fixed installations or mobile setups, it delivers professional-level performance without compromise.
Neutrik NP3X
The Neutrik NP3X is a heavy-duty, professional-grade 1/4" phone plug engineered for maximum reliability and efficiency. Building on the proven design of the C Series, it features the thinnest available A-gauge plug with Neutrik's signature chuck-type strain relief, ideal for today's high-density jackfields. The slim 14.5 mm shell fits into tight spaces while maintaining structural integrity.
Neutrik NC3FXX
The NC3FXX is the next-generation 3-pole female XLR cable connector, designed as the improved successor to the industry-standard X Series. Featuring a rugged nickel-plated housing and silver-plated contacts, it combines reliability, ease of assembly, and enhanced contact performance. This updated design introduces several innovations that ensure higher durability, better grounding, and a more secure connection in professional audio applications.
Caractéristiques
Flexible and compact design makes it easy to handle and route.Durable outer jacket resists wear, bending, and abrasion.Delivers clean, low-noise signal for professional audio use.Ideal for both studio environments and field applications.Heat-resistant insulation ensures solid, long-lasting solder points.TRS plug allows balanced connection to mixers, interfaces, or gear.XLR female connector provides a secure fit for microphones and equipment.Built for reliable performance in both fixed and mobile setups.Suitable for audio, video, and industrial applications.
Spécifications
General Specifications:
Product Name: MM2552 TRS-XLRFCable Type: Balanced Microphone Cable AssemblyConnector A: Neutrik NP3X 6.35 millimeter three-pole (TRS) phone plugConnector B: Neutrik NC3FXX three-pole XLR female connectorCable Model: Mogami W2552Application: Low-impedance balanced microphone and line-level audio signal transmission
Cable Construction (Mogami W2552)
Conductor: Two conductors of 0.08 square millimeters (28 American Wire Gauge), oxygen-free copperInsulation: Cross-linked polyethylene (XLPE)Shield: Spiral shield, 90 percent coverage, oxygen-free copperCapacitance: 67 picofarads per meter between conductorsOuter Diameter: Approximately 4 millimetersJacket Material: Rubber-like polyvinyl chloride (PVC), flexible and abrasion-resistantHeat Resistance: Low shrinkage insulation for easy solderingFlexibility: Extremely limp and highly flexible for tight routing and portable use
Connector Specifications (Neutrik NP3X):
Type: Three-pole 6.35 millimeter TRS phone plugContact Plating: NickelShell Diameter: Fourteen point five millimetersStrain Relief: Chuck-type with precision clampingHousing: Zinc diecast shell with nickel platingCable Entry Range: Four to seven millimetersStandard Compliance: A-gauge type compatible with industry-standard jacksMechanical Life: Greater than one thousand mating cycles
Connector Specifications (Neutrik NC3FXX):
Type: Three-pole XLR female cable connectorContact Plating: SilverHousing: Zinc diecast with nickel finishLocking Device: Latch lock with improved groundingStrain Relief: Polyacetal chuck typeBoot Compatibility: Fits eight millimeter maximum cable outer diameterMechanical Life: Greater than one thousand mating cyclesStandard Compliance: IEC 61076-2-103
Assembly Specifications:
Termination Method: Hand-solderedHeat Shrink Tubing: Used for insulation stability and strain reliefCompatibility: Analog audio equipment, mixers, preamps, interfaces, and patch baysShield Connection: Shield typically connected to XLR pin one and TRS sleeve
