Mackie SRM-FLEX
UPC/EAN #663961057812
MPN #SRM-FLEX
Compact portable PA system, 1300W power, 6-driver wide-dispersion array, 10" subwoofer, built-in 6-channel digital mixer, Bluetooth streaming, wireless control via smartphone
The Mackie SRM-Flex Portable Column PA System is a versatile and compact audio solution designed for a wide range of applications, from solo performances and small venues to corporate events and outdoor gatherings. This system combines a lightweight, easy-to-transport design with the renowned SRM Series sound quality, ensuring powerful and clear audio for audiences of up to 100 people. Its 1300W power output drives a custom 6-driver wide-dispersion array and a 10-inch subwoofer, delivering room-filling sound with exceptional clarity.

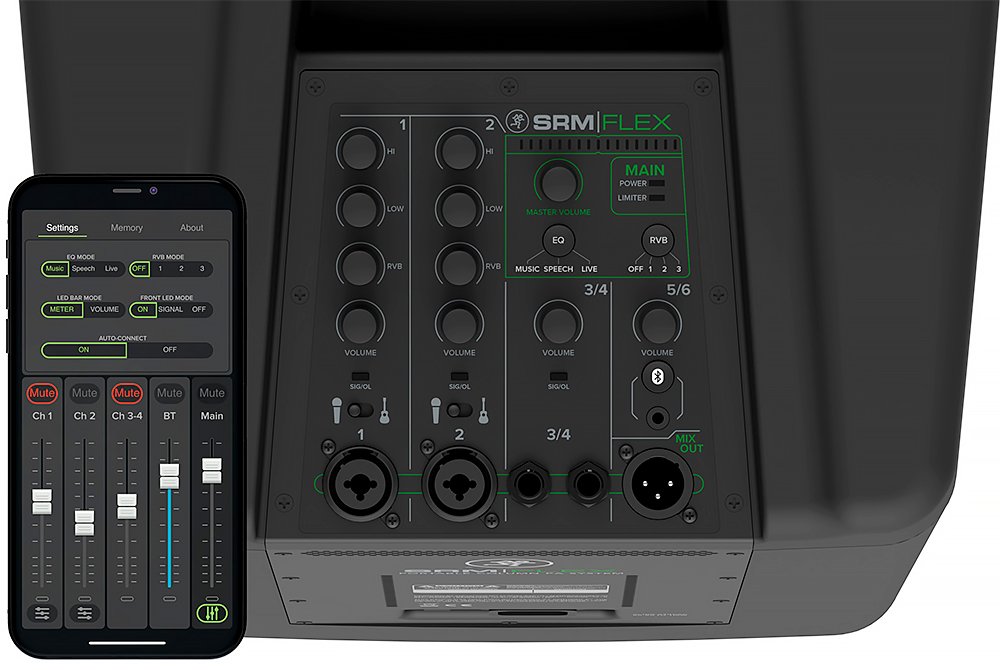

Setting up the SRM-Flex is simple and intuitive, thanks to its built-in 6-channel digital mixer. This mixer allows you to quickly dial in the perfect sound, with control over levels, EQ, reverb, and more"either through physical knobs or wirelessly via your smartphone. Additionally, the system supports Bluetooth streaming, enabling you to play music directly from your device without the hassle of cables. Whether you're a musician, DJ, or event organizer, the SRM-Flex offers a reliable and adaptable solution that fits seamlessly into any environment.
Features
Ultra-Portable with integrated Carry HandleLegendary SRM Series SoundFill The Room6-Channel Digital MixerControl, Your WayApplication Specific Voicing ModesBluetooth Control via AppAmplification Power of 1300W Peak10" Woofer and Six 2" HF DriversOnboard 6-Channel Digital MixerDSP: Reverb, 2-Band EQs & Voicing ModesMic, Line, Instrument, and Aux InputsBalanced XLR OutputIncludes Carry Bag and Dust Cover
Specifications
General
Product Type: Portable Column PA SystemPower: 1300 watts peakApplication: Live performance, public address, music playback
Acoustic Performance
Frequency Range ("10 dB): 40 Hz " 20 kHzFrequency Range ("3 dB): 50 Hz " 20 kHzHorizontal Coverage: 90Vertical Coverage: 50Maximum SPL Peak: 118 dB
Transducers
Low Frequency Driver: 10 in / 254 mm with ferriteHigh Frequency Drivers: 6x 2.0 in / 51 mm silk dome tweeters
Power Amplification
Low Frequency Amplifier: 1000 watts peak, Class D, Active Cooling, <1% THDHigh Frequency Amplifier: 300 watts peak, Class D, Active Cooling, <1% THD
System Processing
Voicing Modes: 3 modes (Music, Speech, Live)Reverb: Off, 1 (short), 2 (medium), 3 (long)
Equalization
Low EQ: +5 / "15 dB @ 90 HzHigh EQ: +5 / "15 dB @ 6.0 kHz
Input/Output
Input Types: 2x Female XLR Balanced, 4x 1/4" Balanced/Unbalanced, 1/4" StereoMic-Line Impedance: 8 k? balanced1/4" Hi-Z Impedance: 1 M? unbalancedMix Out: Male XLR BalancedMix Out Impedance: 600 ? balanced
Bluetooth
Protocol: Bluetooth 4.2Function: Audio Streaming and User Interface ControlClass: Bluetooth Class 1
Crossover
Crossover Frequency: 600 Hz (18 dB Butterworth)
Power Supply
Line Input Power: ~100 " 240VAC, 50 " 60 Hz, 110WAC Connector: 3-Pin IEC 250VAC, 10 A malePower Supply Type: Switchmode
Safety Features
Input Protection: Peak and RMS limiting, power supply and amplifier thermal protectionStatus Info: Input/output levels, reverb levels, signal/overload (SIG/OL), EQ settings, speaker mode
Construction
Basic Design: AsymmetricalEnclosure Material: PolypropyleneEnclosure Finish: Black PolyureaGrille Material: Perforated steelGrille Finish: Powder-coated blackHandles: One on top panel of the base stationOperating Temperature: 0 " 40 C / 32 " 104 F
Dimensions
Base Station (H x W x D): 17.0 in / 432 mm x 13.0 in / 330 mm x 14.2 in / 361 mmHigh Frequency Section (each): 22.5 in / 572 mm heightTotal Height with Base: 79.0 in / 2007 mmWeight (total): 29.6 lb / 13.4 kg
Accessories Included
Carry bag for array module and extendersProtective cover for subwoofer/mixer module
