Mackie ONYX8
UPC/EAN #663961058888
MPN #ONYX8
$573.74 (Special)
Save $101.25, Regular $674.99
8-channel analog mixer, Onyx preamps, 3-band EQ per channel, Bluetooth streaming, 24-bit/96kHz USB recording, multitrack capability, robust metal chassis in a compact design
The Mackie Onyx8 is a compact, premium 8-channel analog USB mixer designed for high-quality recording and content creation. It's equipped with award-winning Onyx mic preamps for ultra-clear sound and features a 3-band Perkins EQ inspired by vintage British consoles, allowing for precise tonal shaping. The mixer supports multitrack recording at up to 24-bit/96kHz via USB or directly to an SD card. It also includes Bluetooth streaming, built-in customizable effects, and a robust "Built-Like-A-Tank" design for durability in mobile setups.
Features
Classic Sound, Modern PerformanceMultitrack Recording via USB or SD card, up to 24-bit/96kHzAward-Winning Onyx Preamps for Pristine AudioPowerful FX Engine with Customizable PresetsStudio Command Interface with Full-color LCDBluetooth Streaming
Specifications
General Features
8-channel premium analog mixer with multi-track USB.Onyx mic preamps with up to 60dB gain.24-bit / 96kHz multitrack recording.Ultra-low-noise design.Perkins "British-style" 3-band EQ with sweepable midrange.Built-in DSP effects: reverb, delay, chorus, and more.Bluetooth streaming to a dedicated mixer channel.SD card recording/playback capability.USB 2.0 interface with 2x2 stereo outputs.LCD display for easy navigation and file browsing.Sealed rotary pots and backlit buttons for durability and visibility.
Inputs and Outputs

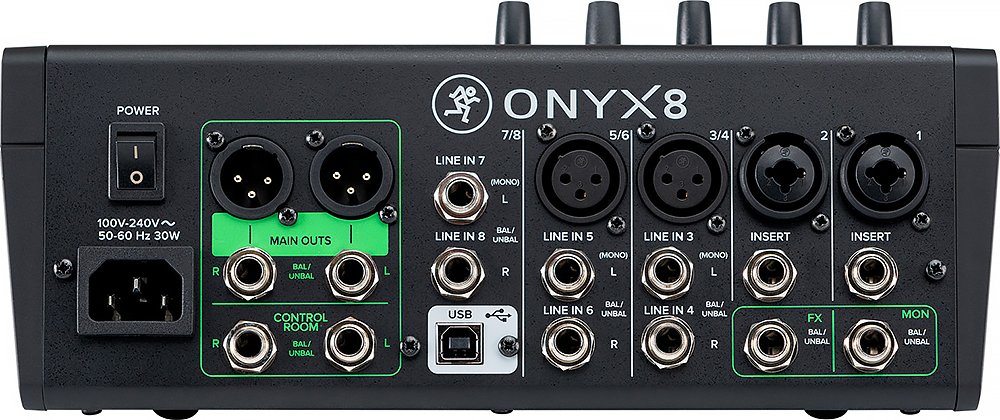

Mic Inputs: 4 XLR mic/line channels with phantom power.Hi-Z Inputs: Direct connection for guitars and basses.Line Inputs: Multiple stereo line inputs.Bluetooth Input: Wireless streaming.Outputs: Main mix XLR, stereo line outputs, control room outputs.Headphone Output: Dedicated level control.
Equalization
Low: ±15 dB @ 80 Hz.Mid (Mono channels): ±15 dB, sweepable 100 Hz " 8 kHz.Mid (Stereo channels): ±15 dB @ 2.5 kHz.High: ±15 dB @ 12 kHz.Low Cut Filter: 18 dB/octave @ 100 Hz.
Noise Characteristics
Equivalent Input Noise (EIN): -128 dBu.Residual Output Noise: -98 dBu (all outputs, master levels off).
Attenuation and Crosstalk
Adjacent Inputs @1 kHz: -90 dB.Inputs to Outputs @1 kHz: -80 dB.Fader Off @1 kHz: -85 dB.Mute Switch @ 1 kHz: -90 to -100 dB.
Metering
Main L/R Mix: 12-segment stereo meters (OL, +15, +10, +6, +3, 0, "2, "4, "7, "10, "20, "30).
Power Requirements
Power Consumption: 30 watts.Universal AC Power Supply: 100 " 240 VAC, 50 " 60 Hz.Power Connector: 3-Pin IEC Line Cord.
Physical Dimensions
Height: 4.5 in / 114 mm.Width: 10.5 in / 267 mm.Depth: 11.0 in / 279 mm.Weight: 7.1 lb / 3.2 kg.
Software
Includes Waveform? OEM recording software and DAW Essentials? plugin bundle.
