Mackie MR824
UPC/EAN #663961052442
MPN #MR824
The MR824 Studio Monitor is an 8" powered 2-way reference speaker that is designed for mixing and monitoring in your home or project studio
It features a logarithmic waveguide system that aims to minimize reflections and diffractions for a wider sweet spot, plus a custom-tuned rear port to help ensure an even bass response.
The MR824 is equipped with matched amps and drivers for an optimized 85W Class-A/B bi-amplified system. The speaker can also be optimized to your mixing environment with the adjustable acoustic space filters designed to maintain a flat response in typical placement configurations. Additionally, a high-frequency filter applies a boost or cut to compensate for particularly bright or dull sounding rooms.

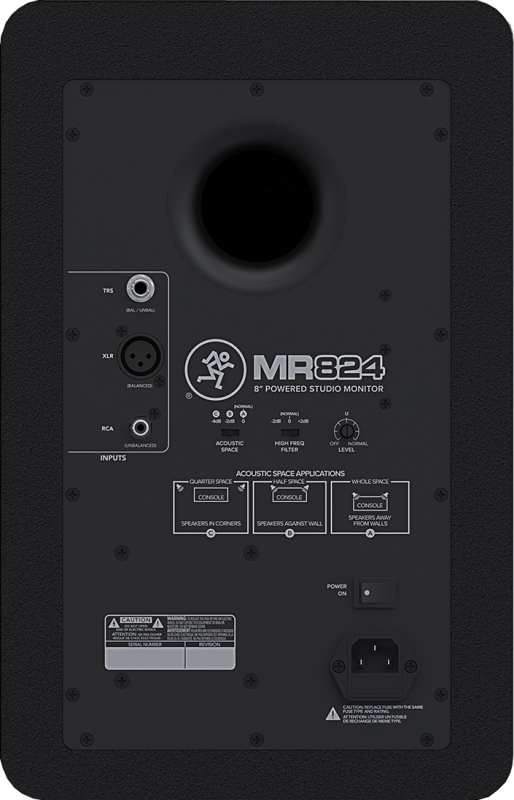

The MR824 has been designed with flexibility in mind, featuring XLR, TRS and RCA monitor inputs. The speaker has been housed in an all-wood cabinet that has been treated with acoustic absorption material for a tighter response. Additionally, the MRS10 studio subwoofer can be added for a more powerful, extended low end.
Features
Designed for superior mix translation and accuracy for professional results in any studioEquipped with Mackie's proven logarithmic waveguide design - Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot
- Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum
1" silk dome tweeter provides fast transient response for detailed high end and vocal clarity8" polypropylene woofer delivers responsive, dynamic low frequency response85-watts of bi-amplified Class A/B amplificationFrequency response: 35 Hz - 20 kHzOptimize MR monitors for your mixing environment - Adjustable acoustic space filters maintain flat response in typical placement configurations
- HF filter applies boost or cut to compensate for particularly dull- or bright-sounding rooms
Professional all-wood cabinet design built to last and look great in any studio - Custom-designed internal bracing adds stiffness for reduced distortion and enhanced low-frequency response
Flexible inputs for simple connection to almost any audio sourceAcoustically optimized with sound-tightening acoustic absorption materialAdd the optional MRS10 studio subwoofer for powerful, deep low-frequency extension, well suited for electronic music, hip-hop and more
Specifications
Frequency Response: 38 Hz to 20 kHz, (-3 dB), 35 Hz to 20 kHz, (-10 dB)
SPL: 107 dB SPL @ 3.3' / 1.0 m (+4 dBu into balanced input)
Maximum SPL: 113 dB SPL @ 3.3' / 1.0 m (per pair)
Transducer: Low Frequency: 8.0" / 203 mm (polypropylene-coated woofer), High Frequency 1.0" / 25 mm (silk dome tweeter)
Power: 85 W
Crossover: Crossover Frequency: 1.9 kHz
Controls and Processing: Power, Level, HF-boost/cut, Acoustic space control
AC Power: 100 to 120 VAC
Enclosure: Rugged all-wood design, internal acoustic absorption material, minimum-diffraction molded baffle, custom-tuned zero-turbulence rear port, logarithmic waveguide, and textured finish
Dimensions: 15.7 x 10.9 x 13.2" / 401 x 277 x 335 mm
Weight: 33.1 lb / 15.0 kg
