Maag Audio PREQ4-500
UPC/EAN #860004805502
MPN #PREQ4-500
$979.00
Save 31.3%, MSRP $1425.00

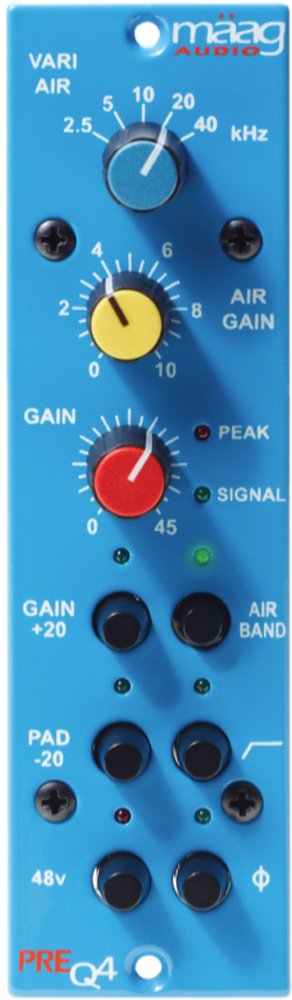

Series 500, 1 Channel, PREQ4 Microphone Preamplifier with AIR BAND
The PREQ4 (500 Series) is a one channel microphone preamplifier with AIR BAND (shelf boost from 2.5 to 40kHz via VARI AIRTM), compatible with the API 500-6B lunchbox and 500VPR rack systems. Following its PreQ3 predecessor, the PREQ4 provides unparalleled transparency and top end presence while maintaining the true natural sound behind the microphone.
Presented in the flagship lunchbox portable format, the PREQ4 offers the legendary AIR BAND, 65dB adjustable gain, phase reverse capability, 70Hz high pass filter, +48V phantom power, and -20dB PAD. The Maag Audio PREQ4 is an official member of the VPR Alliance.
Features
- Max Gain
- Frequency Response
- Nominal Input Impedance XLR)
- Nominal Output Impedance (XLR)
- Equivalent Input Noise
- Headroom
- Maximum Phase Shift
- THD + Noise
Specifications
Max Gain: 65 dB
Frequency Response: -3 dB points, 10Hz & 75kHz
Nominal Input Impedance (XLR): Mic, 150 ohms/1.61K ohms, balanced
Nominal Output Impedance (XLR): 50 Ohms, actively balanced
Equivalent Input Noise: -128 dBu (-96 dBu Actual Metered Noise)
Headroom: +27 dBu
Maximum Phase Shift: 25
THD + Noise: < 0.007%
