MPN #LYN-HILO2-DNT

$5795.00

Save 13.9%, MSRP $6730.00
Financing available
Free shipping in Canada. Conditions

Reference A/D D/A Converter System Two-channel 24-bit / 192 kHz Analog I/O Headphone Amplifier, Flexible monitor controller



Hilo is for professionals who demand the purest audio quality. Engineered to be a true all-in-one device, Hilo offers class-leading AD/DA conversion, built-in metering and analysis, multiple ins and outs, hyper-flexible routing and monitoring control " all easily saved and recalled via touchscreen, whatever work you do.
  • Mastering with an analog chain
  • Mixing with multiple speakers
  • Location sound recording
  • Voice recording and overdubbing
  • Audiophile listening
  • Archiving

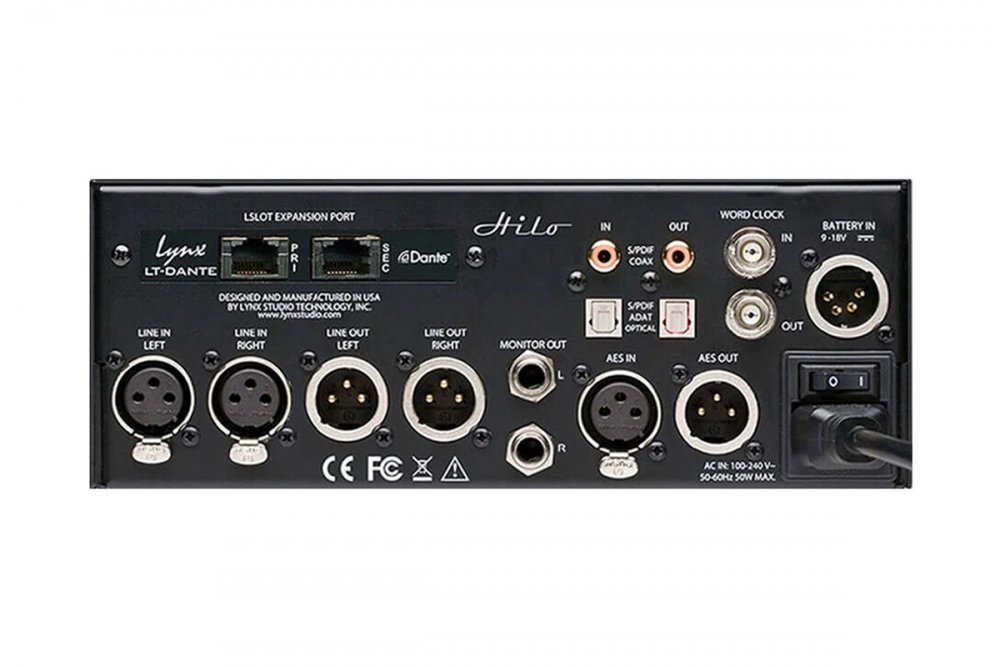

  • ANALOG INPUTS
    2 Balanced XLR connections with 8 trim level settings

    ANALOG OUTPUTS
    2 Balanced XLR connections with 8 trim level settings
    2 Balanced TRS connections Monitor Out Headphone TRS connection

    DIGITAL INPUTS & OUTPUTS
    AES/EBU: Transformer-coupled XLR connector S/PDIF via Coaxial or Optical connector
    ADAT via Optical Connector (8 channels at 48 kHz) Computer connectivity via LT-USB, LT-TB3
    or LT-DANTE
  • Pristine, independently coupled 2 in, 6 out, AD/DA conversion with digital expansion up to 16x16.Unique touchscreen interface. Forever upgradable through our free firmware updates.
  • Future-proof LSlot design with swappable USB, Thunderbolt and DANTE cards.Real-time meters and analysis tools, hyper-flexible routing and monitor control.
  • Powered by mains or 9-18v DC battery packs for location recording.Lynx's class-leading transparent audio quality.
  • Hilo 2: Upgraded conversion technology provides even more transparent performance.Hilo 2: SynchroLock 2 sample clock provides faster locking and better tracking of external clocks with 7ppm absolute accuracy.
  • Hilo 2: In-plane switching LCD with capacitive touch provides significant increase in brightness, uniform off-axis viewing, and improved touch responsiveness.Hilo 2: Upgrade path to higher sample rates above 192kHz and DSD on input and output.
  • Hilo 2: Selectable linear and minimum phase filters on line I/O.
  • Analog Performance
    Line in L/R (Preliminary)
  • THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trim
  • Dynamic range: 122dB @ A-weighted, -60dBFS signal method
  • Frequency response: ±0.01dB, 20"20kHz
  • Crosstalk: -140dB maximum @ 1kHz, -1dBFS signal
  • Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
  • Female XLR connectors

  • Line out L/R (Preliminary)
  • THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trim
  • Dynamic range: 122dB @ A-weighted, -60dBFS signal method
  • Frequency response: ±0.02dB, 20"20kHz
  • Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
  • Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
  • Male XLR connectors

  • Monitor out L/R
  • THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
  • Dynamic range: 121dB, A- weighted, -60dBFS signal method
  • Frequency response: ±0.02dB, 20-20kHz
  • Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
  • Output level at max: +24dBu or +10dBu, jumper selectable
  • 1/4" TRS connectors

  • Headphone out
  • THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
  • Dynamic range: 121dB, A-weighted, -60dBFS signal method
  • Frequency response: ±0.02dB, 20-20kHz
  • Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
  • Output level at max: +19dBu
  • 1/4" headphone jack

  • Digital I/O
  • AES/EBU: transformer-coupled on XLR connectors
  • S/PDIF I/O coax: transformer-coupled on RCA jacks
  • S/PDIF I/O optical: on optical connectors
  • ADAT I/O: 8 channels at 48 kHz when selected on optical connectors

  • Other
    Sample Rates
  • All standard rates up to 192 kHz using SynchcroLock sample clock generator

  • Synchronization Sources
  • Internal
  • External word clock I/O: 75ohm TTL signal on BNC connectors AES/EBU or S/PDIF inputs

  • Computer Connectivity
  • Windows 64-bit drivers provided by Lynx
  • Macintosh macOS USB drivers provided by Apple
  • Macintosh macOS Thunderbolt drivers provided by Lynx

  • LSlot Expansion Port
  • Supports Lynx LSlot expansion cards with up to 16 input and outputs simultaneously

  • LCD Display
  • 480 x 272 LCD Touch Screen

  • Software
    Hilo Remote
