Lectrosonics M2TND
MPN #M2TND

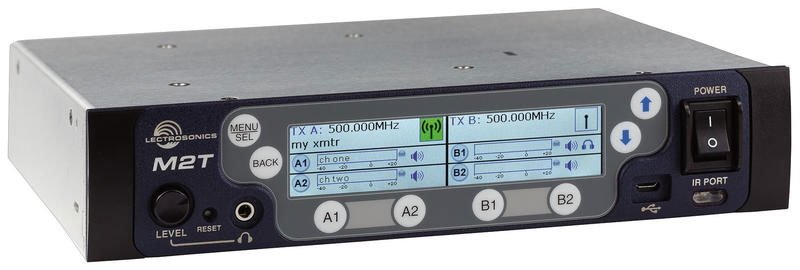

The M2TND Digital Half-Rack Transmitter with analog audio inputs presents an excellent sounding IEM system with a unique level of performance in a wireless in-ear monitor system
With ultra-low latency 24-bit audio, digital RF modulation and two stereo digital channels, the M2T provides an unique IEM product for demanding, professional applications.
The M2T boasts a USB port for firmware updates and an IR port for fast setup. A large, high resolution, backlit LCD and large membrane switches provide an intuitive interface that is highly visible in daylight or dimly lit conditions.
The half-rack transmitter provides four analog audio inputs. The input connectors are full size XLR/TRS combo types for balanced line level analog signals. Input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise. Analog signals are converted to an internal 24-bit digital format which is then encoded, organized into packets, and passed to an RF modulator. The modulated RF signal is filtered before and after amplification to suppress out-of-band noise and spurious signals.
Conventional in-ear wireless monitor systems rely on decades-old technology: FM transmission with multiplexed, companded audio. The M2T Transmitter employs unique technology to provide ruler-flat frequency response from 20 Hz to 15 kHz and maximum channel separation. In addition, the digital audio eliminates a compandor and the associated artifacts. The result is crystal clear sound, rock solid stereo imaging, and extremely low distortion of <0.05%.
The M2T is designed and developed with the professional touring, installation, theater and broadcast customers in mind. The transmitter chassis is all-metal. The front panel is an aluminum extrusion with a durable powder coat finish.
The M2T half-rack transmitter features transmission power of up to 50 mW for extended operating range. Locking XLR connectors facilitate up to four channels of analog audio sources to be applied to the transmitter. A large, high resolution, backlit LCD and large membrane switches provide an intuitive interface.
Firmware updates are made via the USB port on the front panel of the housing. The procedure is very simple using a menu item on the transmitter and a standard micro USB cable connected to a PC.
Setup and adjustment are enabled through a backlit LCD, membrane switches and an intuitive menu structure. Input gain is adjustable over a wide range in 1 dB steps to optimize modulation and limiting for maximum signal to noise ratio and minimum distortion.
Features
IEM (Wireless Monitor) with digital RF transmission24-bit digital audio2 independent stereo audio transmissions per 1/2 RV enclosureUSB port for firmware updatesIR (infrared) port for fast setupUp to 50 mW per Rf carrierSolid machined aluminum housing
Specifications
RF Power Output: 2 RF carriers, 25 mW, 50 mW; adjustable.
Antenna Output: 2 x BNC sockets
Operating Frequencies: 470.1 - 607.975 MHz
Frequency Selection Steps: 25 kHz
Frequency Stability: ± 0.002%
Modulation: 8 PSK
Emission Designator: 200KG7E
Spurious Radiation: >90 dB below carrier
Equivalent Input Noise: -128 dBV
Audio Frequency Response: 20 HZ - 15 KHZ +/- 1 dB
Audio Input: -10 dBv or +4 dBu settings w/ ±5 dB trim
Audio Input Jack: 4 x combo XLR/TRS connectors
Ethernet Connection: RJ45
USB Connection: Micro USB on front panel for firmware updates
IRDA: IR transceiver for sync of receivers
Input Impedance: Line, 2k Ohm
Power Requirements: 9-18V DC
Power Consumption: 5 Watts
Dimensions: 1.75" x 8.375" x 7.75" (44.45 x 212.7 x 196.8 mm)
