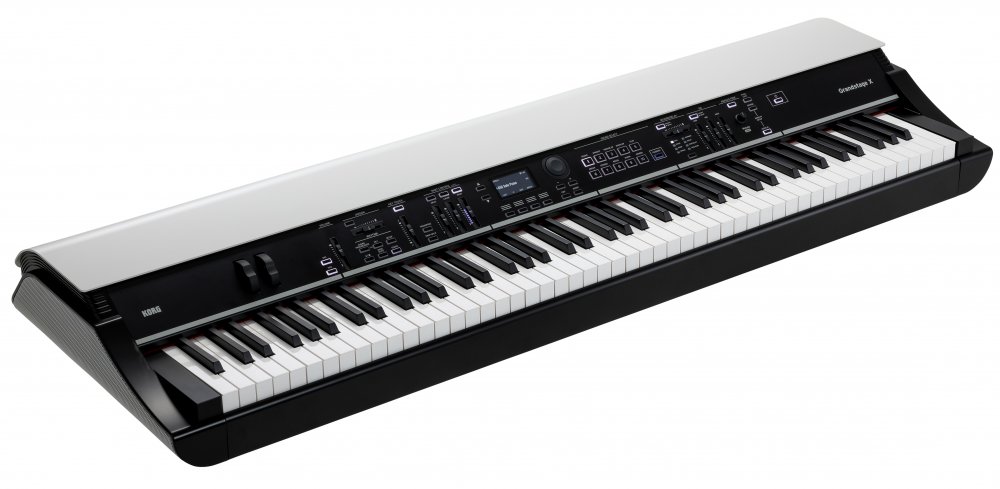

Korg Grandstage X
UPC/EAN #4959112235304
MPN #GRANDSTAGEX
$4099.99
Save 27.9%, MSRP $5690.00
Pro 88-key stage piano with seven inspiring sound engines and 700 preloaded sounds
Striking New Look, Inspiring New Sounds, Completely Redesigned Stage Piano - the Grandstage X
Meet the Grandstage X, Korg's flagship stage piano, now completely redesigned with seven inspiring sound engines, 700 preloaded sounds, a user-friendly interface, and a sleek aesthetic design. Every aspect of the Grandstage X is intuitively arranged, empowering you to select and play your favorite sounds effortlessly. With its elegant, light ivory two-toned body and perforated side panels, the Grandstage X not only delivers the highest sonic quality but also stands as a visual centerpiece whether on stage or in the studio.
Grandstage X is not just a stage piano; it's a statement of excellence. Prepare to elevate your performance and let the Grandstage X take you and your music to new heights.
Seven Inspiring Sound Engines
The Grandstage X features seven independent sound engines, each capable of standing alone as a separate product. These sound engines provide unparalleled sonic and performance quality for a wide range of sounds, setting Grandstage X apart as the flagship among stage pianos.
Premium Piano and Electric Piano Sounds with SGX-2 and EP-1
Equipped with the SGX-2 acoustic piano sound engine, Grandstage X includes a large library of world-renowned pianos. SGX-2 offers the subtle and powerful expressiveness of an acoustic piano at the highest level, with non-looping samples on all keys, velocity switching of up to 12 levels, damper resonance that reproduces the sound of pedal pressure, and even mechanical noise. The result is a piano sound that delivers the subtle and powerful expressiveness of an acoustic piano at the highest level.
Grandstage X features 13 main pianos, including 6 well-known grand pianos selected from German, Italian, Japanese classic grand pianos. The new GSX Piano and Nautilus Piano can even be layered with the GSX Far Piano and Nautilus Far Piano to create the perfect piano ambience of your choice.
Other piano sounds include the familiar upright and small grand pianos, the OASYS Piano popular with band ensembles, the legendary SG1D Korg stage piano, the M1 Piano essential for 80's and 90's POPS, and the fortepiano, a period instrument, just to name a few.
In response to requests from many professional players, three mono piano tones and a midrange-focused tone variation are available. These mono piano tones, voiced from a dedicated mono recording source, and a piano tone that does not interfere with the EQ bandwidth of other instruments in a band, provide unparalleled clarity and harmony and offer previously unavailable performance options.
The electric piano sound source "EP-1" adds the Tine I Early to the typical model that uses a metal bar (tine) striking method. Its earthy, distorted tone reproduces the familiar sound we all know and love from so many classic records. The collection also includes seven other vintage electric piano sounds: Tine I Late, Tine II, Tine V, DMP, and the 200 and 200A, which are based on the method of striking the diaphragm (reed). MDS (Multi-Dimensional Synthesis) technology, an evolution of the velocity switch concept, responds smoothly to even the most delicate keyboard touches. The German EP and Tablet EP are available for the enthusiast with sound design that perfectly simulates and applies realistic amps, cabinets, and even vintage effects.
Three Unique Organ Sounds with CX-3, VOX, and FC-1
The tone wheel organ sound source "CX-3" is a perfect reproduction of the famous Korg combo organ. The transistor organ sound source "VOX" reproduces the sound of the VOX organ, which was released in the 1960s and had a great influence on popular music. The other transistor organ sound source, FC-1, reproduces the small organ that dominated this era along with the VOX organ. Combined with the rotary speaker effect built into the sound source and the vibrato effect, you can really enjoy the pleasure of playing the organ.
Diverse Range of Sound Options from AL-1 and HD-1
Grandstage X boasts a total of 700 sound programs. In addition to the five sound engines listed above, Grandstage X also includes the AL-1 analog modeling sound source for crisp leads and thick brass sounds, and the HD-1 PCM sound source for a wide variety of tones and instruments. The HD-1 includes many distinctive keyboard instrument sounds, such as the 8-step multi-sampled Clavi D and Clavi E, harpsichord, pipe organ, the 6-step multi-sampled electric grand piano, and the FM electric piano with its unique metallic sound.
A Stunning Design Worthy of Flagship Status

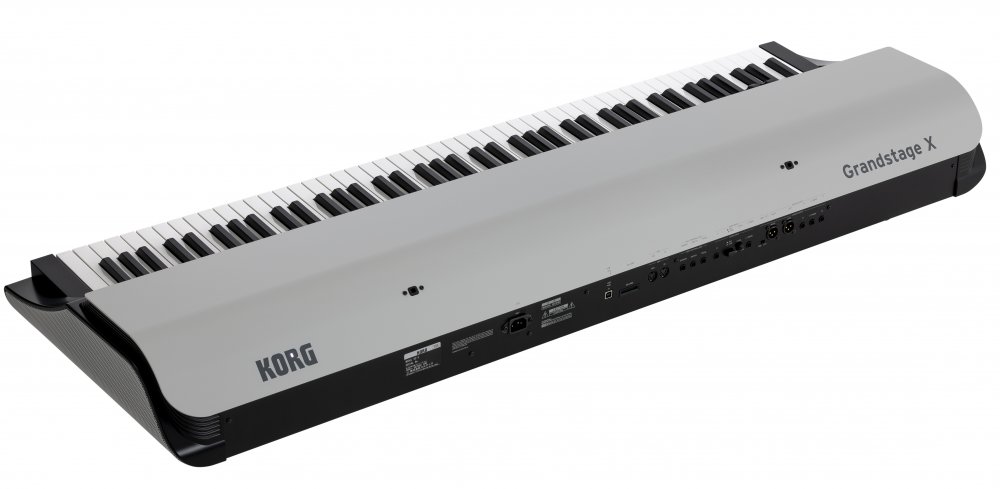

Grandstage X features a distinctive design that is instantly recognizable and is destined to become iconic. The solid, painted aluminum body is designed with smooth curves, and the curves that rise from the bottom to the sides are made of perforated metal. The vintage and futuristic look of the design is combined with a light ivory white top panel, creating a striking presence.
Key-Touch Slider for Instant Expressive Control
The key-touch slider allows you to instantly control how the volume and timbre of the keys change with each keystroke, allowing you to customize the playing feel of the keyboard in real time to suit the music you are playing. Simply adjusting this slider gives you the sensation of playing a more or less sensitive keybed, enhancing the expressiveness of the Grandstage X as you find the perfect position to suit your own, individual playing style.
3-Part Control Section for Splits and Layering
The part control section is neatly arranged with three buttons and sliders. The on/off button allows you to use layers and splits, and the sliders allow you to adjust the volume balance as you wish. The program name for each part is listed on the display for easy modification. Layers and splits can be used simultaneously, so for example, the right hand can be layered with piano and strings, and the left hand can be layered with bass and your own choice of bass add on.
Infuse Warmth into Your Sound with Nutube
The Analog Tone function provides an analog sound effect that can only be achieved with a tube driven sound. The ON/OFF button can be used to adjust the effect, and the knob can be used to adjust the amount of effect, so you can find the sound you like best.
Premium Japanese Crafted RH3 Keyboard for Nuanced Expression
Crafted with precision in Japan, the Grandstage X features a Real Weighted Hammer Action. The RH-3 is meticulously designed to reproduce the weight distribution of a grand piano with a heavier feel in the lower register and a lighter touch in the upper register, allowing for the nuanced expression. This sophisticated and detailed keyboard ensures a realistic and immersive playing experience of the 700 sounds on Grandstage X.
Effortlessly Thicken Sounds with the Unison Function
The "Unison" function, familiar to analog synths but unique to stage pianos, is provided. By adding this function to the synth sound or FM piano, a chorus-like expansive and outstanding effect can be obtained. The number of notes can also be adjusted by using the unison slider.
Refine Your Sound with Effects and EQ
Grandstage X provides easy control of Reverb and Delay directly on the main panel, allowing you to quickly switch between effect types and adjust the depth.
A new shimmer reverb has also been added and 3-band equalizer is also provided to adjust the overall sound character to fit the acoustic characteristics of each live venue.
User-Friendly Rhythm and Chord Progression Section
Grandstage X is equipped with a rhythm and chord progression function that is an evolution of the drum track functionality found on some Korg synthesizers. The full-fledged rhythm track consisting of drums and bass can be matched to the chords played, or to a pre-set chord progression, and can be played on the Grandstage X alone or along with the Grandstage X.
Elegant Attachable Wooden Stand
The ST-WGS wooden keyboard stand (sold separately) is specially designed to match the soft curves of the Grandstage X body. The elegance of real wood makes this stand perfect for a modern living room or any stage. The legs are crafted from wood sourced from responsibly managed forests, and provide elegant but stable support.
Features
Sound Engine: SGX-2, EP-1, AL-1, CX-3, VOX Organ, Compact Organ, D1 ? Number of Keys: 88s? Type of Keys: Real Weighted Hammer Action 3 (RH3)
?Touch Sensitivity: Velocity Supported
Aftertouch: Not Supported
? Other Controllers: Pitchbend, Mod Wheel
? Polyphony: 128 Note
? Presets: 600
? Effects: Reverb, Delay, EQ
? Audio Inputs: 2 x 1/4" TRS (L/mono, R)
? Audio Outputs: 2 x XLR (L, R), 2 x 1/4" TRS (L/mono, R)
? Headphones: 1 x 1/4" TRS
? USB: 1 x Type B
? MIDI I/O: In/Out
? Pedal Inputs: 1 x 1/4" (damper), 1 x 1/4" (footswitch), 1 x 1/4" (pedal) ? Pedal Included: DS-1H Damper Pedal
? Expansion: 1 x SD Card Slot
? Software: Izotope Ozone Elements
Specifications
Keyboard
RH3 (Real Weighted Hammer Action 3) keyboard, A0 - C8, velocity supported, aftertouch not supported
Tone Generator
Method of Synthesis and Maximum Polyphony
SGX-2 (Acoustic Piano Sound Engine)
EP-1 (Electric Piano Sound Engine)
AL-1 (Analog Modeling Sound Engine)
CX-3 (Tonewheel Organ Sound Engine)
VOX Organ (Transistor Organ Sound Engine)
FC-1 (Transistor Organ Sound Engine)
HD-1 (PCM Sound Engine)
Maximum Polyphony: 128
Preload PCM Storage Capacity
Approx. 25.5 GB (linear equivalent: approx. 51 GB)
Number of Sounds
700
Favirite
100 (including 20 preloads)
Effect
REVERB/DELAY
Reverb types: HALL, STAGE, ROOM, SPRING, SHIMMER
Delay type: DELAY, MOD DELAY, TAPE ECHO
AUDIO IN
Dyna Compressor, Exciter/Enhancer, Isolator, Multi-Mode Filter, Mastering Limiter, Limiter, Graphic EQ, Modern Compressor
EQ
3-band equalizer: LOW, MID, HIGH
ANALOG TONE
Vacuum tube analog sound effects with Nutube
Panel Interface

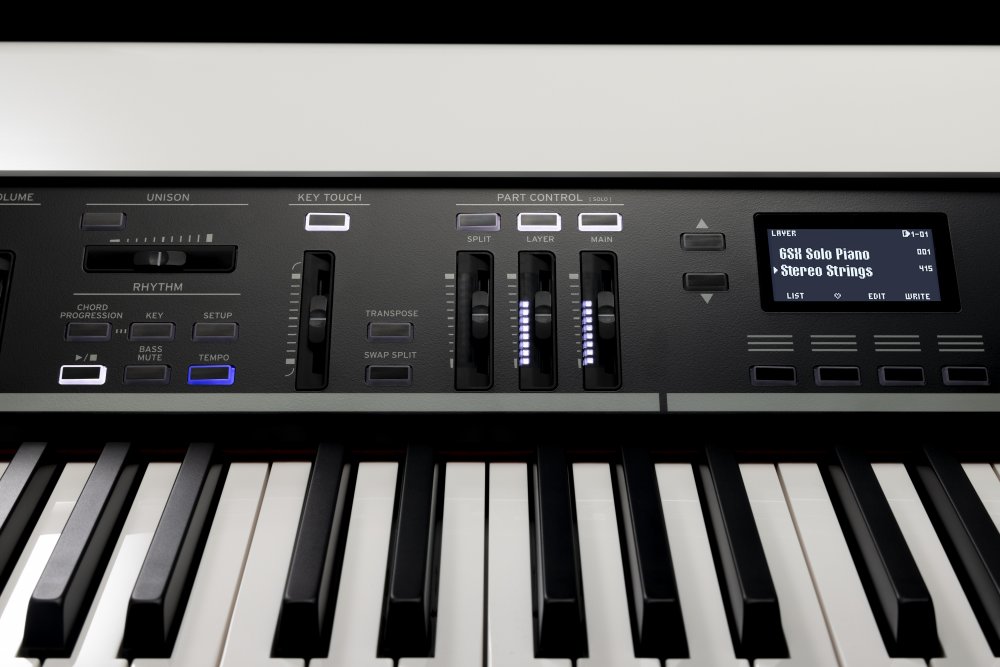

PART CONTROL section
MAIN button, MAIN slider, LAYER button, LAYER slider, SPLIT button, SPLIT slider
UNISON Section
UNISON button, UNISON slider
KEY TOUCH section
KEY TOUCH button, KEY TOUCH slider
TRANSPOSE button, SWAP SPLIT button
RHYTHM Section
CHORD PROGRESSION button, KEY button, SETUP button, PLAY/STOP button, BASS MUTE button, TEMPO button
SOUND SELECT section
1[GRAND]~10[OTHERS] button, FAVORITE button

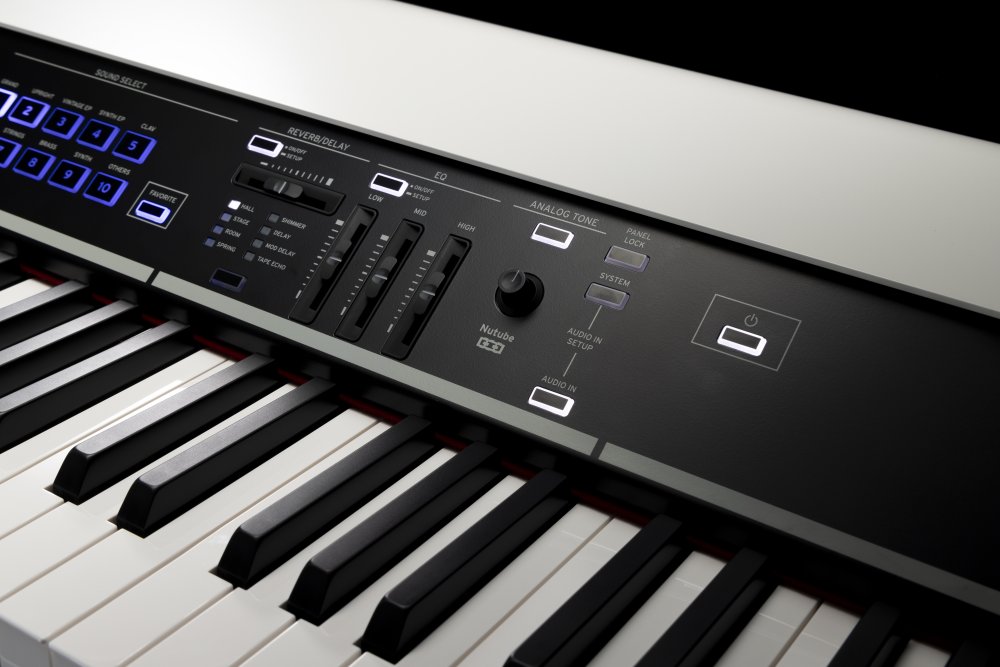

REVERB/DELAY section
REVERB/DELAY button, TYPE button, DEPTH slider
EQ Section
ON/OFF button, LOW, MID, HIGH slider
ANALOG TONE section
ON/OFF button, DEPTH knob
Other
Cursor UP/DOWN button, +/- button, function button, EXIT button, ENTER button, PANEL LOCK button, SYSTEM button, AUDIO IN button, power button
Controllers
Realtime Controller
Pitch bend wheel, modulation wheel, SW1 button, SW2 button
Principal Specifications
Frequency Response
20Hz~20kHz: +/- 1.0dB, 10k ohm load
THD+N
20Hz~20kHz 0.005%, 10k ohm load
S/N Ratio
105dB, 10k ohm load
Audio Output
AUDIO OUTPUT XLR (LEFT, RIGHT)
Connector: XLR-3-32 type (balanced) + LIFT-GND switch
Output impedance: 600 ohm
Maximum level: +16dBu
Load impedance: 10k?
AUDIO OUTPUT (L/MONO, R)
Phone connector: 6.3 mm TRS phone jack (balanced)
Output impedance: 1.1k ohm (stereo output), 600 ohm (L/Mono terminals, mono output)
Maximum level: +16dBu
Load impedance: 10k ohm
AUDIO IN
Phone connector: 6.3 mm TRS phone jack (unbalanced)
MIC/LINE switch
LEVEL knob
Headphones
Connector: 6.3 mm stereo phone jack
Output impedance: 50 ohm
Maximum level: 150mW+150mW @32 ohm
General
Control Input
DAMPER (half damper supported), SWITCH, PEDAL
MIDI
IN, OUT
Card Slot
SD Card Slot
USB
USB TYPE B x 1
Power Supply
AC power supply terminal
Dimensions (W x D x H)
1,371 mm x 461 mm x 168 mm / 53.98" x 18.15" x 6.61" (excluding music stand)
Weight
25kg / 55.12 lbs. (excluding music stand)
Power Consumption
20W
Included Items
AC cord, Music stand, Damper pedal (DS-1H)
Accessories (sold separately)
Expression/Volume
XVP-20
Foot Controller
EXP-2
Pedal Switch
PS-3, PS-1
Hard Case
HC-88KEY
Wooden Stand
ST-WGS
