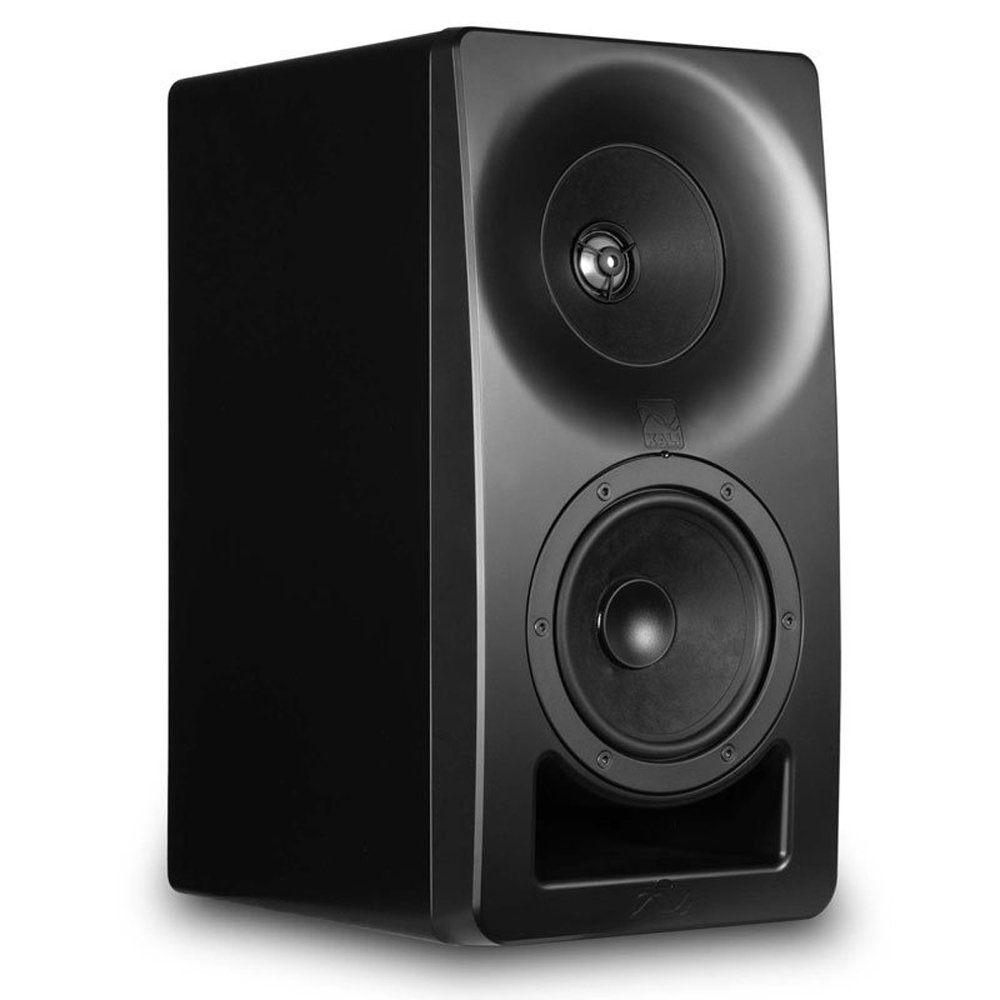

Kali Audio SM5C
UPC/EAN #860007984228
MPN #SM5C
$1349.99
Save 27.8%, MSRP $1870.00
Passive 3-way studio monitor with 5in woofer
Kali's founding principle is to deliver the best possible product for the price. Our speakers have always been praised for their accuracy, translation, and ease of use. The SM-Series builds on these ideals, and incorporates the best available materials, components, and manufacturing.
The result is a high performance studio monitor that is ready for the most demanding mixing and mastering applications.
Power: PassiveLower Frequency Response: 39 Hz90 dB @ 1M: < 1% System THDMax SPL: 117 dB
The key to the SM-Series' high performance is its 3-way coincident architecture. This design allows for the ultra-lifelike imaging of a coaxial speaker, while delivering the low distortion and midrange clarity that only a 3-way can achieve.
Not only are the midrange and tweeter coaxial, they are also coincident, meaning that they are physically time aligned and thus phase coherent from all angles.
The SM-Series speakers are acoustic point sources, and particular care has been given to the transition from the midrange to the baffle. This transition is seamless to the edge of the speaker, resulting in an engrossing stereo image where details are lifelike and crisp.
Amplification
The SM-5-C requires a power amplifier. Kali recommends bi-amplifying the speakers using an LEA amplifier with at least 100W per channel. For example, the LEA Connect 164 160W per channel 4-channel amplifier is the minimum choice for a pair of SM-5-Cs. Configuration files for LEA amplifiers can be found by clicking this link. Refer to the user's manual for instructions for programming the LEA amplifier.
If you'd like to use a different amplifier, you'll need to make sure that it can deliver 20VRMS into a 3 Ohm load. Most amplifiers rated for 100W at 4 Ohm should be sufficient, but you'll need to verify that the amplifier you select is capable of handling a 3 Ohm load. The amplifier, or some other component after the amplifier in your signal chain, will need to include a peak limiter. Using the SM-5-Cs without a peak limiter will void your warranty.
Mounting

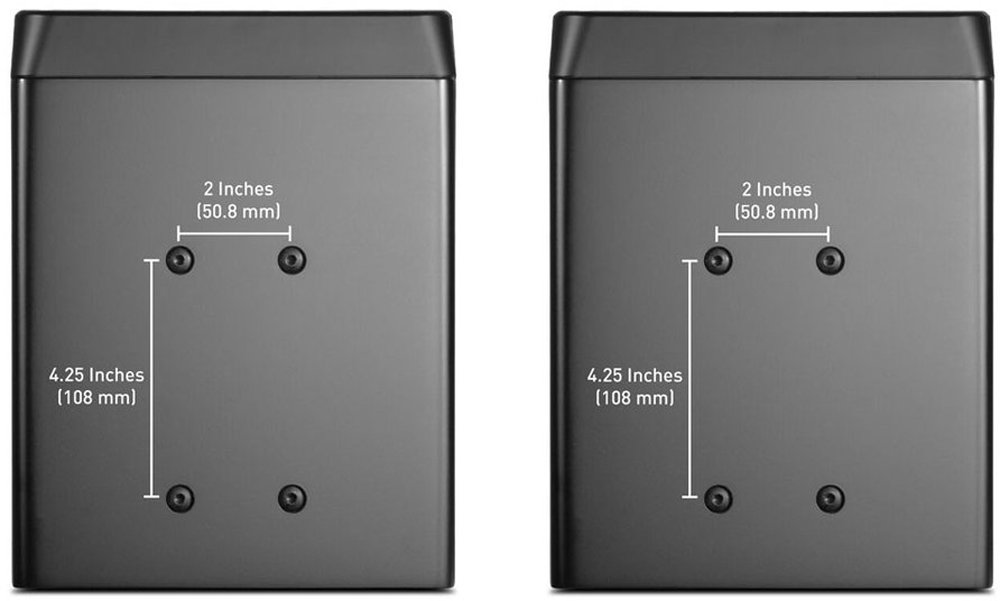

The SM"5-C features mounting holes on both the top and bottom of the loudspeaker. Kali recommends using a speaker specific U-bracket from Triad-Orbit, but any speaker mount with a 4.25 x 2-Inch bolt pattern that is capable of holding the SM-5-C's 21 lbs weight will also work.
Specifications
Self-Powered: No
Amp Options: Single Wire, Bi-Amped (Woofer, Midrange+Tweeter)
MR+HF Power Handling: 20VRMS into 3 Ohm (100W at 4 Ohm)
LF Power Handling: 20VRMS into 3 Ohm (100W at 4 Ohm)
Single Wire Power Handling: 20VRMS into 3 Ohm (100W at 4 Ohm)
HF Driver: 1-Inch Metal Dome Tweeter
Midrange Driver: 4-Inch Optimized Profile Paper Cone
LF Driver: 5" Optimized Paper Woofer
LF-to-Midrange Crossover: 280 Hz
Midrange-to-HF Crossover: 2800 Hz
Frequency Response: (-10 dB): 39 Hz - 28 kHz
Frequency Range: (+/-3 dB): 47 Hz - 21kHz
Recommended Listening Distance: 4 Meters
Max SPL: (Peak at 1 meter) 117 dB
Loudspeaker THD: (90dB SPL at 1M) <1%

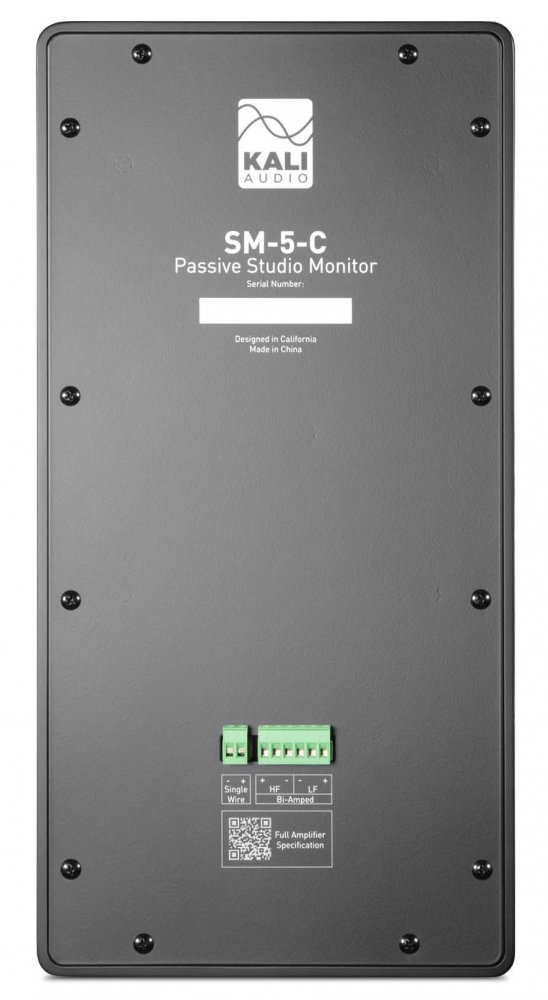

Inputs: Single Wire Phoenix Connector
Bi-Wire Phoenix Connector
Enclosure: Front Ported
Product Height: 15.6 Inches (39.6 cm)
Product Depth: 9.8 Inches (24.8 cm)
Product Width: 7.9 Inches (20 cm)
Product Weight: 21 lbs (9.5 kg)
