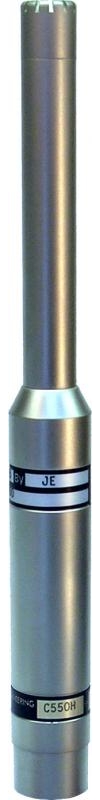

Josephson Engineering C550H
UPC/EAN #691835865621
MPN #C550H
$619.00
Save 27.3%, MSRP $851.00
The Josephson Engineering C550 series is a "half inch" model available in three sensitivity steps, each one covering an operating range of about 100 dB.
The C550H provides 10 mV/Pa output, suitable for microphone level inputs. The L version is more sensitive, for use with line level inputs, while the F version has lower sensitivity for use in high sound pressure level measurements. Frequency response is flat for on-axis sound incidence, but any of the models may also be supplied with a -D suffix for flat diffuse field response. All models may be powered with 24 to 48 volt phantom supplies, and provide symmetrical active balanced outputs. They will also operate on phantom power as low as 15V with some reduction in maximum level.
Specifications
Output Level, mV/Pa: 10.0Dynamic Range, dB SPL: 35-135Frequency Response: 20 Hz to 20,000 Hz, ±2 dBOutput Impedance: 50 (recommended load 1k)Operating Conditions: Free-fieldTransducer Type: Capacitive pressure transducer, prepolarized backplatePower Requirement: Phantom power per IEC61938 P48, <5mATemperature Range, C: -10 to +50Weight, grams: 140Connector: 3 pin XLR type, pin 2 positive polarityAccessories Supplied: Stand clamp, padded case
