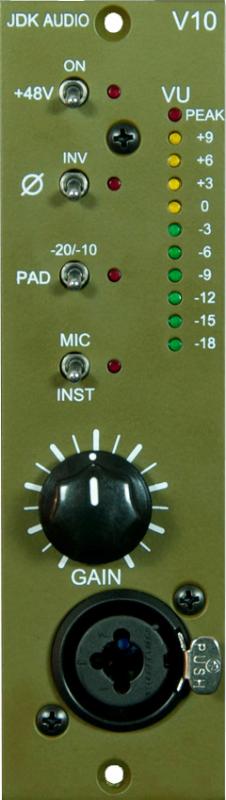

The JDK Audio V10 is a single channel professional grade microphone preamp, designed from the ground up by API Engineers to offer a versatile and high quality input for microphones
The V10 conforms to API's 500 Series format and is a member of API's VPR Alliance.
The unit features both a mic and an instrument input, with switchable phantom power, phase, and pad. Metering is a multi-segmented LED with peak indication.
Like JDK's R20, the V10 provides premium analog microphone pre-amplification designed to provide a low noise, solid front end for all audio applications. Meticulously detailed and solidly constructed, the V10 features hands-on analog control of the gain level. Individual toggle switches control the selection of 48v, polarity, pad and a mic/instrument switch.
Mic Preamplifier offers 54 dB of gainConcise LED metering for monitoring output levelFront panel, high-impedance instrument input with 45 dB of gainPad switch attenuates the microphone signal by 20 dB, or the instrument signal by 10 dBSwitchable 48v Phantom PowerLow distortion, low noise circuitryFully balanced output
Manufacturer Part Number : V10
