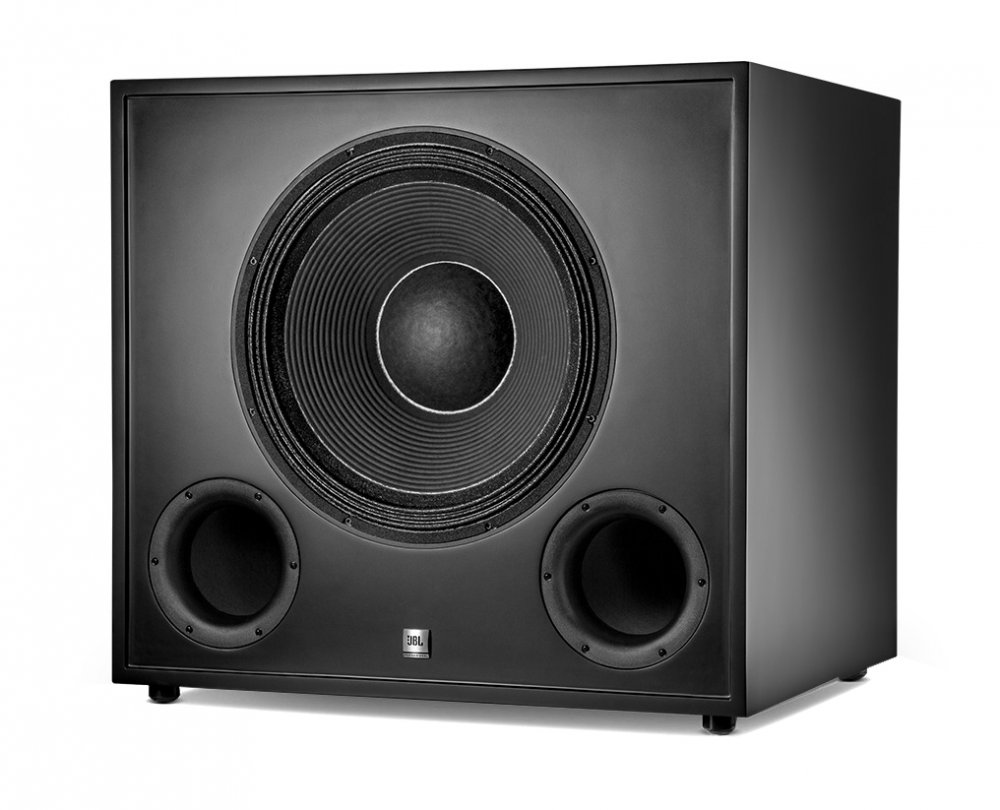

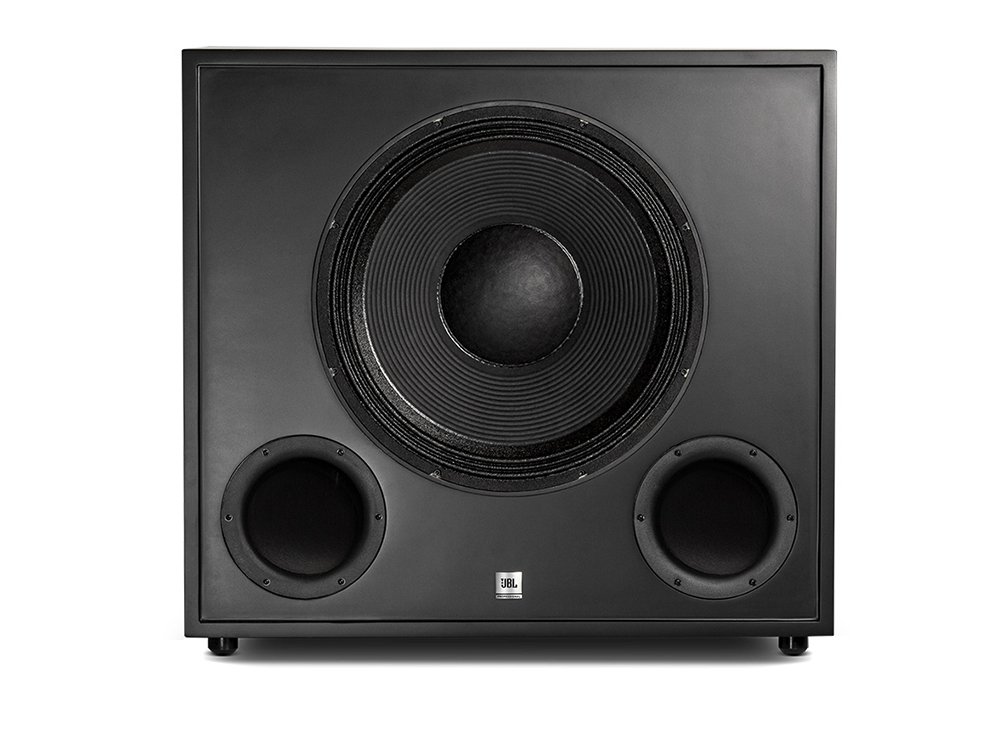

JBL SUB18
UPC/EAN #691991004698
MPN #SUB18
$5299.99
Save 17.4%, MSRP $6420.00
18-inch High-Output Studio Subwoofer
JBL's most powerful studio subwoofer with very high continuous output and extreme low frequency response.

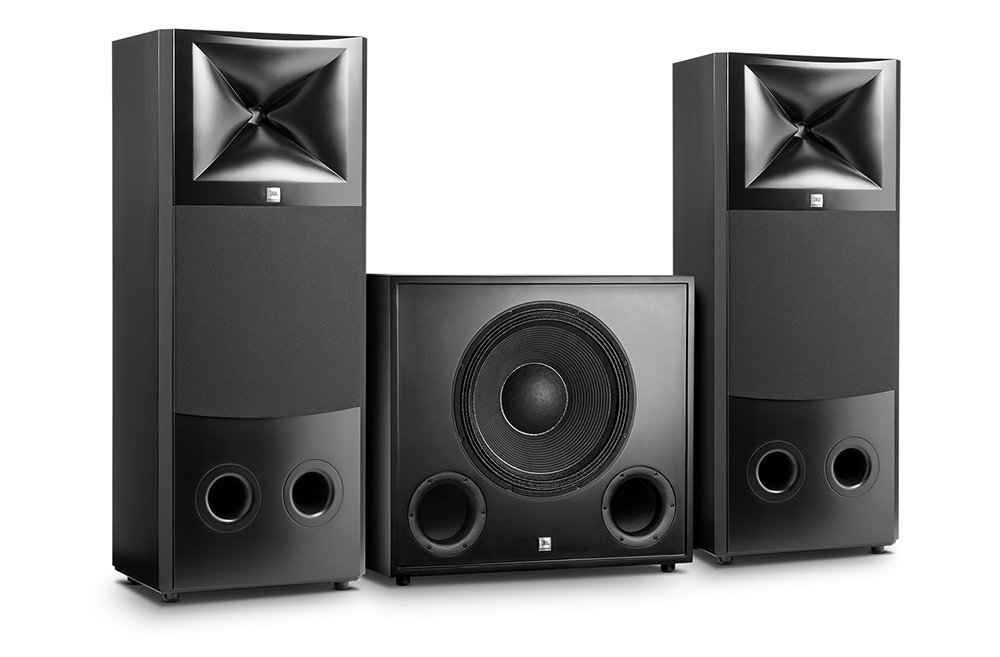

JBL introduces its most powerful studio subwoofer for applications in which very high continuous output and extreme low frequency response is required. With in-room response below 18Hz and 137 dB peak output, the SUB18 delivers unprecedented performance for demanding dance music production, while providing exceptional accuracy required in cinema post production applications. As an add-on to JBL's M2 Master Reference Monitor system, the SUB18 allows three times greater output from the system.
Specifications
In-room response (2?): Below 18 Hz
Frequency Response, -10 dB (4? measurement): 20.6 Hz
Frequency Response, -6 dB (4? measurement): 23.1 Hz
Maximum Peak SPL: 137 dB SPL
System Input Power Rating, AES/2 Hr.: LF 2000W continuous/8000W peak
Sensitivity: 92dB @ 1m, 2.83 V
Amplifier Power Rating: 3,500 to 4,000W into 8?
Recommended Signal Processing: Crown iTech HD Power Amplification. Preset for use with JBL M2 available
LF Driver: One JBL model 2269H, 18-inch (457 mm); 100mm (4-inch) dual voice coils, dual neodymium magnets. Differential Drive Direct Cooled
Rated Impedance: 8?
Enclosure: 18mm 11-ply Baltic Birch Plywood
Finish: Black Lacquer

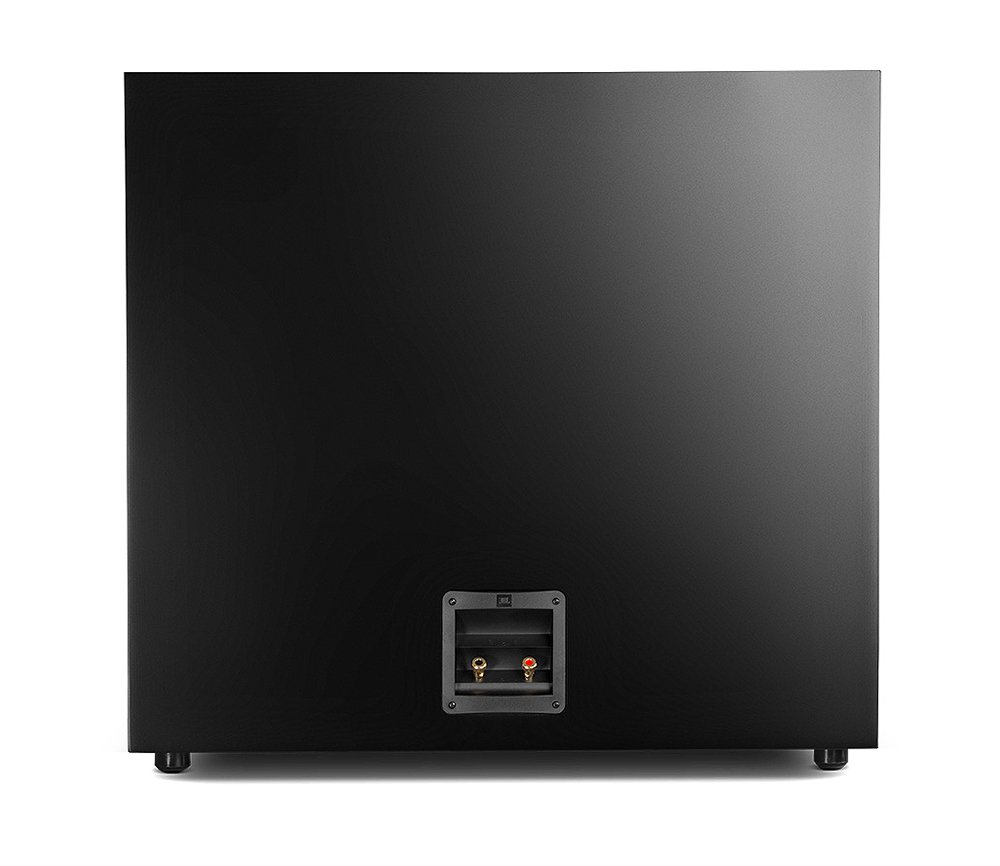

Input Connectors: 2 ea. Push Terminals
Recommended Wire: 12-Gauge
Dimensions HxWxD (including feet): 27 x 30 x 24 inches (685 x 762 x 620 mm)
Net Weight (each): 100 lbs ( 45 kg)
Frequency Response (±3 dB): 18 Hz @ 2?
