JBL SRX815
UPC/EAN #691991001635
MPN #SRX815
$1969.99
Save 17.9%, MSRP $2400.00

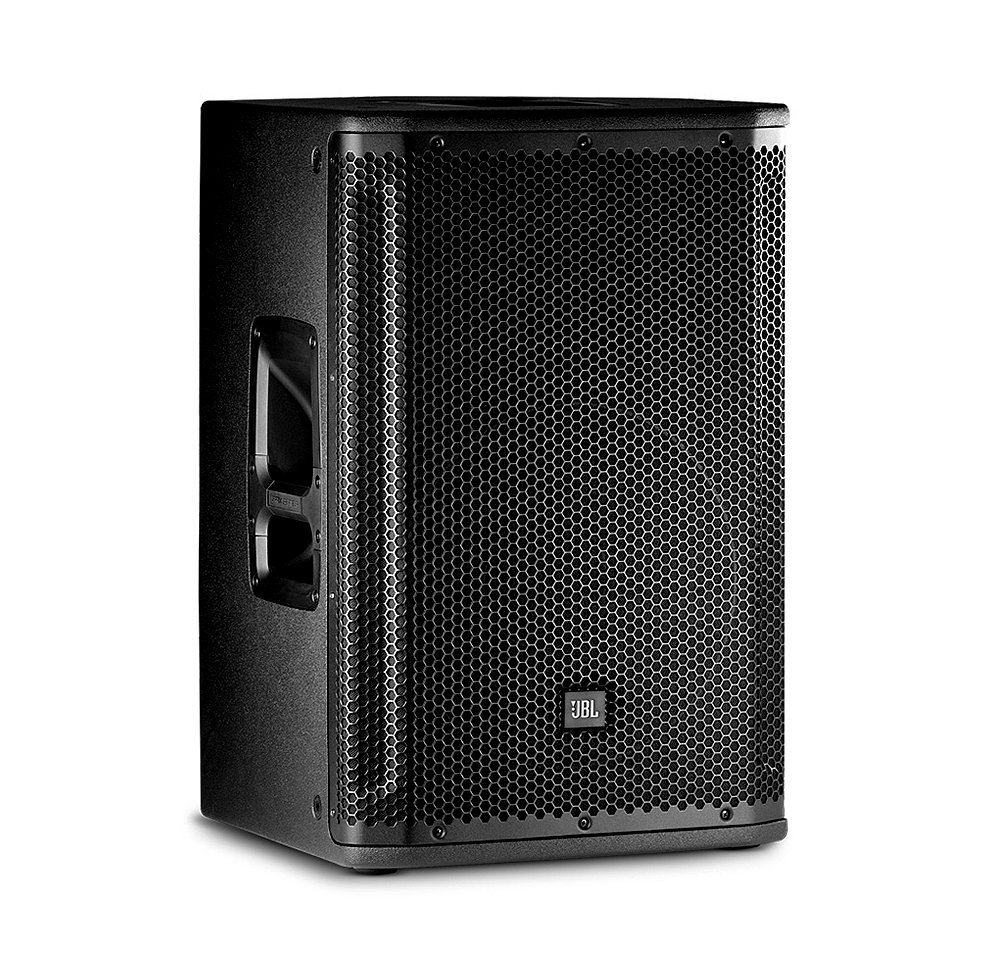

Two-way full range speaker with a 15" woofer
SRX815 is a two-way full range speaker with a 15" woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD.
Applications
Live performance systems
Mobile and fixed DJ systems
Sound system rental and tour
Permanent installations
Features
Premium JBL TransducersRugged, versatile enclosuresTunings available for Crown amps and dbx signal processorsFully supported in Audio ArchitectPower Handling: 3200W Peak, 1600W Program, 800W ContinuousFrequency Range: 41Hz-20kHzFrequency Response: 56Hz-20kHzMax SPL: 130dB (Peak)Coverage Pattern: 90 x 50Amplification options: Passive/Bi-Amp
Specifications
System Type: Passive 15", two-way, bass-reflex
Maximum SPL Output: 124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB): 41hz - 20khz
Frequency Response (-3 dB): 56hz - 20khz
Sensitivity: 95dB
System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance: 8 Ohm

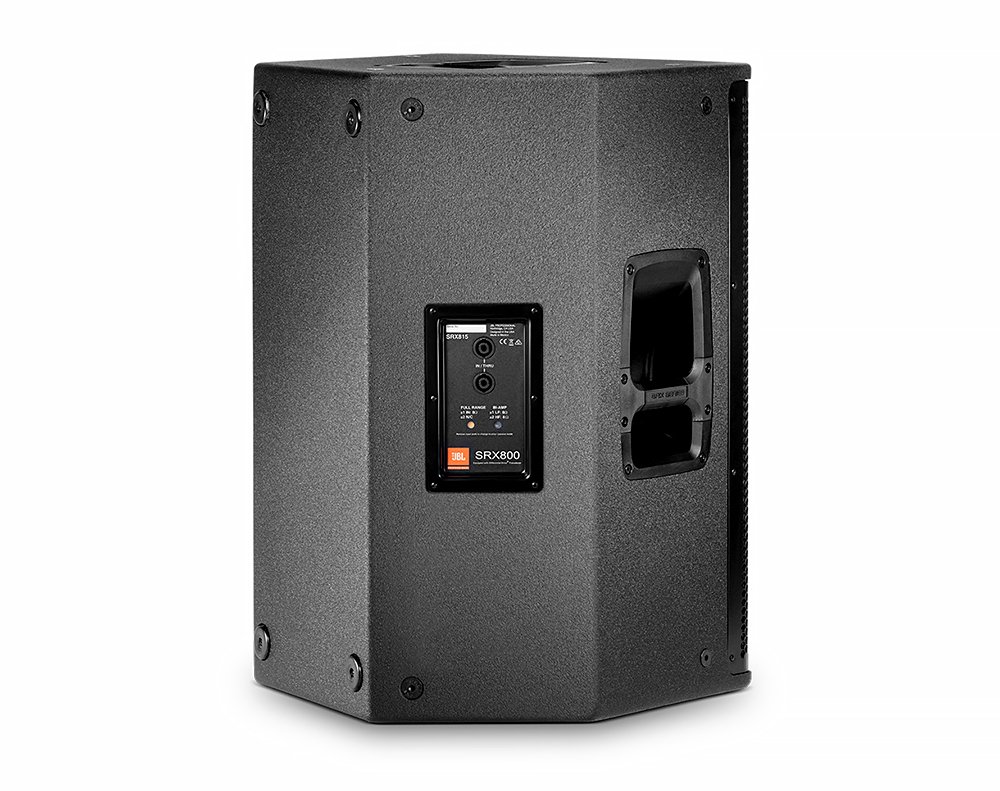

Inputs: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes: Passive/Bi-Amp

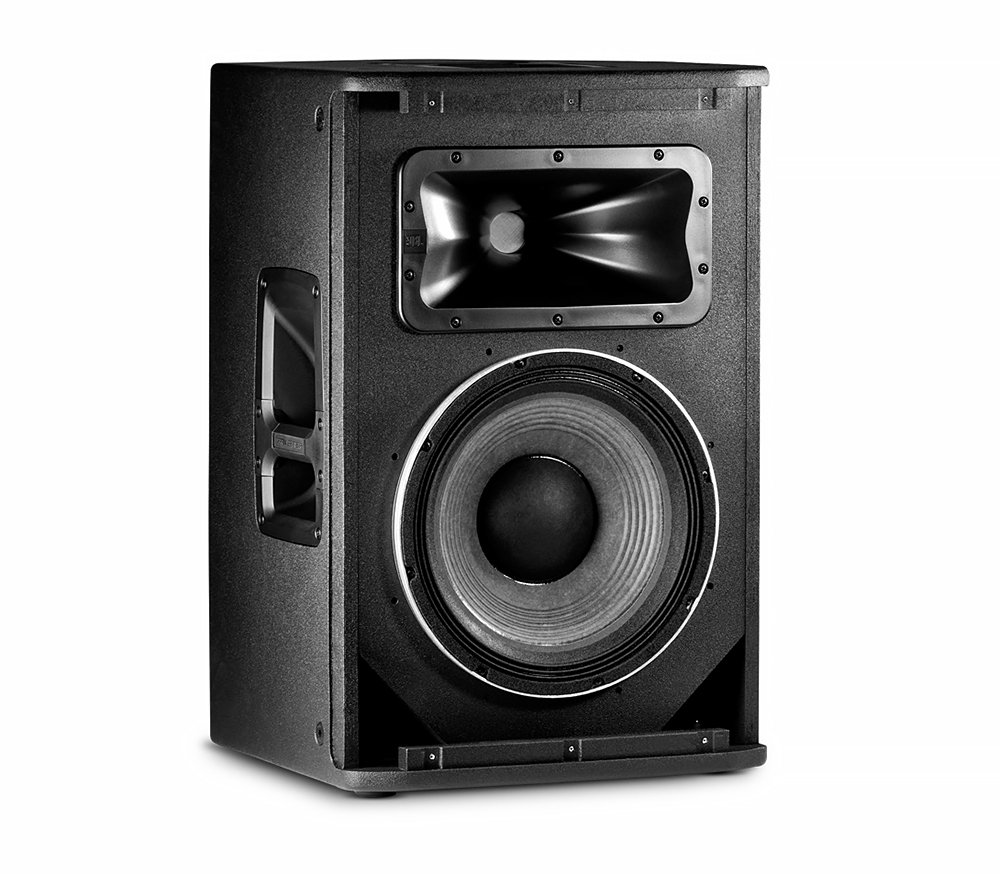

LF Driver: 2275H
HF Driver: 2432H
Coverage Pattern: 90 x 50
Crossover Frequency: 1.9khz
Enclosure: 18mm Duraflex coated plywood

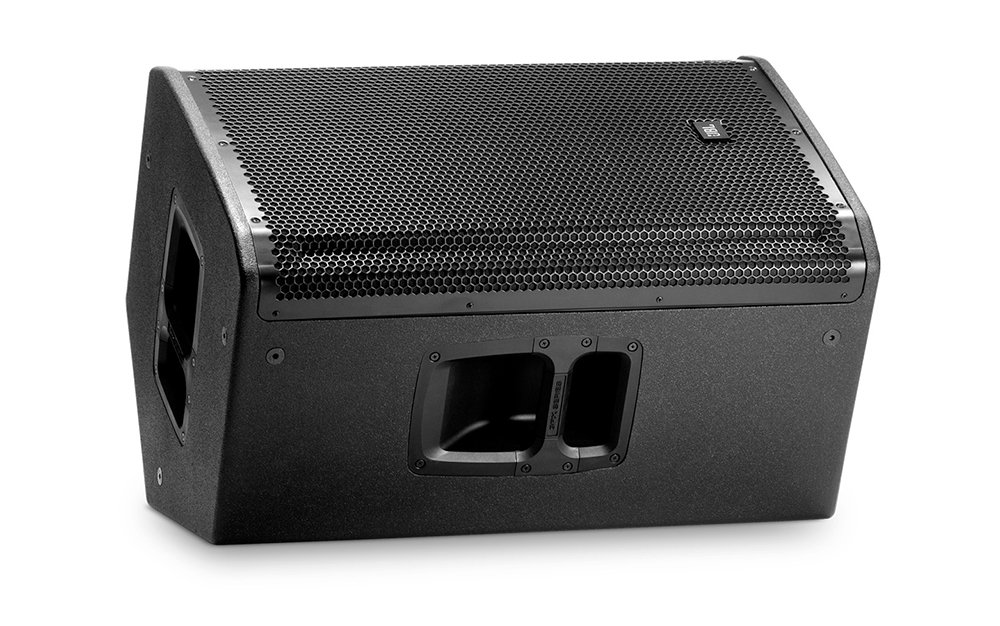

Monitor Angle: 50
Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points

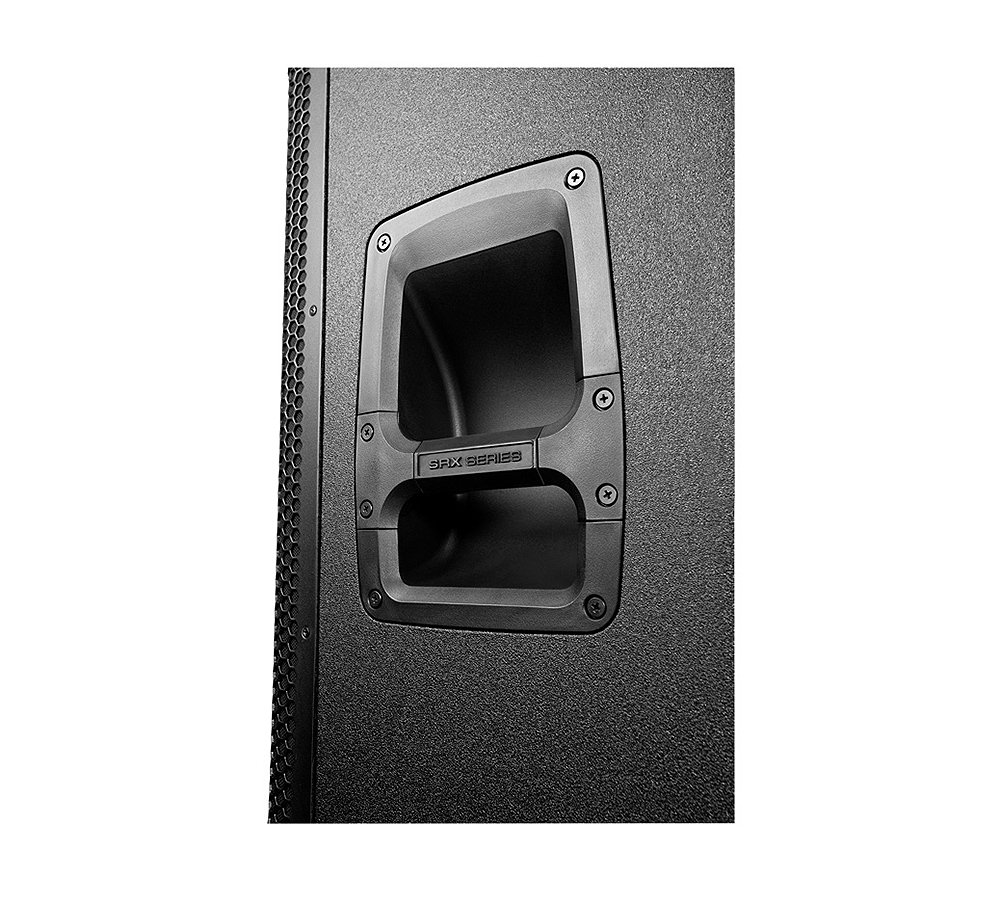

Handles: 3
Finish: Obsidian Duraflex? finish
Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D): 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in
