JBL PRX-ONE-NA

UPC/EAN #691991034800 MPN #PRX-ONE-NA

$2499.99

Save 19.9%, MSRP $3120.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

All-in-one powered column PA with mixer and DSP

The JBL PRX ONE all-in-one powered column PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control.

Enjoy unmatched power and performance in a sleek, compact package: PRX ONE delivers a stunning 130db max SPL, with consistent front-to-back throw, thanks to its custom-engineered 12-tweeter column array featuring JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt (peak) amplifier.

Dial in great sound fast, with fewer pieces of gear, using PRX ONE's full suite of professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack technology featuring AFS Pro Automatic Feedback Suppression. Connect microphones, instruments, mobile devices and wireless rigs using PRX ONE's versatile I/Os (featuring dedicated phantom power and Hi-Z inputs and pro-grade Neutrik connectors) and sophisticated Bluetooth 5.0 features. Work faster and easier with an intuitive Soundcraft-designed dual-mode digital mixer that can be set to general mix functions or channel-strip control, all controllable via app or a built-in color LCD.

PRX ONE is ideal for DJs, musicians, entertainment venues, corporate presenters, rental companies and houses of worship. It's the perfect solution for anyone who demands best-in-class power, acoustic performance, creative control and connectivity in a stylish, full-featured column PA that's ideal for both installed and portable applications.

Features

Vertical array of 12 2.5-inch drivers delivers consistent, even HF response from the front of the room to the back

Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response

JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage

Wide, 130 (H) x 30 (V) dispersion pattern delivers consistent coverage across the audience area

Sophisticated crossover management and HF/LF coupling allow for more natural low-end response and smooth, uniform response across the entire frequency range

12-inch bass-reflex woofer extends low-end response to 35 Hz

2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes

Four high-efficiency, low-noise microphone preamps maintain constant bandwidth at any gain level

130 dB max SPL

Integrated 7-channel digital mixer with dual-operating mode gives users full control of their input faders or individual channel controls like bass, mid, treble and effects sends.

Powerful Lexicon effects engine with delay, reverb chorus, echo and sub synth, with presets for easy setup

Triple Tier DSP control offers multi-level user experiences based on knowledge level

dbx DriveRack Inside technology features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control

One-touch ducking by Soundcraft ensures speech is always heard

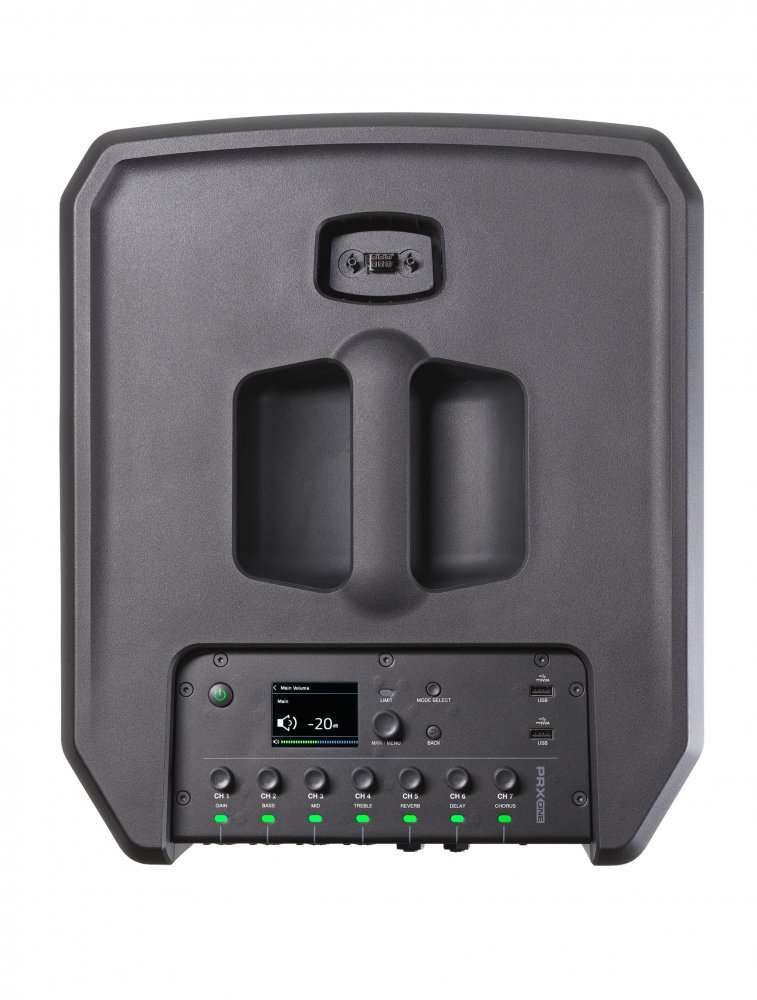

Simple, intuitive full-color LCD screen provides easy access to all PRX ONE functions

8 user presets instantly optimize system sound

Robust audio connectivity: I/Os include 4 XLR Combo, 2 Hi-Z, 1 1/8-inch/BT audio and 1 XLR Pass Thru

2 USB 2.0 ports charge devices and power AKG wireless systems (with optional JBL adapter cable)

Two channels of true +48V phantom power expand microphone support

Bluetooth 5.0 connectivity allows remote system control of up to 10 units using the JBL Pro Connect app

Full app control using JBL Pro Connect

Rugged enclosures withstand the rigors of the road

Optional bracket and adapter allow array to be wall or truss-mounted independently of subwoofer for permanent installations

Computer-modeled ComfortGrip handle simplifies transport

Included nylon carrying bag for array

Attractive, discreet form factor

Weight: 55.65 lbs (25.7 kg)

Specifications

System Type: Powered Column PA Speaker
Woofer Size: 12"
Tweeter Size: 2.5"
Tweeter Count: 12
Max SPL: 130dB
Freq Range -10: 35-20kHz
Freq Range -3: 40-20kHz
Hor Dispersion: 130
Vert Dispersion: 30
Power Rating: 2000W Peak, 1000W RMS
AC power input: 300W 100-230V AC 50-60Hz
Input Impedance:
4k? balanced Combo, 4k? balanced Combo
2M? balanced Hi-Z Jack2M? balanced Hi-Z Jack
10k? 3.5mm single ended 2 channel.10k? 3.5mm single ended 2 channel.
Crossover Frequency: 260Hz
I/O: 4 XLR Combo Jacks, 2 1/4" Hi-Z, 1 1/8"/BT Summed, 1 XLR Pass Through
Cabinet: PP
Net Weight: 25.7 kg (56.6 lbs)
Gross Weight: 31.75 kg (69.9 lbs)
Dimensions (H x W x D): 850 mm x 482 mm x 647 mm (33.4 in x 18.9 in x 25.4 in)
