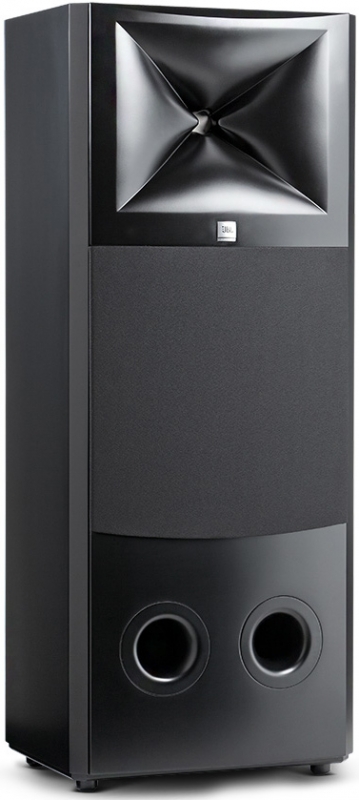

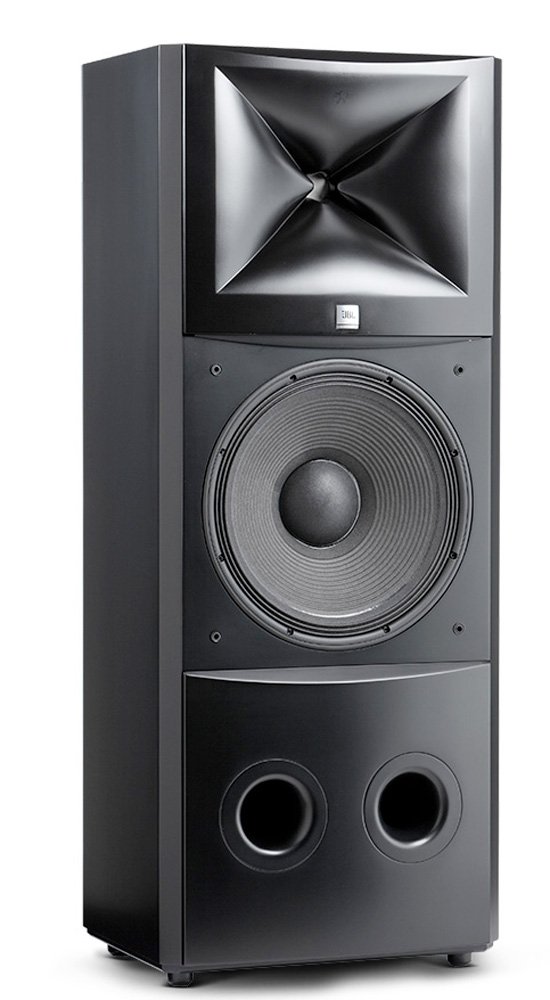

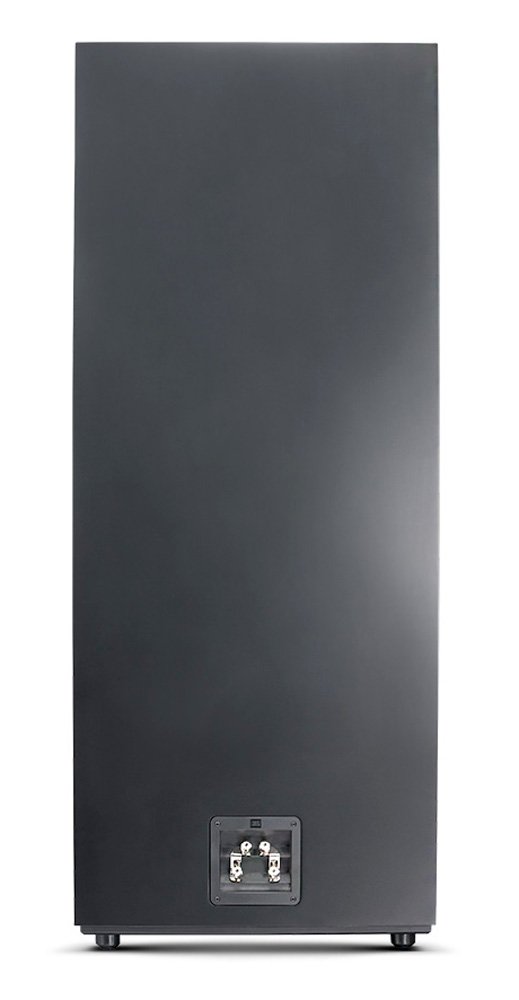

JBL M2 Master Reference
UPC/EAN #50036904483
MPN #M2
$10499.00
Save 19.2%, MSRP $13000.00
2-Way Floor Standing or Soffit Mountable Master Reference Monitor
Addressing the growing need for high dynamic range and reference-monitor accuracy in a broad range of studios, JBL has developed the M2 Master Reference Monitor: A Free-Standing, 2-Way System that can be placed in any environment to provide an exceptionally accurate monitoring experience. Leveraging a new generation of JBL high-output, ultra-low distortion transducers, the M2 provides in-room frequency response of 20 Hz to 40 kHz, and an extraordinary 123 dB maximum SPL to meet the demanding music, cinema and broadcast production requirements for impactful dynamic range.
Features
The Ultimate High Frequency Driver for Critical Reference Monitoring Extended HF Reproduction Smooth Response High Power Handling Measurably Lower Distortion Reduced Power Compression IncreasedDynamic HeadroomExceptional Low Frequency Extension, High Output, Very Low Power Compression, Very Low DistortionImpressive Imaging and Sound Stage, Exceptional High Frequency Detail, Uniform Directivity for Smooth In-Room Response, Patent Pending DesignLSR Linear Spatial Reference DesignSmall Footprint, Extended Bass Performance, Patented Low Frequency Port Design
Specifications
System Format: 2-Way Floor Standing or Soffit MountableHF Driver: D2430K Dual Diaphragm Dual Voice Coil Compression DriverLF Driver: 2216Nd 15 in (381 mm) Differential Drive WooferCrossover Frequency: 800 HzFrequency Response (±3 dB): 20 Hz - 40 kHzCoverage Angle: 120 H x 100 VSensitivity: 92 dBContinuous/Peak SPL@ 1m: 117 dB /123 dB; 108 dB Peak SPL @ 8mThe System Requires: One Crown iTech 5000HD power amp for each speaker, or One Crown iTech 3x3500HD power amp for two (2) speakers.Amplifier Power Rating: 1,200 Watts into 8 ohmsInput Connectors: Spring TerminalsEnclosure: 25 mm (1 in) MDFFinish: Satin Black LacquerIncluded: Removable ABS Grille with Black UL Compliant FabricDimensions (w x h x d): 508mm x 1256mm x 355.6mm (20in x 49.5in x 14in)Net Weight (each): 58.5 kg (129 lb)Maximum Peak SPL: 123 dBMaximum Continuous SPL: 117 dB
