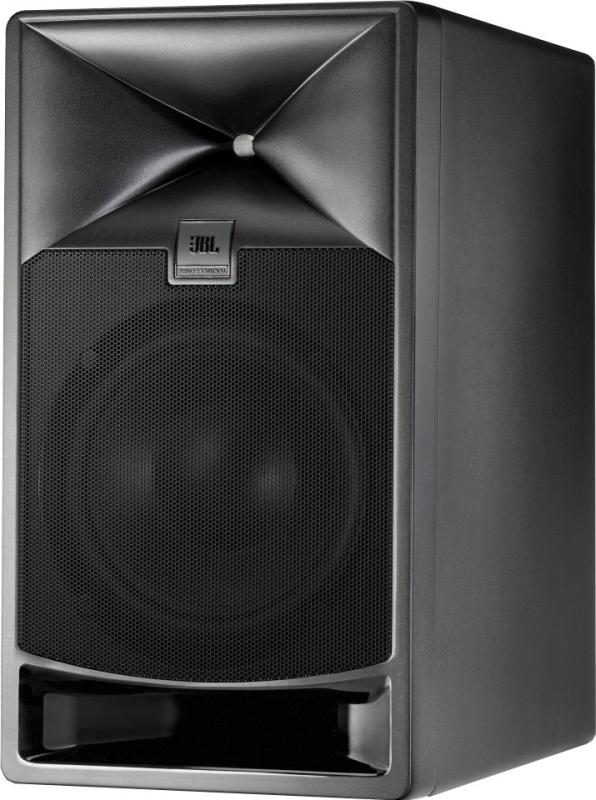

8" Master Reference Monitor. Next Generation Systems for Post and Broadcast Production in Control Rooms and Trucks.
The first in JBL's new 7 Series line, the 705i and 708i models answer the call for next generation multi-channel monitoring in post rooms, broadcast facilities and trucks. Leveraging patented technologies developed for our flagship M2 Master Reference Monitor, 7 Series Studio Monitors deliver detailed imaging, extended frequency response and remarkable output from compact enclosures. Centrally amplified and tuned, and easily installed, 705i and 708i Studio Monitors are the heart of an elegant, scalable system for broadcast and post facilities working in immersive audio formats.
Next Generation Systems for Post and Broadcast Production in Control Rooms and TrucksNext Generation Driver TechnologyPatent Pending Image Control WaveguideCompact, Install Friendly Enclosures

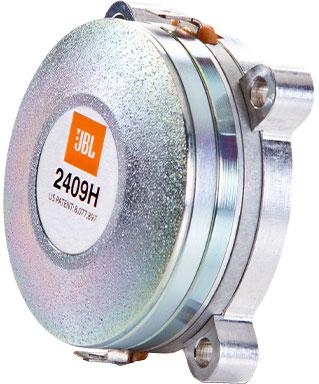

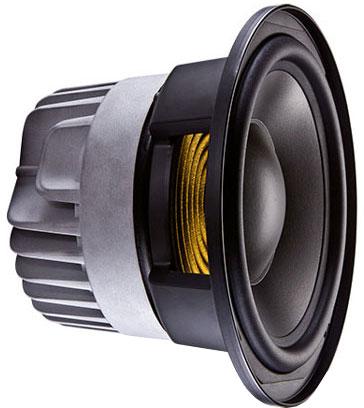

Frequency Response : -1.5 dB @ 45Hz - 23kHzFrequency Range : 35Hz - 36 kHzMax SPL : (80 Hz - 20 kHz) >108 dB SPL / 1mMaximum Peak SPL : (80 Hz - 20 kHz) >114 dB SPL / 1mHF Driver : 2409HLF Driver : 728GDividing NetworkTransition Frequency : 1.7 kHzInput Types : Phoenix Terminals accept 12 gauge speaker wireDimensions (HxWxD) : 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)Weight Each : 25.2 lb (11.5 kg)Enclosure : Birch plywood reinforced for mountingMounting : Top, bottom and rear mounting points. 4-hole mounting pattern
