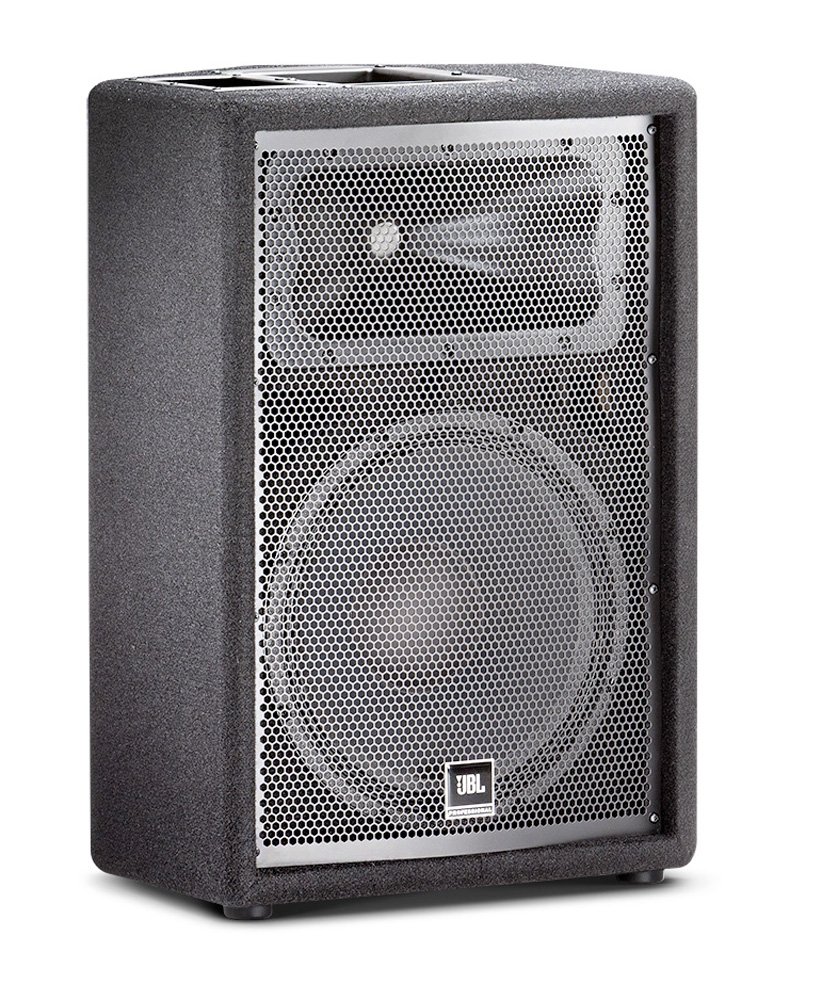

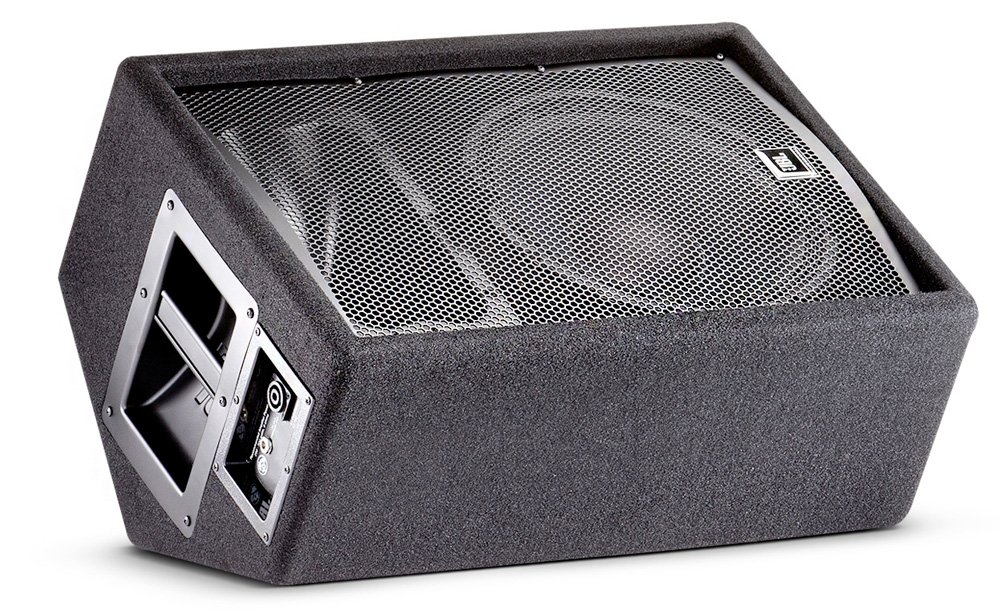

500w 12" Two-Way Stage Monitor Loudspeaker system



The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.
  • JBL 12 in low frequency driver with a 64 mm (2.5 in)
  • diameter edgewound ribbon voice coil which provides
  • more cross-sectional wire area in the voice coil gap than
  • round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in) polymer diaphragm
  • compression driver improves high frequency
  • performance as well as system reliability.
  • The advanced network topology crossover design shapes
  • frequency response and delivers "coherent summation"
  • in the crossover region.
  • High-voltage capacitors and inductors with massive cores
  • and heavy gauge wire enable the crossover network to
  • handle high power without saturating.
  • Progressive Transition high frequency waveguide provides
  • superior coverage control, reduced distortion, and smoother
  • frequency response.
  • The rugged, acoustically superior enclosure is constructed
  • from 19 mm (.75 in) MDF (Medium Density Fiberboard) using
  • advanced adhesives and mechanical fastener technology for
  • extreme durability and improved low-frequency performance.
  • SonicGuard protects the high frequency driver from excess
  • power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects
  • components from damage.
  • Dual-angle pole-mount socket allows the speaker to tilt
  • 10for more uniform audience coverage.
  • Power Rating: 250 W / 1000 W
    Frequency Range (-10dB): 60 Hz - 20 kHz
    Frequency Response (±3 dB): 80 Hz - 18 kHz
    Sensitivity (@1m): 98 dB SPL (1w/1m)
    Nominal Impedance: 8 ohms
    Recommended Amplifier Power: 250 W to 500 W into 8 ohms
    Maximum SPL (1m): 128 dB
    Nominal Dispersion: 90º x 50º
    Crossover Frequency: 2.1 kHz
    Dimensions (H x W x D): 584 mm x 399 mm x 325 mm (23 in x 15.7 in x 12.8 in)
    Weight: 19.5 kg (43 lb)
    HF Driver: JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition? Waveguide
    LF Driver JBL M112-8
    Inputs: Neutrik Speakon NL-4 (x1); .25 inTS phone jack (x1); parallel
    Enclosure: MDF (Medium Density Fiberboard) covered in black carpet.
