UPC/EAN #810514001406     MPN #ISOACCBRACXT6

$579.00

Financing available
Free shipping in Canada. Conditions

Specially crafted to enhance the compatibility of the new Focal Trio6 with immersive systems

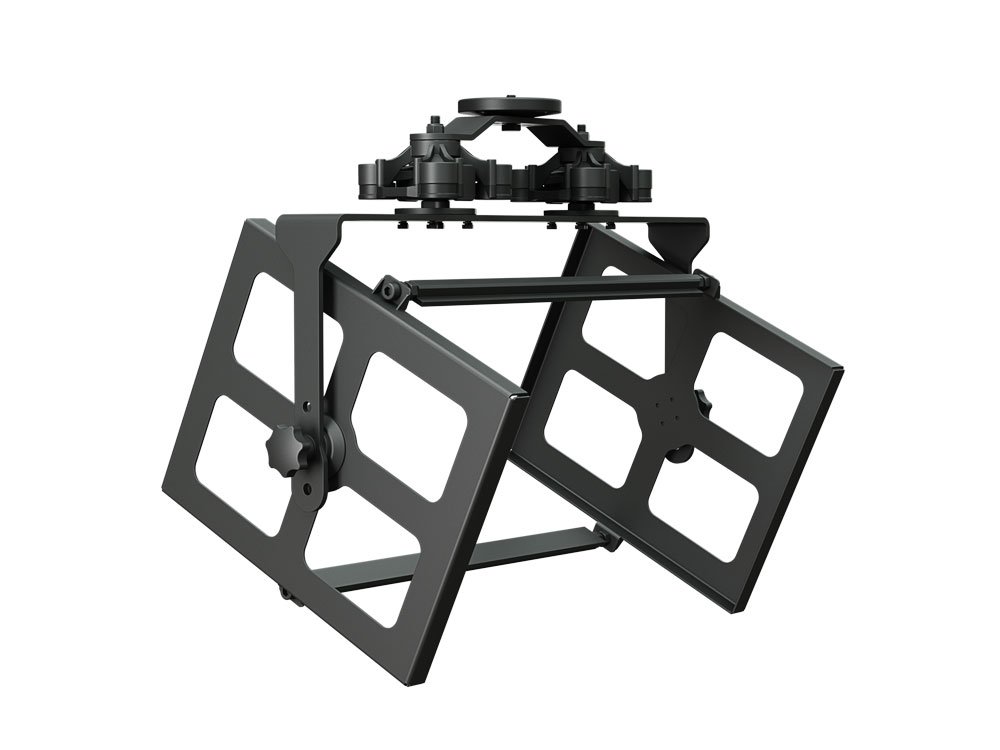

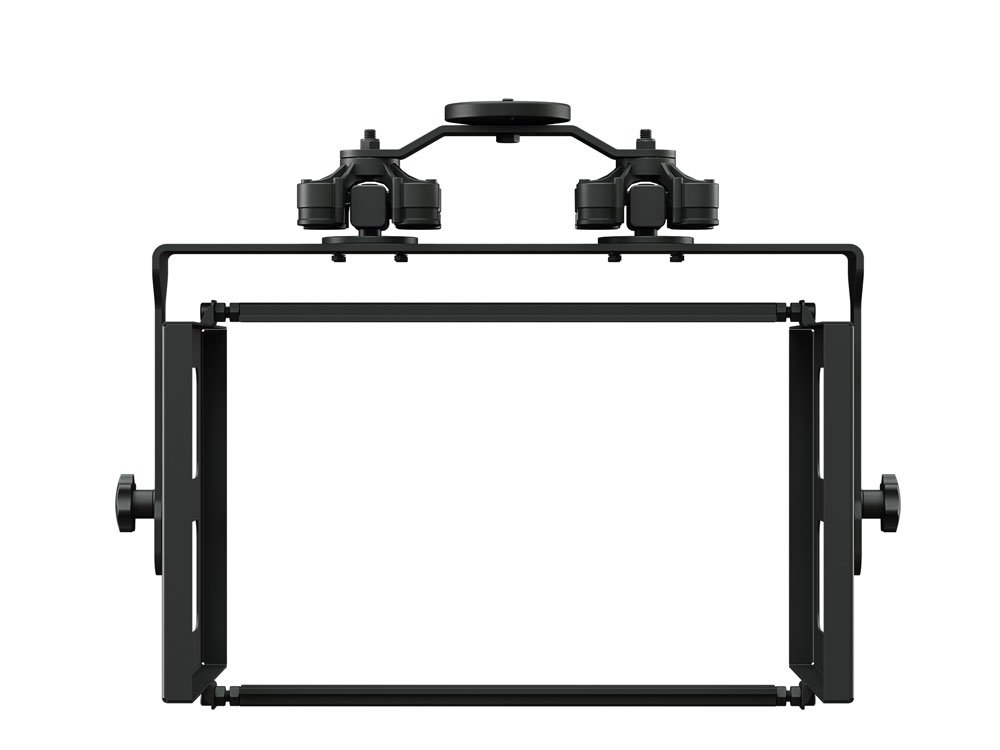

The X-Bracket end plates connect to the Trio6 speaker and hold it firmly in place. Foam tape is applied to the inner surfaces to protect the speaker. Corner sections and a Pivot ring are welded in place.

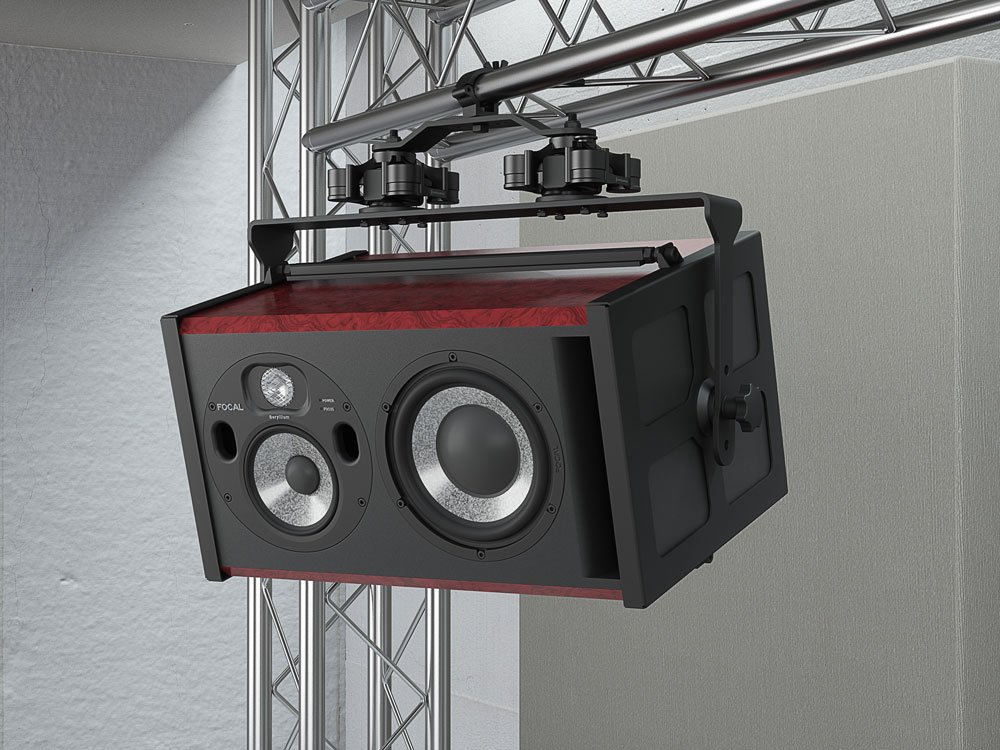

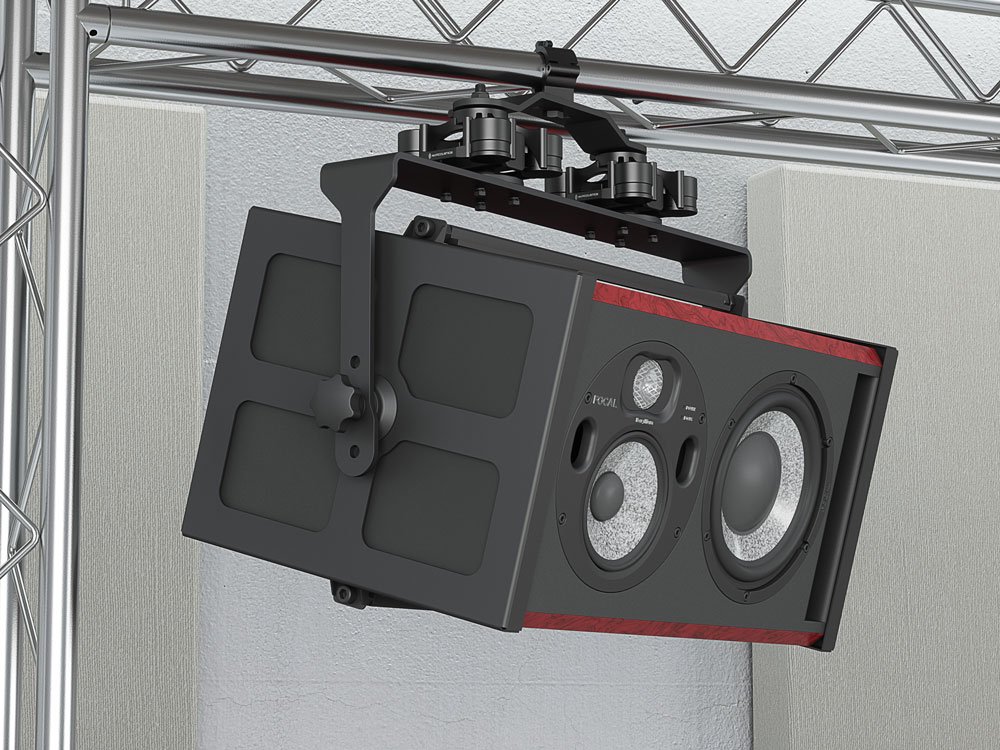

Connected to the end-plates, a U-shaped assembly (included) and two V-120 isolators (not included) allow for the installation of Trio6 monitors, in a suspended manner. Tightening knobs allow downward tilt adjustment.
Also included with the X-Bracket, a metal connector secures the two V120 isolators together, to the chosen support structure (truss or ceiling plate) - additional IsoAcoustics mounts may be required, depending on the support structure (e.g. Truss Clamp for truss structures).
Product Dimensions & Weight :
Width: 672mm x Depth: 370mm x Height: 505mm (26,46 x 14,57 x 19,88 inches), 8.1 kg (17,86 lbs)

Box Dimensions & Weight :
625 x 460 x 120mm (24,61 x 18,11 x 4,72 inches), 9.7 kg (21,38 lbs)


Please note that the two V120 isolators are not included with the X-Bracket and must be acquired separately (two units per X-Bracket unit).
