Imersiv D-1
MPN #D-1
$15335.00
Économisez 8.5%, Prix suggéré $16760.00
Stereo multi-path DAC with HDR-A architecture, delivering 28-bit usable dynamic range, 168 dB linearity, and ultra-low -146 dBu noise for unmatched audio purity.

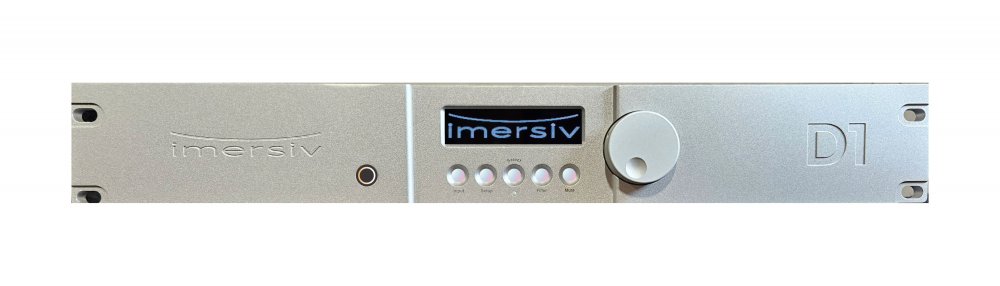

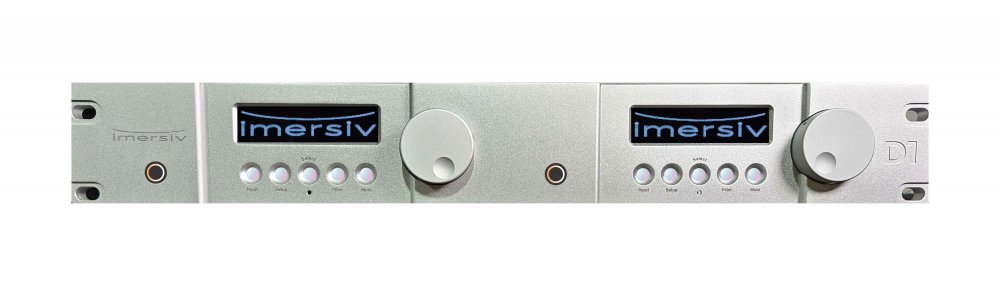

The imersiv D-1 is a revolutionary stereo digital-to-analog converter that delivers 28 bits of usable dynamic range, 168 dB of linearity, and an ultra-low -146 dBu (40 nV) self-noise floor. Representing a true paradigm shift in audio design, the D-1 is 100x (40 dB) quieter and more accurate than today's finest DACs, setting a new benchmark in professional conversion.
At the heart of the D-1 is HDR-A (High Dynamic Range Audio) - a multi-path architecture inspired by HDR photography. Just as stacked exposures expand photographic detail, HDR-A stacks multiple audio paths to unlock unprecedented clarity, resolution, and headroom. The result is astonishing purity at the quietest levels and effortless realism across the full spectrum, preserving the spatial cues and timbral detail that define lifelike sound.
Perfected over more than a decade of R&D and validated by Grammy-winning engineers and film composers, the D-1 has been hailed as "a revelation," "like switching from 35mm to IMAX," and "the new industry standard." With +22 dBu of headroom, vanishingly low distortion, and aerospace-grade design, the D-1 is built to serve the most demanding applications in mastering, classical and film scoring, immersive music, and high-fidelity playback.
Caractéristiques
Stereo multi-path digital-to-analog converter with HDR-A architectureDelivers 28-bits usable dynamic range and 168 dB linearityUltra-low broadband self-noise of -146 dBu (40 nV)Multi-path HDR-A audio processing for dramatically improved low-level clarity and headroom+22 dBu (10 V) ISO-free headroom without increasing noise floorPrecision level control: 0.1 dB or 1.0 dB steps over a 154 dB rangeManual channel alignment to 0.01 dBSupports PCM up to 32-bit / 384 kHz and DSD (1x, 2x, 4x)Inputs: USB-B, AES XLR, 3x SPDIF BNC, Toslink, optional DanteOutputs: XLR differential balanced, +22 dBu max at 1.8 ohm source impedanceSix selectable digital filter variationsBuilt-in polarity flip (180 degree) and mute (output relay)OLED display (256x64) with front-panel input, setup, filter, and mute controlsIR remote with 27 functions (2 AA batteries included)Headphone output: 32"600 ohm, 2.8 W maxPower: 90"240 V, 50"60 Hz, 15 W nominalRugged chassis: 8.6" W - 16.3" D - 3.2" H, weight 7.4 lbs (3.4 kg)Supplied with power adapter, IEC cable, remote, BNC-to-RCA adapters, and quick start guide
Spécifications
Audio Performance
Dynamic Range: 168 dB (28 bits)Linearity: 168 dBSignal to Noise Ratio: 168 dBTotal Harmonic Distortion plus Noise at 1kHz (22kHz BW): 0 point 0002 percent at plus 22 dBuTotal Harmonic Distortion plus Noise at 20kHz (80kHz BW): 0 point 0005 percent at plus 22 dBuSelf Noise (20Hz to 22kHz bandwidth): minus 146 dBu unweightedFrequency Response: 20Hz to 20kHz plus or minus 0 point 1 dBCrosstalk: Better than minus 120 dB at 1kHzHeadphone Output: Supports 32 ohm to 600 ohm headphones, Max Output Power-2 point 8 watts, Max DC Offset-20 microvolts (quiescent)
Input and Output
Supported Input Format: PCM-32kHz to 384kHz, up to 32 bits, DSD-1xDSD, 2xDSD, 4xDSD, Dante (optional)Digital Inputs: 1x USB B (32 bit), 1x AES XLR, 3x SPDIF BNC, 1x Toslink, 1x Dante (optional module)Analog Outputs (XLR Balanced): Max Output-plus 22 dBu (9 point 75 Vrms), Source Impedance-1 point 8 ohms quiescent
Control and Interface
Level Control: Step Resolution-0 point 1 dB or 1 dB (selectable), Total Range-154 dB (minus 130 to plus 24 dB)Manual Alignment: Channel Match-To 0 point 01 dB Left and RightDisplay: Monochrome OLED, 256 x 64 resolutionFront Panel Controls: Input, Setup, Select, Filter, MuteRemote Control: Infrared, 27 functions, 4 reserved, Requires 2 AA batteries
Chassis and Power
Power Requirements: Input Voltage-90 to 240 volts AC, 50 to 60 Hz, Power Consumption-15 watts nominalDimensions (Chassis Only): W-8 point 6 inches (218 mm), D-16 point 3 inches (414 mm), H-3 point 2 inches (81 mm)Weight: Unit-7 pounds 7 ounces (3 point 4 kilograms)Shipping Dimensions: 21 x 21 x 8 inches (53 x 53 x 20 cm)Shipping Weight: 12 pounds (5 point 5 kilograms)
Included Accessories
Power AdapterIEC Power CableRemote Control2 AA BatteriesQuick Start Guide3 BNC to RCA Adapters
Environmental
Operating Temperature: 32 to 104 degrees Fahrenheit (0 to 40 degrees Celsius)Humidity: 35 percent to 85 percent, non-condensing
