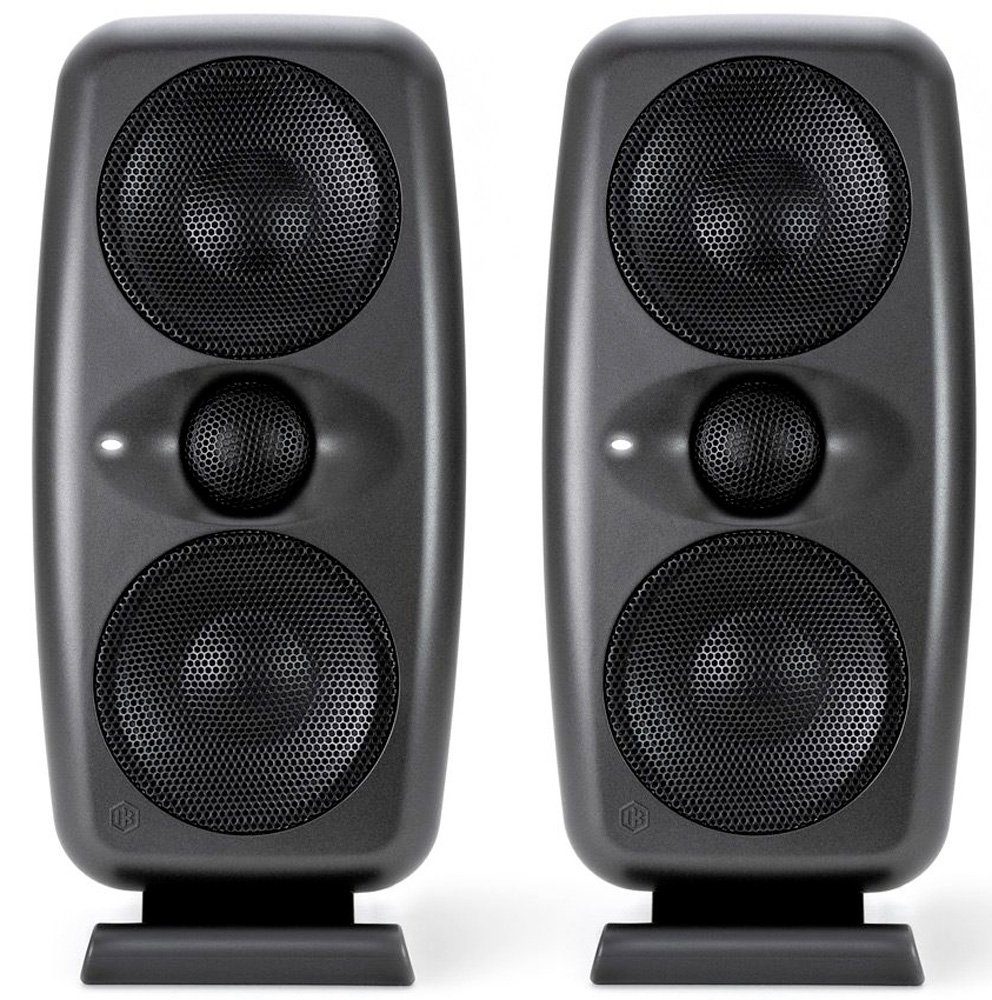

Ik Multimedia iLoud MTM mkII (Pair, Black)
UPC/EAN #8025813945036
MPN #IK iLoud MTM mkII BLK Pair
Compact, high-resolution studio monitor
iLoud MTM MKII offers sonic perfection and volume levels previously unavailable in this class of reference monitors. Maintaining its iconic form, MTM MKII sports more efficient drivers and twice the processing power under the hood to turn any space into the ideal mixing and mastering setup.
Enjoy clear, neutral sound with the deep, controlled low end you'd expect from a speaker twice the size and linear phase response that rivals speakers twice the price. Its MTM design and precise time alignment make hours of fatigue-free listening possible while minimizing acoustic interactions, which is ideal for desktop use.
With advanced ARC auto-calibration, MTM MKII guarantees improved acoustic performance in any space in seconds. Connected to a computer, award-winning X-MONITOR software adds deep customization and breathtaking emulations of 20+ top studio monitors and other playback systems to A/B your mixes instantly for the perfect translation.
MTM MKII is like having an entire suite of precision-tuned monitoring tools.
iLoud MTM MKII overview
Incredible volume and ultra-flat response
iLoud physics-defying bass down to 36 Hz
Improved linear phase offers even more clarity
Perfectly time-aligned to reduce ear fatigue
MTM design minimizes troublesome reflections
Built-in ARC self-calibration adjusts to any space
Deeply customizable with X-MONITOR software

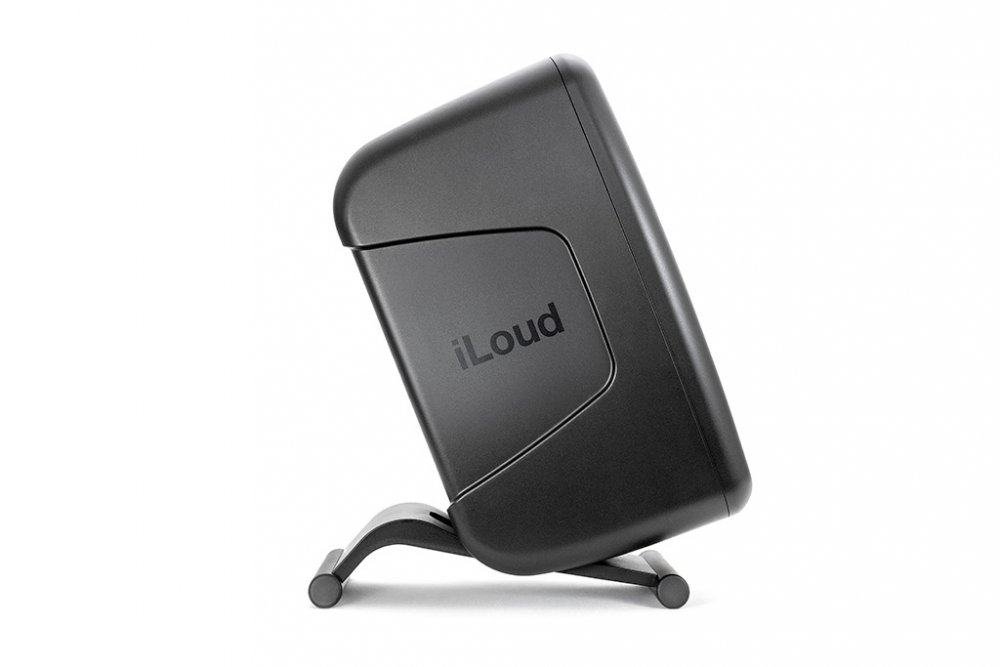

Tilting base plus threaded insert for mounting
Features
Ultra-flat frequency responsePhase-coherent soundExtended, controlled low endSuperior sound at short distancesPerfect for desks and small spacesARC self-calibration adjusts to any roomDSP-controlled for superior performance100W RMS total power per speaker40 Hz to 24 kHz frequency response0° - 20° tilting stand for ideal positioning
Specifications
Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
LF drivers: 2 x 3.5" composite cellulose fiber, custom-made mid-woofers
HF drivers: 1" low distortion, back chambered silk dome tweeter
Acoustic design: DSP tuned bass reflex
Number of amps per speaker: 2
Amplifiers type: High efficiency Class-D
Total power: 100 W RMS
LF power: 70 W RMS
HF power: 30 W RMS
Crossover type: Digital, linear phase
Crossover frequency: 2.8 kHz
Frequency response: 48 Hz to 28 kHz ± 2 dB, 36 Hz to 32 kHz @ -10 dB
Phase response: System remains coherent within +/- 15° from 200 Hz to 20 kHz
Sensitivity at +4 dBu: -6 dBu signal generates a 94 dB SPL @ 1 m
Sensitivity at -10 dBV: -17 dBu signal generates a 94 dB SPL @ 1 m
Continuous, long term SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 97 dB
Peak SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 110.5 dB
Peak SPL, half space, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 112.5 dB
Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
LF extension switch: Sets -3 dB point of the frequency response at 40, 50, 60 or 80 Hz (LFE)
LF switch: Low shelf, +2 dB or -3 dB from 100 Hz down
HF switch: High shelf, +2 dB or -3 dB from 8 kHz up
Desk switch: -4 dB at 160 Hz and +1 dB at 1.8 kHz
Calibration: Fully automatic and built-in digital calibration
Full DSP control
Total Latency (TOF): 2.44 ms

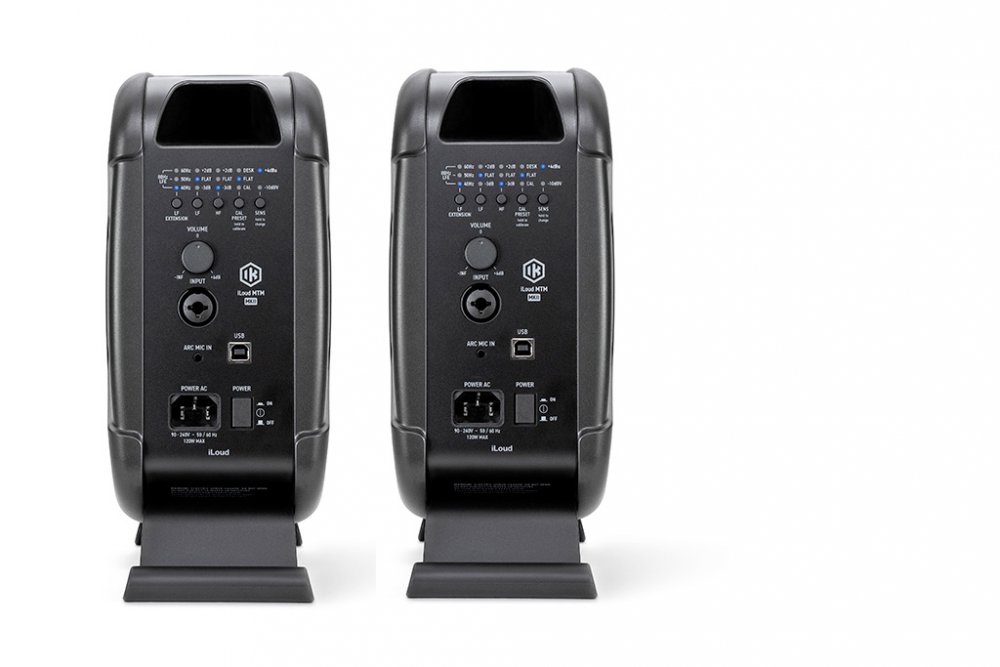

Connectors: 1x combo XLR-1/4" TRS balanced input; 1/8" TS ARC microphone input, 1 x USB type-B, AC POWER socket
Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 120 W max power consumption
Dimensions
Size: 264 mm/10.39" x 160 mm/6.3" x 130 mm/5.12"
Weight (per speaker): 2, 5 kg/5.5 lbs (speaker + foot)
Package includes
1 x iLoud MTM MKII monitor
Power cord
Tilting stand
Horizontal support feet
Locking key
System Requirements
X-MONITOR
Mac (64-bits)
Minimal: Intel Core 2 Duo Processor, 4 GB of RAM, macOS 10.15 or newer.
Windows (64-bits)
Minimal: Intel Core 2 Duo or AMD Athlon 64 X2 Processor, 4 GB of RAM, Windows 10 (64 bit) or newer.
Requires an OpenGL 2 compatible graphics adapter.
