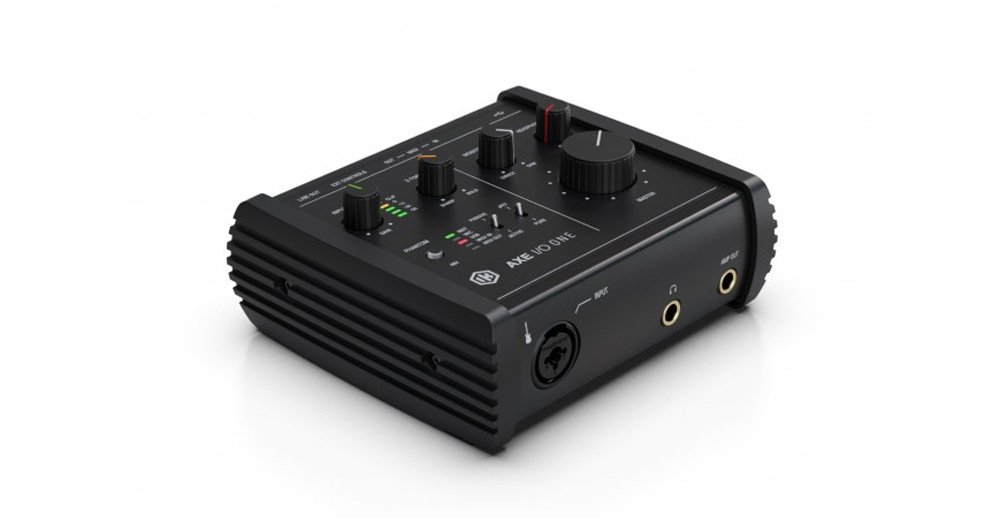

Ik Multimedia AXE I/O One

UPC/EAN #8025813906037 MPN #IK AXE I/O ONE

$169.99

Be the first to write a review

Free shipping in Canada. Conditions

1-in/3-out USB audio interface with mic/line/instrument input and included plugins

A do-it-all interface for guitar and bass players
AXE I/O ONE sports IK's exclusive Z-TONE impedance control, JFET input for warm, tube-like sound, dedicated Amp Out for practicing or reamping, pickup selector, external volume/wah pedal or switch controller inputs, and includes award-winning AmpliTube and TONEX software with access to thousands of presets, amp and pedal rig tones on ToneNET for a complete digital studio rig that sounds like a pro.

Features

1-in/3-out USB audio interface that captures everything in ONE device

Z-TONE impedance-adapting input enhances your pickups' true sound

PURE and JFET input stages go instantly from modern to vintage tones

ACTIVE/PASSIVE pickup selector optimizes the signal flow from the start

Class-A mic preamp offers transparent sound for acoustic guitar and vocals

High-definition 24-bit/192 kHz audio conversion keeps your signal crystal clear

Amp Out with ground loop interrupter is perfect for simplified Tone Modeling

MIDI Input and Output to connect keyboards, E-drum kits, controllers and more

2 programmable inputs for expression pedals and/or single/double switches

Includes AmpliTube 5 SE, TONEX SE and Ableton Live Lite

Specifications

Common
AD and DA resolution: 24-bit
Sampling rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
Host connection: USB Type-C socket

Mic Input
Configuration: Class-A discrete differential microphone preamp, pin 2 hot
Input impedance: 4 kOhms differential
Input level, min gain: 0 dBFS is obtained with a +7 dBu signal at the XLR input
Input level, max gain: 0 dBFS is obtained with a -42 dBu signal at the XLR input
Frequency response: From 9 Hz to 45 kHz within 0.5 dB (96 kHz sample rate)
Dynamic range: 108 dB(A)
THD+N: -104 dB(A) at -10 dBFS

Instrument Input
Configuration: Multiple topology instrument preamp
Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
Input impedance, ACTIVE mode: 10 kOhms
Input level, min gain: 0 dBFS is obtained with a +10.5 dBu signal at the TS input
Input level, max gain: 0 dBFS is obtained with a -19 dBu signal at the TS input
Frequency response: From 11 Hz to 45 kHz within 0.5 dB (96 kHz sample rate)
Dynamic range: 108 dB(A)
THD, PURE mode: 0.0018 % (-1 dBFS input)
THD, JFET mode: 0.42 %

Line Outputs 1-2 (Monitor)
Configuration: Electronically balanced
Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
Output level: 0 dBFS corresponds to +12.8 dBu
Frequency response: From 10 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
Dynamic range: 108 dB(A)
THD @ -1 dBFS: 0.0015%
THD+N: -95 dB(A) at -1 dBFS
Channels 1-2 crosstalk: 109 dB(A)

Output 3 (Amp output)
Configuration: Unbalanced, floating, with selectable ground lift
Output impedance: 75 Ohms
Output level: 0 dBFS corresponds to -3.5 dBu
Frequency response: From 20 Hz to 44 kHz within 1 dB (96 kHz sample rate)
Dynamic range: 108 dB(A)
THD+N: -93 dB(A)

Headphone Output
Output impedance: Virtually ideal source (zero Ohms) until clipping
Maximum output level: +5 dBu into 50 Ohms load (approx 40 mW)
Frequency response: From 1 Hz to 44 kHz within 1 dB (96 kHz sample rate)
Dynamic range: 108 dB(A)

Package includes

AXE I/O One

USB A-Type to USB C-Type connection cable (1.5m/4.32ft)

Dimensions
Size: 13cm/5.12" x 14.5cm/5.71" x 5.2cm/2.04"
Weight: 0.37kg/0.8lb

Compatibility
Computers
64-bit application. Requires a 64 bit CPU and Operating System.

Mac (64-bits)
Minimal: macOS 10.15 or later. One free USB port.

Windows (64-bits)
Minimal: Windows 10 or later. One free USB port.
