UPC/EAN #8025813900035     MPN #IK ARC Studio

$389.99

Free shipping in Canada. Conditions

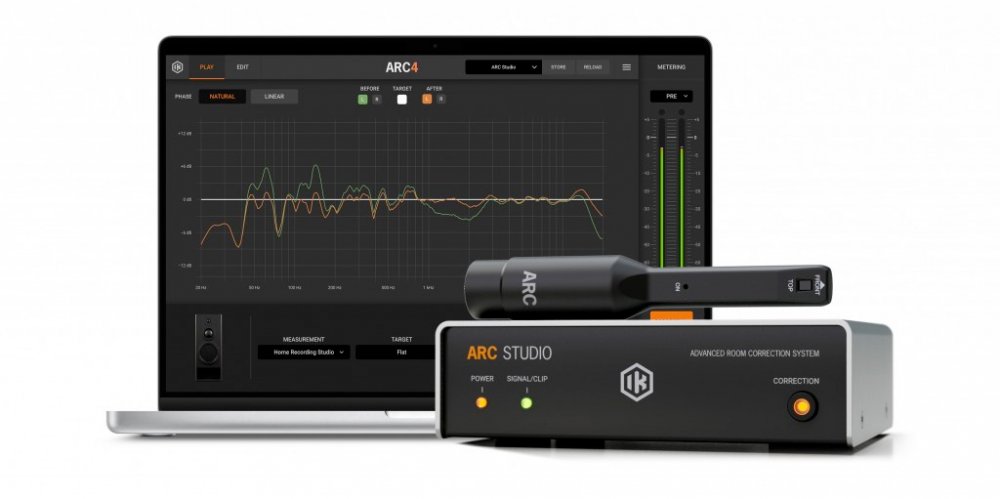

ARC Studio advanced room correction system combines a standalone correction processor, new ARC 4 measurement software and a room analysis microphone



Upgrade any studio monitors instantly with the first out-of-the-box acoustic room correction system that anyone can afford. ARC Studio combines a standalone correction processor, new ARC 4 measurement software and a room analysis microphone.

There's a reason all today's top-tier studio monitors are adding active room correction " it supercharges their performance and ensures mixes translate flawlessly. ARC Studio offers this same massive boost in performance and accuracy to any monitor in every studio.

For the first time in the recording industry, an affordable hardware processor can be used as a correction and calibration system for any type of studio " be it home, project or professional " without the limitations of a software-only system.
Audio
AD and DA converters: AKM Velvet Sound
Audio conversion and internal processing sampling rate: 96 kHz
Audio conversion resolution: 24-bit
Internal processing resolution: 32-bit float
Frequency Response: 2 Hz - 45.0 kHz (- 2.0 dB)
Dynamic Range: 120 dB (A-weighted)
THD (20-20 kHz): 0.00035%
THD+N (1 kHz@-1dBFS): -107 dB
Channel Crosstalk (1 kHz): -122.5 dB
Max Phase Deviation: +7 20Hz, +16 22kHz
Input Impedance (balanced): 20 kOhm
Output Impedance (balanced): 50 Ohm
Maximum output level: +17 dBu

Latency
Natural Phase mode: 1.4 ms
Linear Phase mode: 42 ms

Power
Powered by included Power Supply Unit

Dimensions
Size: 14.4cm / 5.6" x 12cm / 4.72" x 4.5cm / 1.77"
Weight: 465g / 1,03lb

Package includes

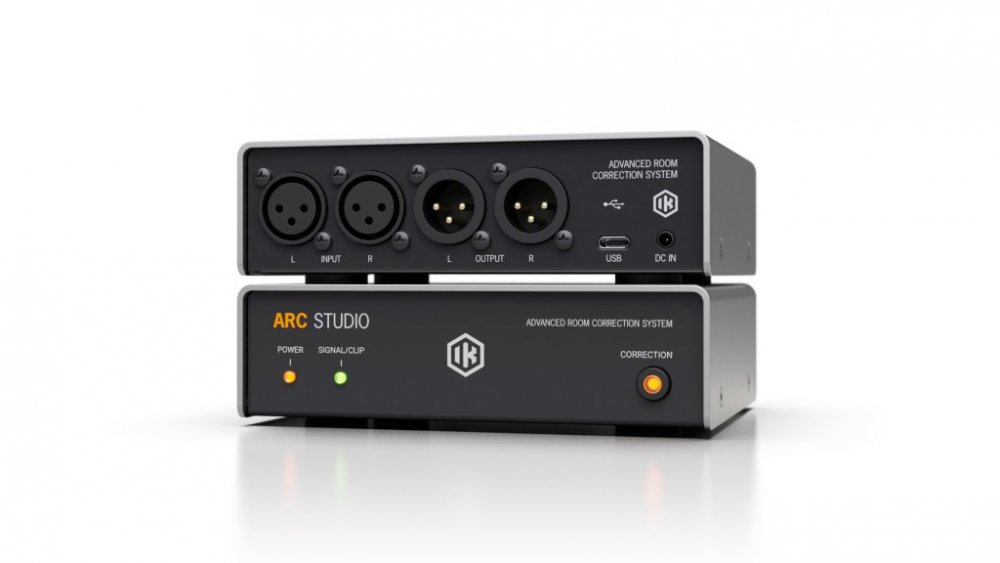

ARC Studio room-correction processor

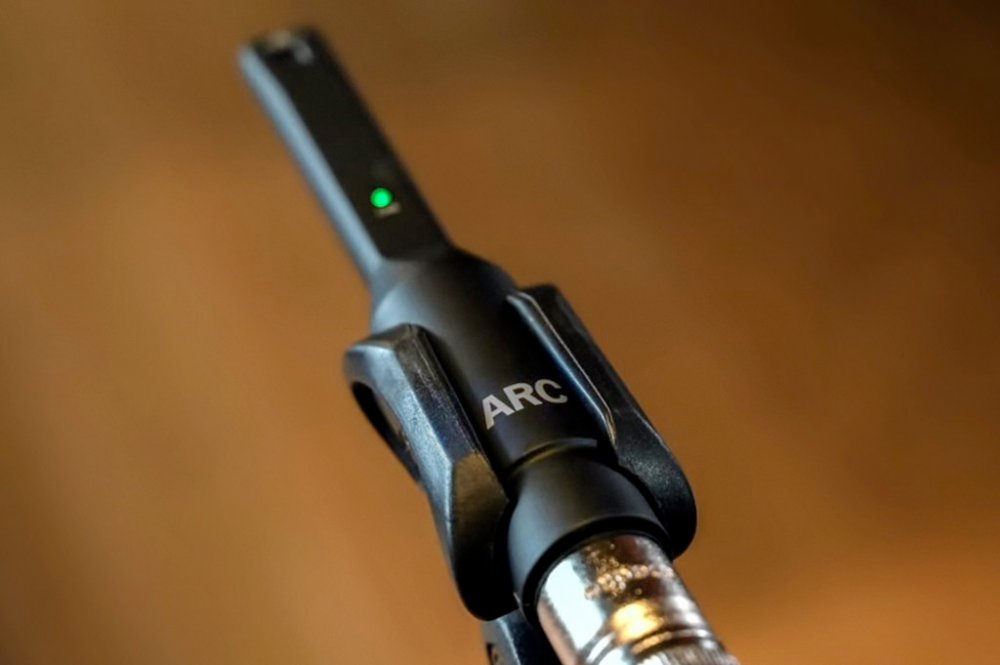

ARC Measurement Microphone (depending on the version)
ARC Measurement Microphone Clamp (depending on the version)
USB C-Type to USB A-Type cable (1.5 m / 4.92')
Power Supply Unit
Registration card

Free included app/software
ARC Studio comes with the following free bonus content

System Requirements
  • Mac (64-bits)
  • Minimal: Apple M1 or Intel Core i5 Processor, 4 GB of RAM, macOS 10.15 or newer (macOS 11 or newer required for Apple Silicon Processors).
  • Supported Plug-in formats: Audio Units, VST 2, VST 3, AAX.
  • Works with any audio interface with a phantom powered XLR microphone input and a pair of outputs for monitoring.
  • 44.1 kHz or 48 kHz sampling rate is required for the measurement process.
  • One free USB port required.
