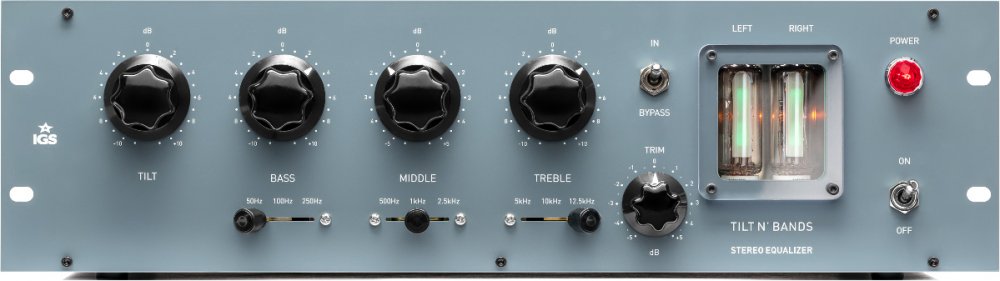

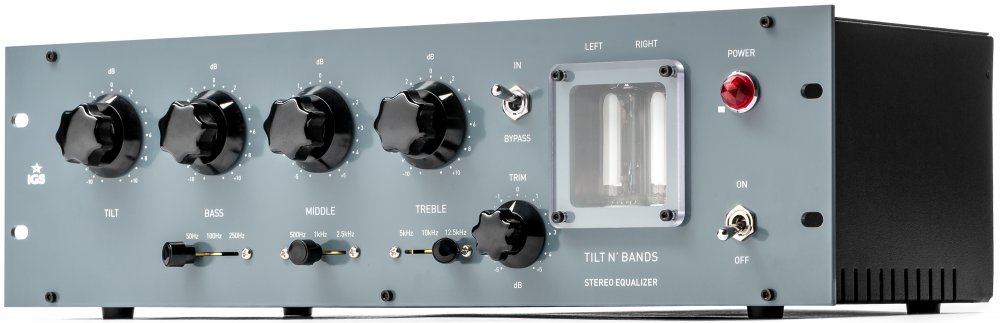

Stereo parametric equalizer featuring a vintage design and vintage circuit



Full tube mastering equalizer

Once when I was a little boy, I heard my uncle's equalizer which he built into his stereo. The sound was incredible. I still remember it to this day. Three potentiometers gave it a sound that I'd never heard before. I couldn't stop listening to the sound that his compact player made.

My uncle Chris
I asked my uncle for the diagram and he drew it with a pencil on a piece of paper. I quickly learned the scheme by heart and as an electronic engineer amateur, I repeatedly build the hi-fi amplifiers using the scheme. The EQ sounded implausible each time.

After many years
After many years I decided to make a studio device based on my uncle's scheme. I improved the arrangement by adding a transformer balanced tube stage. The Tilt turned out to be a cool addition too. This vintage circuit is very useful in any mastering application. I hope, you will feel the vibe of my uncle's old radio equalizer.

improved the arrangement
After many years I decided to make a studio device based on my uncle's scheme. I improved the arrangement by adding a transformer balanced tube stage. The Tilt turned out to be a cool addition too. This vintage circuit is very useful in any mastering application. I hope, you will feel the vibe of my uncle's old radio equalizer.
  • Q factor 0.5 to 5
  • Hard wire bypass yes
  • Input Impedance (balanced) 10k Ohm
  • Output Impedance (balanced) 600 Ohm
  • Operating Level +4 dBu nominal
  • Max output level @ 1.6% THD +37 dBv; +26dBv @ 20 Hz
  • Noise Level -120dB
  • Frequency response 20 Hz to 40 kHz, +/-0.3dB
  • THD+N 0.08% (1KHz @ +4 dBu)
  • Crosstalk >120dB
  • Voltage 230/115
  • Power consumption 64W
  • Power supply Linear, internal
  • BASIC FEATURES
    Q factor: 0.5 to 5
    Hard wire bypass: yes

    INPUT & OUTPUT
    Input Impedance (balanced): 10k Ohm
    Output Impedance (balanced): 600 Ohm

    LEVELS
    Operating Level: +4 dBu nominal
    Max output level: @ 1.6% THD +37 dBv; +26dBv @ 20 Hz
    Noise Level: -120dB

    BANDWIDTH
    Frequency response: 20 Hz to 40 kHz, +/-0.3dB

    DISTORTION (@ 20 HZ - 20 KHZ)
    THD+N: 0.08% (1KHz @ +4 dBu)
    Crosstalk: >120dB

    FRONT PANEL
    VU Meters: Magic eye

    POWER
    Voltage: 230/115
    Power consumption: 64W
    Power supply: Linear, internal

    PACKING BOX
    Shipping weight: 11kg

    OTHERS
    Used for: Mastering, tracking
    Tube set: 6x6N1P, 2x6E2
