MPN #RB500ME

$1247.00

Financing available
Free shipping in Canada. Conditions

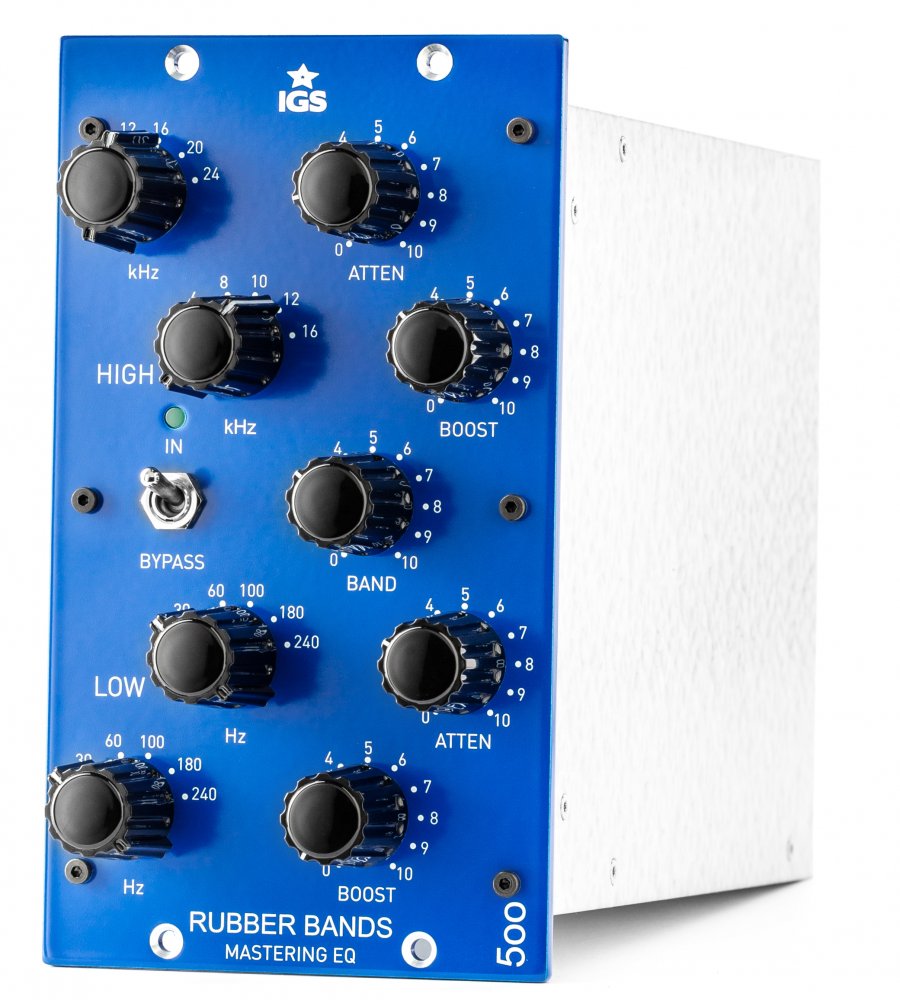

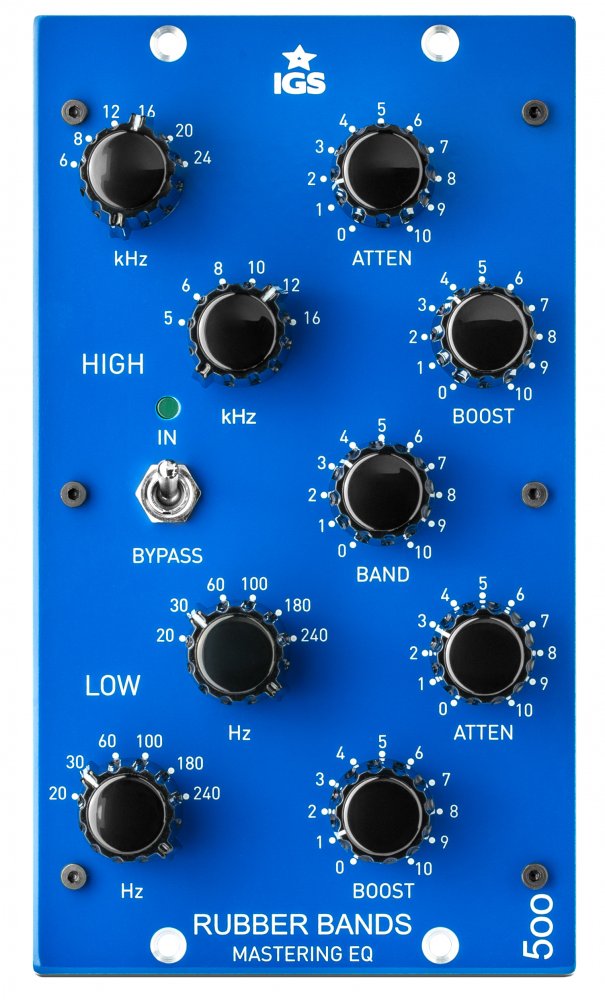

Rubber Bands, passive stereo Pultec style EQ in your 500 series rack



Mastering Edition!

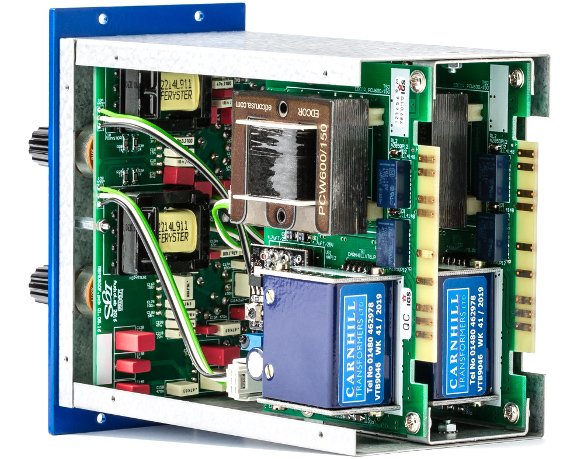

RB500ME is a stereo passive equalizer packed into a double 500-series module. This beast is equipped with transformer balanced inputs (Carnhill) and outputs (Edcor) as well as a class-A driver circuit. Of course the entire filtering section is passive and it mirrors analogue equalizers from the 60s. There is separate frequency selector for low cut and boost sections. Top quality potentiometers and ELMA switches were used to achieve outstanding performance.

The first ever Stereo Pulteq-style EQ in 500 format
The Rubber Bands is a wonderful tool that can add multiple levels of color to any track or mix. The best thing about, it is that you can set it up in various ways, all sounding clearly distinctive and great at the same. This is the device that gives the studio engineer an opportunity to add their own personality to the music.
BASIC FEATURES
Q factor : 0.5 - 4
Boost/Cut Range : +/- 20 dB
Hard wire bypass : Yes
All stepped manipulators : Yes, Frequency selectors

INPUT & OUTPUT
Input Impedance (balanced) : 10k ohm, Carnhill transformer
Output Impedance (balanced) : 600 ohm, Carnhill transformer
Audio transformers : Carnhill on input and output

LEVELS
Operating Level : +4 dBu
Max input level : +20 dBu
Max output level : +22 dBu
Headroom (@ +4dBu) : 18 dB
Noise Level : -99 dBA

BANDWIDTH
Frequency response : 20 Hz to 20k Hz, +/- 0.1 dB

DISTORTION (@ 20 HZ - 20 KHZ)
THD+N : 0.012%
Crosstalk : 75 dB

POWER
Power consumption : 7W

PACKING BOX
Shipping weight : 1.5 kg
