MPN #572 Red Stripe

$1138.00

Financing available
Free shipping in Canada. Conditions

Pure tube preamp in a 500-series module, transformer input and output using Sowter and Edcor transformers, -20 dB interstage Pad, Hi-Z input, low-cut filter, polarity control



In short
572 Red Stripe is a mic/instrument preamp designed in the 500 standard. The module is transformer balanced on input and output using Sowter and Edcor transformers. All regulators on the front panel are stepped switches. Excellent for recording any sources, including line signals from microphones, instruments like guitars or keyboards (Hi-Z input at the front of the unit).

In detail
This is an excellent preamplifier, that can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones. It always provides outstanding results. With one knob gain control (41-stepped) you can push it nicely, but still make sure that you don't overload the next stage of your signal chain. The second stage overloading gives some sweet harmonics vibe. Adds a lot of unique flavour. HiZ input is accessible from the front of unit. Handy!

Getting specific

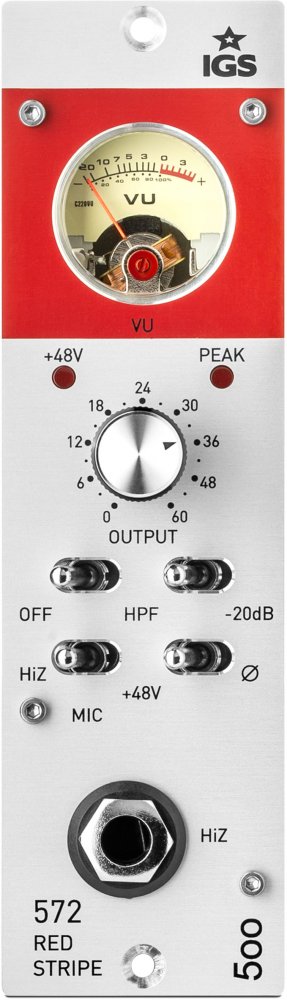

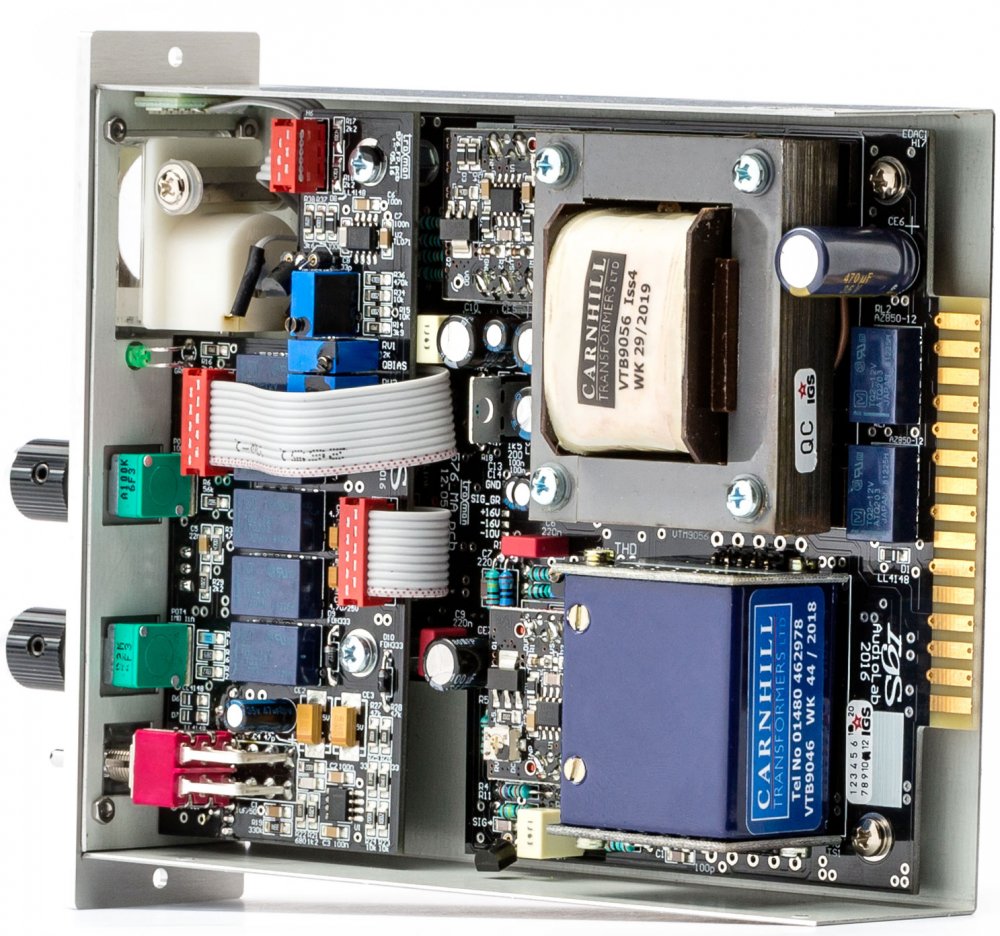

IGS 572 Red Stripe, single channel, pure tube mic preamp in a 500 module, two double-triodes (JJ ECC803S and JJ ECC81), UK made input and American output transformers, -20 dB interstage Pad, polarity control, +48V phantom power, low-cut filter, DI-Input 1/4" TS Jack 1MOhm, max. Input Level: +16 dBu, max. Output Level: +28 dBu, back-lighted analog VU-Meter, +48 and clip LED, Made in Europe.
BASIC FEATURES
Number of slots :1
HPF : OFF, 50 Hz (6dB/oct)

INPUT & OUTPUT
Input Impedance (balanced) : >600 Ohm, Sowter transformer
Input Pad : -20dB
Phantom Power : Yes
Input Pad : -20dB, interstage
Output Impedance (balanced) : 600 Ohm, Edcor USA transformer
Audio transformers : Sowter / Edcor

LEVELS
Operating Level : +4dBu
Max input level : +16dBu
Max output level : +28dBu
Dynamic Range : 117dB
Noise Level : -100 dBA
Max. gain : 64dB

BANDWIDTH
Frequency response : 20Hz - 20kHz, - 1 dB

DISTORTION (@ 20 HZ - 20 KHZ)
THD+N : max 0.5%

POWER
Voltage : Anode: 250VDC
Voltage : +/- 16V DC
Power consumption : 6.5W

PACKING BOX
Dimensions : 78x166x229mm
Shipping weight : 2kg

OTHERS
Used for : Any kind of one channel studio recordings
Tube set : ECC81, ECC81
