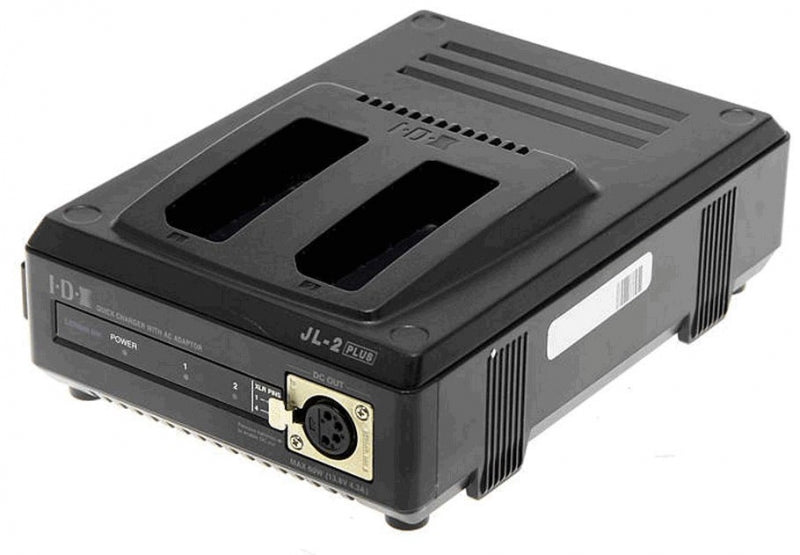

IDX JL-2PLUS
MPN #JL-2PLUS
The IDX JL-2PLUS will sequentially charge Li-ion, Ni-Cd and Ni-Mh NP-style batteries
It will charge the first battery connected to either channel, automatically charging the second battery after the first is fully charged. With the advantage of an integrated 4-pin XLR DC (60W@ 13.8V) power supply, additional equipment such as lighting and other ancillary equipment can also be safely powered when the charge function is not in use.
Features
Sequential(one battery at a time) 2-channel NP-style lithium ion battery chargerIntegrated 60W DC power supply provides 60W XLR output for the camera, lighting and ancillary broadcast devicesJL-2PLUS compatible batteries: All NP Li-ion/Ni-CD/Ni-Mh batteries and all ENDURA V-Mount Li-ion batteries can be charged with a C-NP2E cable adaptor, available separately from IDXInternal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The JL-2PLUS will automatically stop charging should any battery reach an over voltage conditionUniversal AC input voltage for worldwide operation.
Specifications
Input Voltage: AC 100-240V 50/60HzPower Consumption: 140VA Max.Quick Charge Current: Li-ion, 2.3 A, Ni-CD/Ni-MH, 1.9ADC Output: 60W max.Operating Temperature: 32F ~ 104FDimensions: 5.94(W) x 2.76(H) x 8.35(D) inchesWeight: 1.76 lbs approx.
